PS9317 Series

Manufacturer: Renesas Electronics Corporation

Catalog

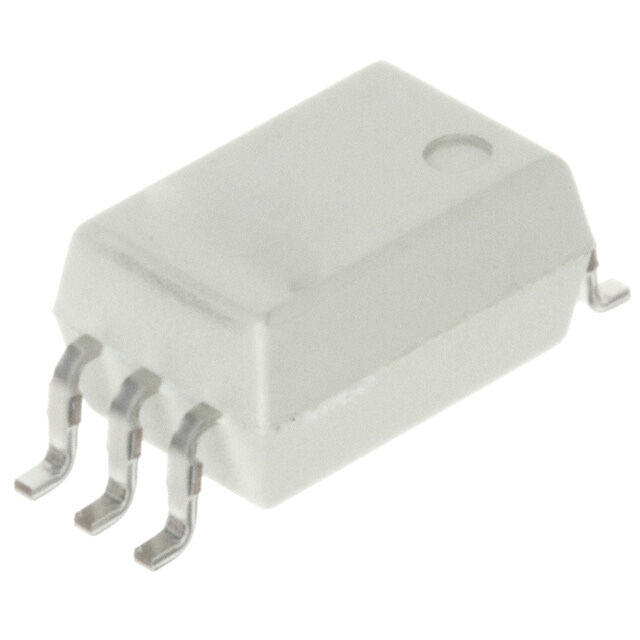

SDIP

Part	Data Rate	Package / Case [y]	Package / Case [y]	Package / Case	Input Type	Current - DC Forward (If) (Max) [Max]	Mounting Type	Supplier Device Package	Common Mode Transient Immunity (Min) [Min]	Inputs - Side 1/Side 2 [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Forward (Vf) (Typ)	Output Type	Number of Channels [custom]	Current - Output / Channel	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - DC Forward (If) (Max)
Renesas Electronics Corporation PS9317L-V-AX	10 Mbps	6.8 mm	0.268 in	6-SOIC	DC	20 mA	Surface Mount	6-SDIP	15 kV/µs	1	75 ns	75 ns	85 °C	-40 C	5.5 V	4.5 V	1.56 V	Open Collector	1	25 mA	5 ns	20 ns
Renesas Electronics Corporation PS9317L-V-E3-AX	10 Mbps	6.8 mm	0.268 in	6-SOIC	DC	20 mA	Surface Mount	6-SDIP Gull Wing	15 kV/µs	1	75 ns	75 ns	85 °C	-40 C	5.5 V	4.5 V	1.56 V	Open Collector	1	25 mA	5 ns	20 ns
Renesas Electronics Corporation PS9317L2-E3-AX	10 Mbps	6.8 mm	0.268 in	6-SOIC	DC		Surface Mount	6-SDIP Gull Wing	15 kV/µs	1	75 ns	75 ns	85 °C	-40 C	5.5 V	4.5 V	1.56 V	Open Collector	1	25 mA	5 ns	20 ns	30 mA
Renesas Electronics Corporation PS9317L-E3-AX	10 Mbps	6.8 mm	0.268 in	6-SOIC	DC	20 mA	Surface Mount	6-SDIP Gull Wing	15 kV/µs	1	75 ns	75 ns	85 °C	-40 C	5.5 V	4.5 V	1.56 V	Open Collector	1	25 mA	5 ns	20 ns
Renesas Electronics Corporation PS9317L-AX	10 Mbps	6.8 mm	0.268 in	6-SOIC	DC		Surface Mount	6-SDIP Gull Wing	15 kV/µs	1	75 ns	75 ns	85 °C	-40 C	5.5 V	4.5 V	1.56 V	Open Collector	1	25 mA	5 ns	20 ns	30 mA
Renesas Electronics Corporation PS9317L2-AX	10 Mbps	6.8 mm	0.268 in	6-SOIC	DC		Surface Mount	6-SDIP Gull Wing	15 kV/µs	1	75 ns	75 ns	85 °C	-40 C	5.5 V	4.5 V	1.56 V	Open Collector	1	25 mA	5 ns	20 ns	30 mA
Renesas Electronics Corporation PS9317L-AX	10 Mbps	6.8 mm	0.268 in	6-SOIC	DC		Surface Mount	6-SDIP Gull Wing	15 kV/µs	1	75 ns	75 ns	85 °C	-40 C	5.5 V	4.5 V	1.56 V	Open Collector	1	25 mA	5 ns	20 ns	30 mA
Renesas Electronics Corporation PS9317L2-V-E3-AX	10 Mbps	6.8 mm	0.268 in	6-SOIC	DC	20 mA	Surface Mount	6-SDIP Gull Wing	15 kV/µs	1	75 ns	75 ns	85 °C	-40 C	5.5 V	4.5 V	1.56 V	Open Collector	1	25 mA	5 ns	20 ns
Renesas Electronics Corporation PS9317L2-E3-AX	10 Mbps	6.8 mm	0.268 in	6-SOIC	DC		Surface Mount	6-SDIP Gull Wing	15 kV/µs	1	75 ns	75 ns	85 °C	-40 C	5.5 V	4.5 V	1.56 V	Open Collector	1	25 mA	5 ns	20 ns	30 mA
