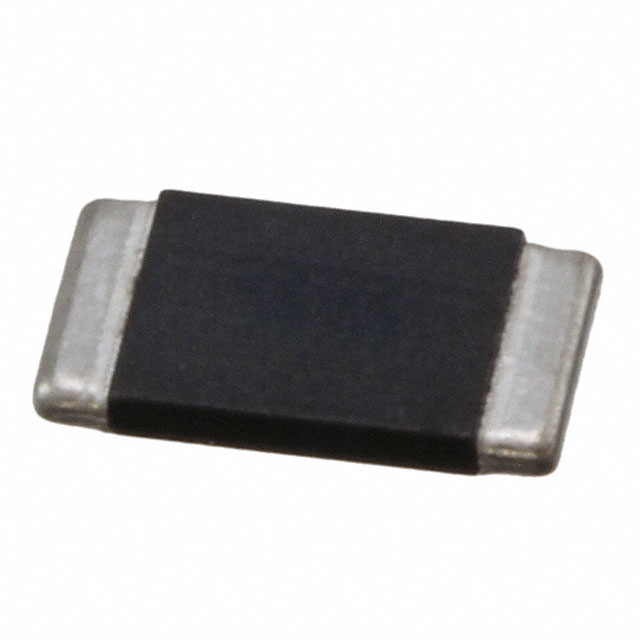

CRE2512 Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES 0.008 OHM 1% 3W 2512
| Part | Ratings | Package / Case | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Tolerance | Features | Composition | Package / Case | Power (Watts) | Temperature Coefficient | Operating Temperature [Max] | Operating Temperature [Min] | Resistance | Number of Terminations [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | AEC-Q200 | 2512 2512 (6432 Metric) | 2512 | 0.035 in | 0.9 mm | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 1 % | Automotive AEC-Q200 Current Sense Moisture Resistant | Metal Element | 6332 Metric | 3 W | 50 ppm/░C | 170 °C | -55 C | 8 mOhms | 2 |
Bourns Inc. | AEC-Q200 | 2512 2512 (6432 Metric) | 2512 | 0.035 in | 0.9 mm | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 1 % | Automotive AEC-Q200 Current Sense Moisture Resistant | Metal Element | 6332 Metric | 3 W | 50 ppm/░C | 170 °C | -55 C | 6 mOhms | 2 |
 Bourns Inc. | AEC-Q200 | 2512 2512 (6432 Metric) | 2512 | 0.035 in | 0.9 mm | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 1 % | Automotive AEC-Q200 Current Sense Moisture Resistant | Metal Element | 6332 Metric | 2 W | 50 ppm/░C | 170 °C | -55 C | 6 mOhms | 2 |
Bourns Inc. | AEC-Q200 | 2512 2512 (6432 Metric) | 2512 | 0.035 in | 0.9 mm | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 1 % | Automotive AEC-Q200 Current Sense Moisture Resistant | Metal Element | 6332 Metric | 2 W | 50 ppm/░C | 170 °C | -55 C | 4 mOhms | 2 |
Bourns Inc. | AEC-Q200 | 2512 2512 (6432 Metric) | 2512 | 0.035 in | 0.9 mm | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 1 % | Automotive AEC-Q200 Current Sense Moisture Resistant | Metal Element | 6332 Metric | 3 W | 50 ppm/░C | 170 °C | -55 C | 2 mOhms | 2 |
Bourns Inc. | AEC-Q200 | 2512 2512 (6432 Metric) | 2512 | 0.035 in | 0.9 mm | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 1 % | Automotive AEC-Q200 Current Sense Moisture Resistant | Metal Element | 6332 Metric | 2 W | 50 ppm/░C | 170 °C | -55 C | 1 mOhms | 2 |
Bourns Inc. | AEC-Q200 | 2512 2512 (6432 Metric) | 2512 | 0.035 in | 0.9 mm | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 1 % | Automotive AEC-Q200 Current Sense Moisture Resistant | Metal Element | 6332 Metric | 2 W | 50 ppm/░C | 170 °C | -55 C | 3 mOhms | 2 |
Bourns Inc. | AEC-Q200 | 2512 2512 (6432 Metric) | 2512 | 0.035 in | 0.9 mm | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 1 % | Automotive AEC-Q200 Current Sense Moisture Resistant | Metal Element | 6332 Metric | 3 W | 50 ppm/░C | 170 °C | -55 C | 1 mOhms | 2 |
 Bourns Inc. | AEC-Q200 | 2512 2512 (6432 Metric) | 2512 | 0.035 in | 0.9 mm | 0.254 in | 6.45 mm | 0.132 " | 3.35 mm | 1 % | Automotive AEC-Q200 Current Sense Moisture Resistant | Metal Element | 6332 Metric | 2 W | 50 ppm/░C | 170 °C | -55 C | 8 mOhms | 2 |
