087568 Series

Manufacturer: Molex

Catalog

CONN RCPT 34POS IDC 28AWG GOLD

Part	Wire Gauge	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Fastening Type	Wire Type	Features	Cable Termination	Row Spacing	Row Spacing	Contact Finish	Color	Contact Type	Pitch [x]	Pitch [x]

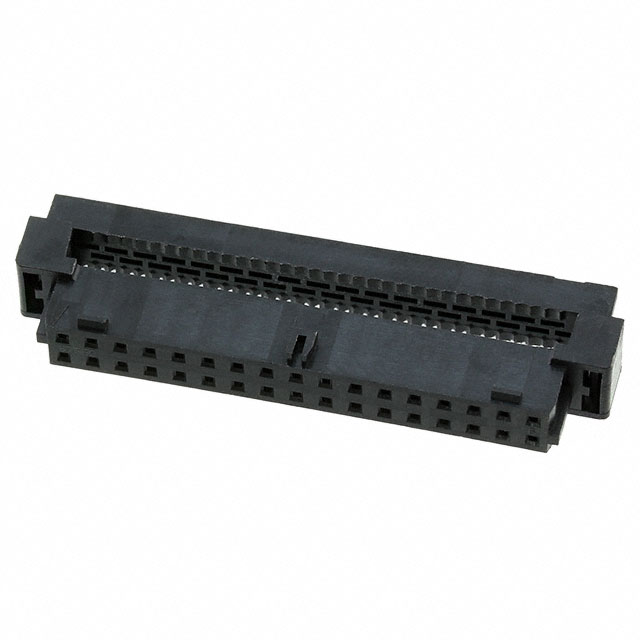

Molex 0875683493	28 AWG	34	Receptacle	15 µin	0.38 µm	Free Hanging (In-Line)	2	Locking Ramp	Ribbon Cable	Feed Through Polarizing Key	IDC	2 mm	0.079 in	Gold	Black	Female Socket	0.079 in	2 mm
Molex 0875683064	28 AWG	30	Receptacle	30 Áin	0.76 Ám	Free Hanging (In-Line)	2		Ribbon Cable	Feed Through Polarizing Key	IDC	2 mm	0.079 in	Gold	Black	Female Socket	0.079 in	2 mm

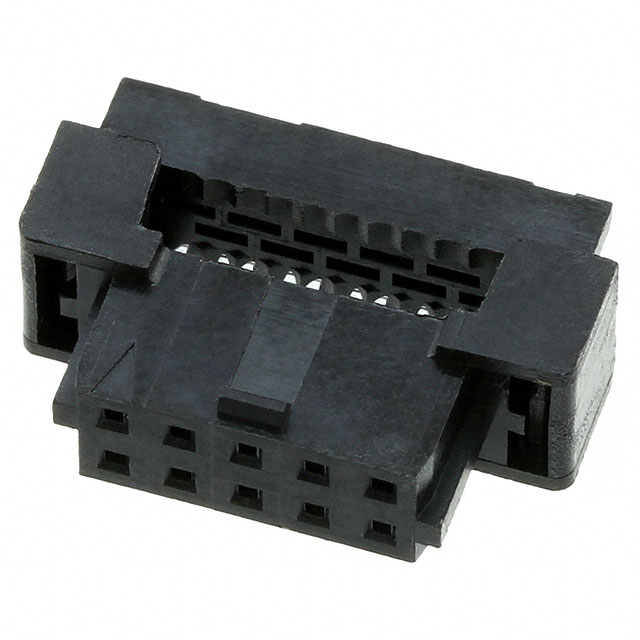

Molex 0875681071	28 AWG	10	Receptacle	15 µin	0.38 µm	Free Hanging (In-Line)	2	Locking Ramp	Ribbon Cable	Feed Through	IDC	2 mm	0.079 in	Gold	Black	Female Socket	0.079 in	2 mm
Molex 0875685043	28 AWG	50	Receptacle	15 µin	0.38 µm	Free Hanging (In-Line)	2		Ribbon Cable	Feed Through Polarizing Key	IDC	2 mm	0.079 in	Gold	Black	Female Socket	0.079 in	2 mm

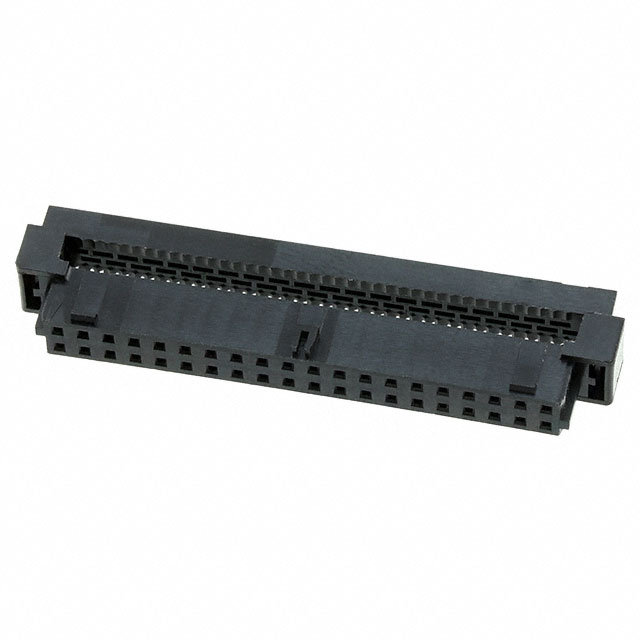

Molex 0875684091	28 AWG	40	Receptacle	15 µin	0.38 µm	Free Hanging (In-Line)	2	Locking Ramp	Ribbon Cable	Feed Through Polarizing Key	IDC	2 mm	0.079 in	Gold	Black	Female Socket	0.079 in	2 mm

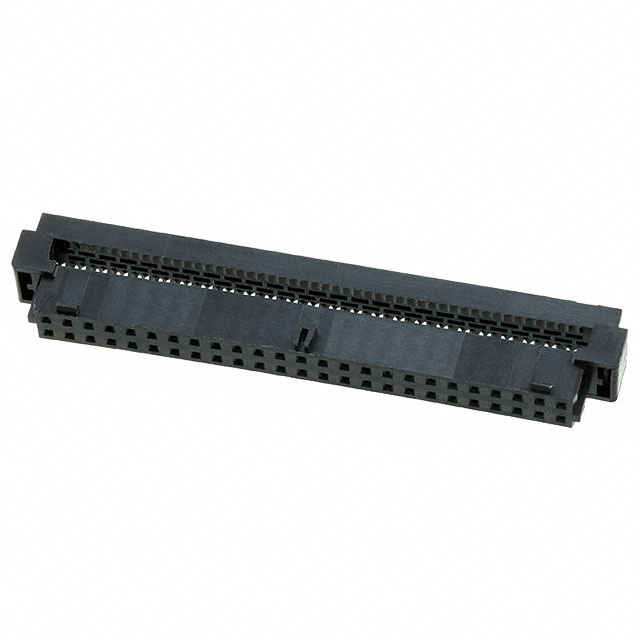

Molex 0875685091	28 AWG	50	Receptacle	15 µin	0.38 µm	Free Hanging (In-Line)	2	Locking Ramp	Ribbon Cable	Feed Through Polarizing Key	IDC	2 mm	0.079 in	Gold	Black	Female Socket	0.079 in	2 mm
Molex 0875682264	28 AWG	22 positions	Receptacle	30 Áin	0.76 Ám	Free Hanging (In-Line)	2		Ribbon Cable	Feed Through Polarizing Key	IDC	2 mm	0.079 in	Gold	Black	Female Socket	0.079 in	2 mm

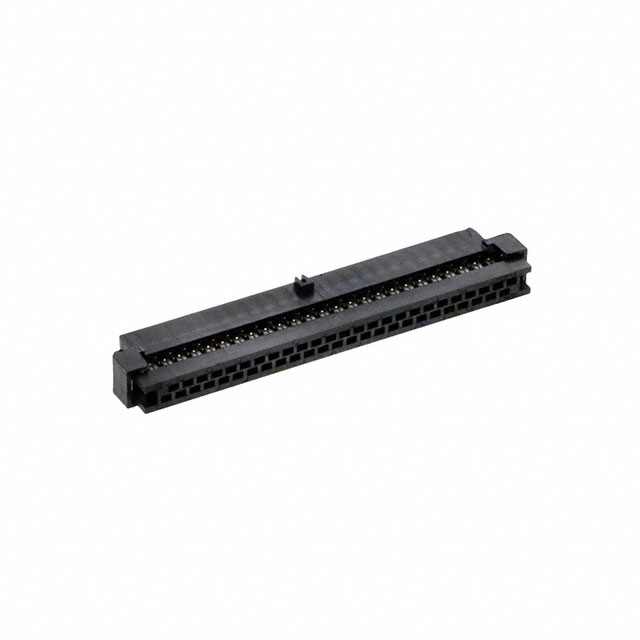

Molex 0875685044	28 AWG	50	Receptacle	30 Áin	0.76 Ám	Free Hanging (In-Line)	2		Ribbon Cable	Feed Through Polarizing Key	IDC	2 mm	0.079 in	Gold	Black	Female Socket	0.079 in	2 mm
Molex 0875683491	28 AWG	34	Receptacle	15 µin	0.38 µm	Free Hanging (In-Line)	2	Locking Ramp	Ribbon Cable	Feed Through Polarizing Key	IDC	2 mm	0.079 in	Gold	Black	Female Socket	0.079 in	2 mm
Molex 0875681093	28 AWG	10	Receptacle	15 µin	0.38 µm	Free Hanging (In-Line)	2	Locking Ramp	Ribbon Cable	Feed Through Polarizing Key	IDC	2 mm	0.079 in	Gold	Black	Female Socket	0.079 in	2 mm
