32_SMA-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

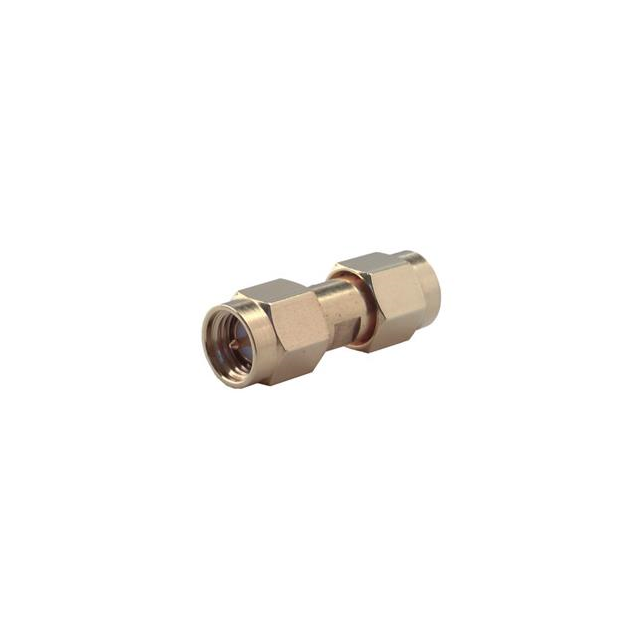

32_SMA-50-0-52/199_NE
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Center Contact Material | Style | Convert To (Adapter End) | Mounting Type | Center Gender | Center Contact Plating | Adapter Type | Adapter Series | Impedance | Convert From (Adapter End) | Conversion Type | Frequency - Max [Max] | Body Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Stainless Steel | Beryllium Copper | Straight | SMA Plug Male Pin | Free Hanging (In-Line) | Male to Male | Gold | Plug to Plug | SMA to SMA | 50 Ohms | Male Pin SMA Plug | Same Series | 18 GHz | |
 Huber+Suhner, Inc. | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Beryllium Copper | Beryllium Copper | Straight | SMA Plug Male Pin | Free Hanging (In-Line) | Male to Male | Gold | Plug to Plug | SMA to SMA | 50 Ohms | Male Pin SMA Plug | Same Series | 18 GHz | Gold |
