07FLZ-RS Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

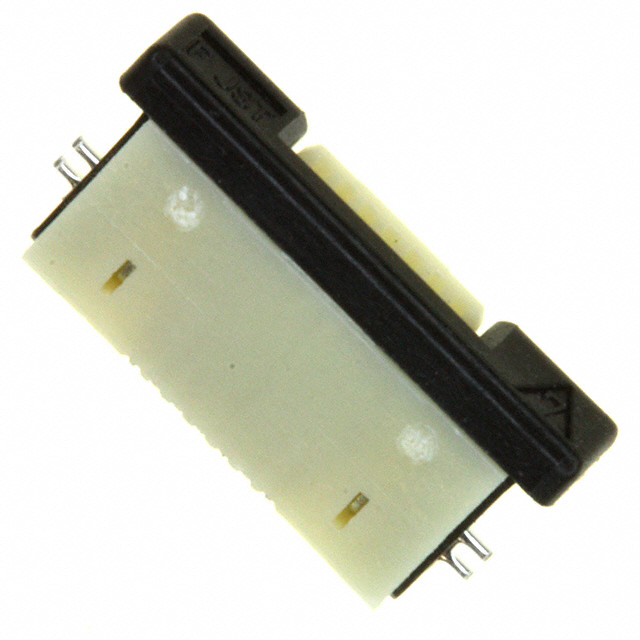

CONN FFC BOTTOM 7POS 0.5MM R/A
| Part | Housing Color | Actuator Color | Current Rating (Amps) | Contact Material | Housing Material | Flat Flex Type | Mounting Type | Contact Finish | Material Flammability Rating | Connector/Contact Type | Cable End Type | Voltage Rating | Number of Positions | FFC, FCB Thickness | Locking Feature | Features | Height Above Board | Height Above Board | Pitch | Pitch | Actuator Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Natural | Black | 0.5 A | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | FFC FPC | Right Angle Surface Mount | Tin | UL94 V-0 | Contacts Bottom | Tapered | 50 V | 7 | 0.3 mm | Slide Lock | Solder Retention Zero Insertion Force (ZIF) | 2 mm | 0.079 in | 0.02 " | 0.5 mm | Polyamide (PA6T) Nylon 6T | 85 °C | -25 °C | Solder |
