XZFVG10 Series
Manufacturer: SunLED
Beta
⌘K

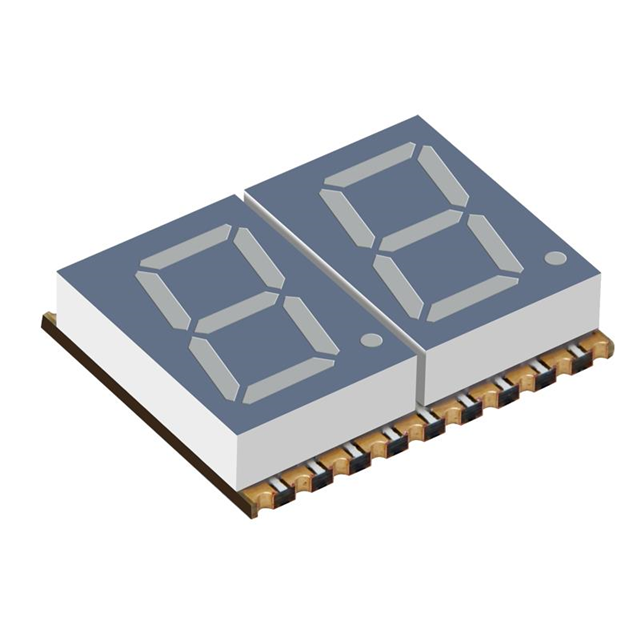

DISPLAY 7SEG 0.4" DBL GRN 20SMD
| Part | Package / Case | Common Pin | Voltage - Forward (Vf) (Typ) | Current - Test | Display Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Digit/Alpha Size | Digit/Alpha Size | Number of Characters | Power Dissipation (Max) [Max] | Color | Millicandela Rating | Number of Characters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 20-SMD No Lead | Common Anode | 2 V | 10 mA | 7-Segment | 0.728 in | 0.148 in | 18.5 mm | 0.512 in | 13 mm | 3.75 mm | 10.16 mm | 0.4 in | 2 | 75 mw | Green | 4 mcd | |

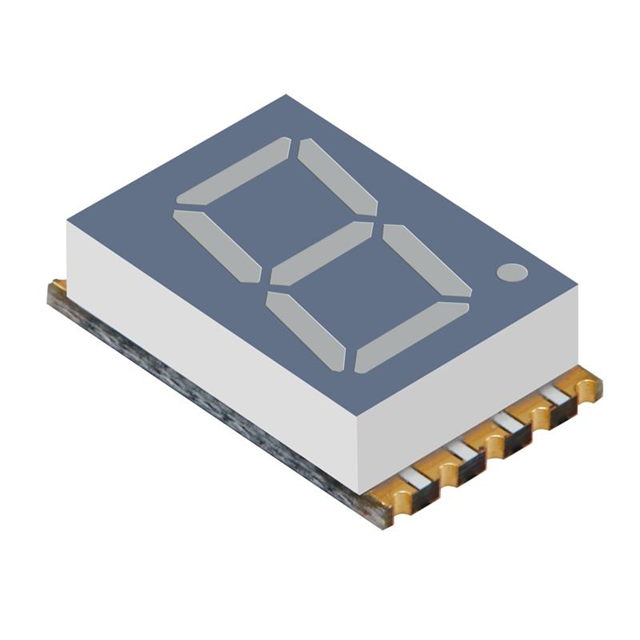

 SunLED | 10-SMD No Lead | Common Cathode | 2 V | 10 mA | 7-Segment | 0.358 in | 0.512 " | 9.1 mm | 0.148 in | 3.75 mm | 13 mm | 10.16 mm | 0.4 in | 75 mw | Green | 4 mcd | 1 | |
SunLED | 10-SMD No Lead | Common Anode | 2 V | 10 mA | 7-Segment | 0.358 in | 0.591 in | 9.1 mm | 0.148 in | 3.75 mm | 15 mm | 10.16 mm | 0.4 in | 75 mw | Green | 11 mcd | 1 |
