176-025 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN D-SUB RCPT 25POS R/A SLDR
| Part | Dielectric Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Flange Feature | Material Flammability Rating | Contact Finish | Number of Rows [custom] | Contact Type | Termination | Connector Style | Number of Positions | Connector Type | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Backset Spacing | Backset Spacing | Contact Finish Thickness | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

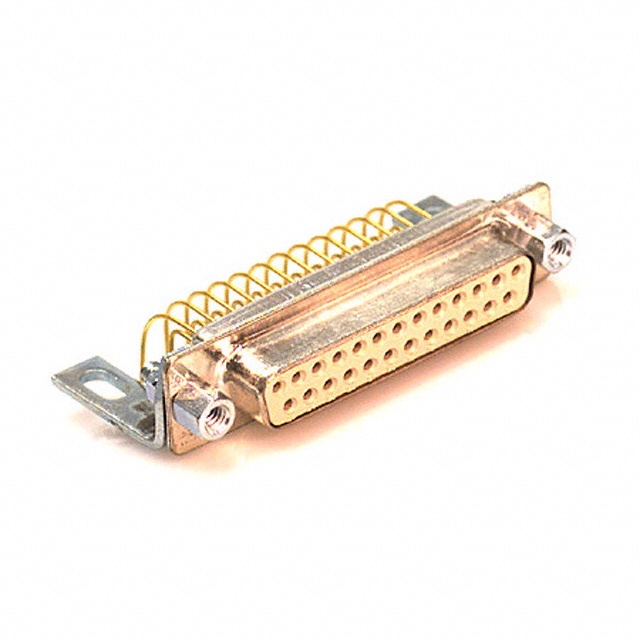

 NorComp Inc. | Polybutylene Terephthalate (PBT) Polyester | Brass | 100 °C | -50 °C | Beige | 4-40 Mating Side Female Screwlock | UL94 V-0 | Gold | 2 | Signal | Solder | D-Sub | 25 | Receptacle Female Sockets | 5 A | B DB | 3 | 13.84 mm | 0.545 in | Flash | Panel Mount Right Angle Through Hole | Mounting Brackets |

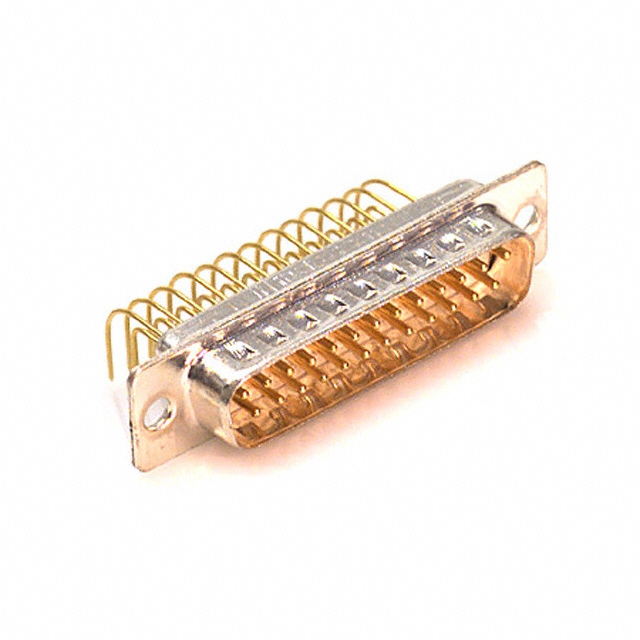

 NorComp Inc. | Polybutylene Terephthalate (PBT) Polyester | Brass | 100 °C | -50 °C | Beige | 4-40 Mating Side Female Screwlock | UL94 V-0 | Gold | 2 | Signal | Solder | D-Sub | 25 | Plug Male Pins | 5 A | B DB | 3 | 13.84 mm | 0.545 in | Flash | Panel Mount Right Angle Through Hole | Grounding Indents Mounting Brackets |
