216550 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

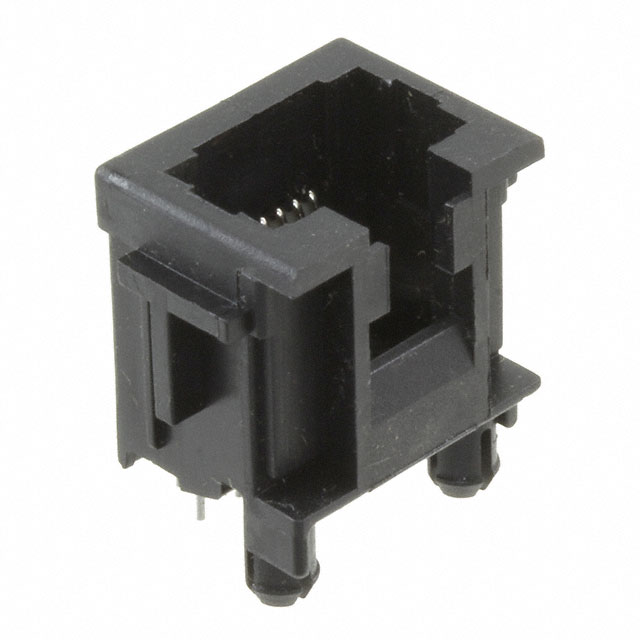

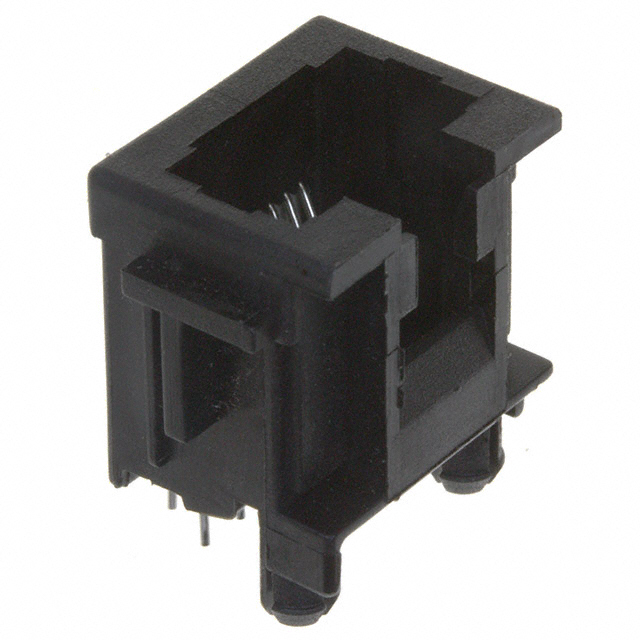

CONN MOD JACK 8P8C VERT UNSHLD
| Part | Contact Material | Number of Ports | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Tab Direction | Contact Finish | Mounting Type | Ratings | Shielding | Orientation | Features | Termination | Number of Rows | LED Color | Connector Type | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Phosphor Bronze | 1 | Polybutylene Terephthalate (PBT) | -40 °C | 70 °C | 50 µin | 1.27 µm | User Selectable | Gold | Through Hole | Cat3 | Unshielded | Vertical | Board Lock Panel Stops | Solder | 1 | Does Not Contain LED | Jack | 8p8c (RJ45 Ethernet) |
 TE Connectivity Raychem Cable Protection | Phosphor Bronze | 1 | Polybutylene Terephthalate (PBT) | -40 °C | 70 °C | 47.2 µin | 1.2 µm | User Selectable | Gold | Through Hole | Cat3 | Unshielded | Vertical | Board Lock Panel Stops | Solder | 1 | Does Not Contain LED | Jack | 8p8c (RJ45 Ethernet) |
