002911 Series

Manufacturer: Molex

Catalog

CONN PLUG HSG 5POS 2.50MM

Part	Note	Fastening Type	Color	Number of Positions	Number of Rows	Insulation Material	Pitch	Pitch	Mounting Type	Contact Type	Connector Type	Contact Termination	Operating Temperature [Min]	Operating Temperature [Max]

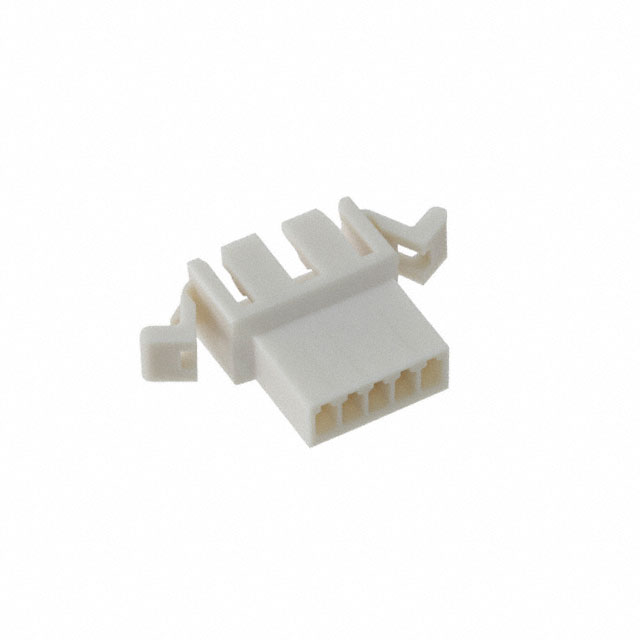

Molex 0029110052	Contacts Not Included	Latch Lock/Eject Hooks	Ivory	5	1	Nylon 6/6 Polyamide (PA66)	2.5 mm	0.098 in	Panel Mount	Male Pin	Plug	Crimp	-40 C	105 ░C

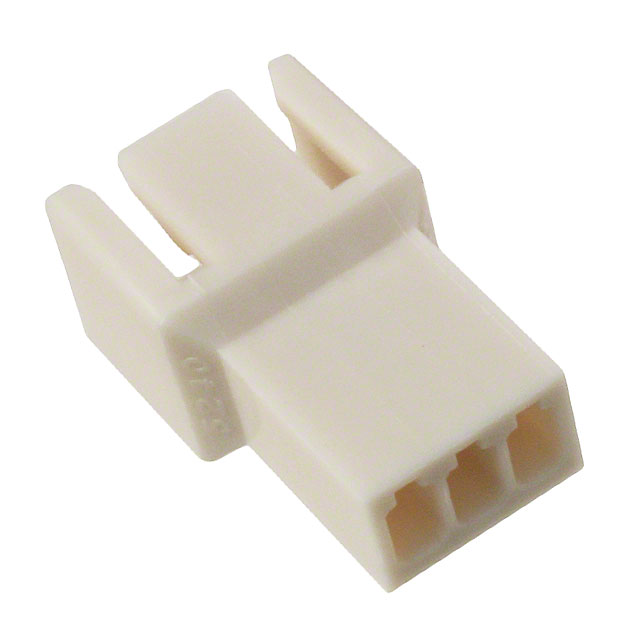

Molex 0029110033	Contacts Not Included	Friction Lock	Ivory		1	Nylon 6/6 Polyamide (PA66)	2.5 mm	0.098 in	Free Hanging (In-Line)	Male Pin	Plug	Crimp	-40 C	105 ░C
Molex 0029110082	Contacts Not Included	Latch Lock/Eject Hooks	Ivory	8	1	Nylon 6/6 Polyamide (PA66)	2.5 mm	0.098 in	Panel Mount	Male Pin	Plug	Crimp	-40 C	105 ░C

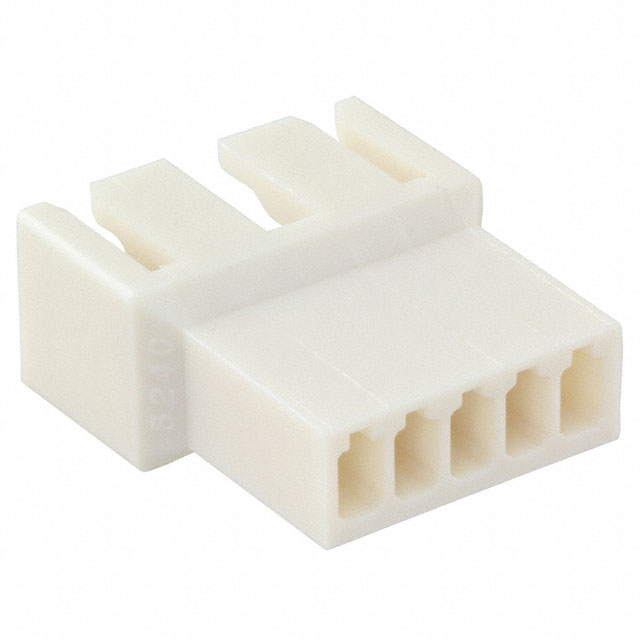

Molex 0029110053	Contacts Not Included	Friction Lock	Ivory	5	1	Nylon 6/6 Polyamide (PA66)	2.5 mm	0.098 in	Free Hanging (In-Line)	Male Pin	Plug	Crimp	-40 C	105 ░C
Molex 0029110143

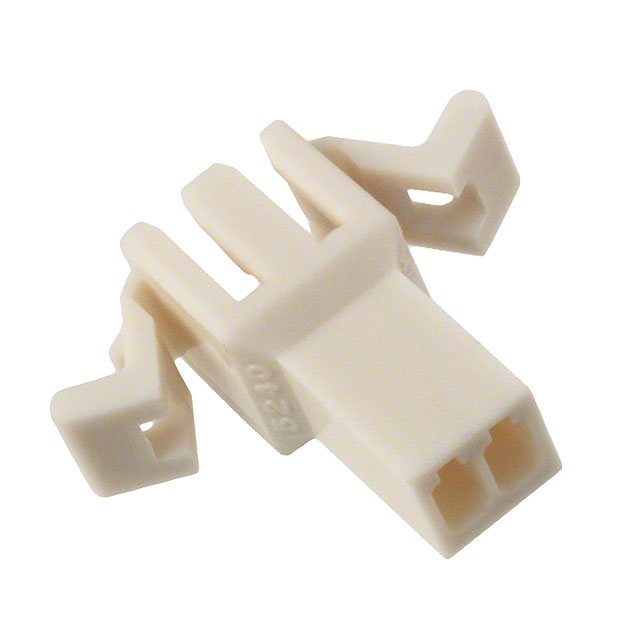

Molex 0029110022	Contacts Not Included	Latch Lock/Eject Hooks	Ivory	2	1	Nylon 6/6 Polyamide (PA66)	2.5 mm	0.098 in	Panel Mount	Male Pin	Plug	Crimp	-40 C	105 ░C
Molex 0029110112	Contacts Not Included	Latch Lock/Eject Hooks	Ivory	11	1	Nylon 6/6 Polyamide (PA66)	2.5 mm	0.098 in	Panel Mount	Male Pin	Plug	Crimp	-40 C	105 ░C
Molex 0029110122	Contacts Not Included	Latch Lock/Eject Hooks	Ivory	12	1	Nylon 6/6 Polyamide (PA66)	2.5 mm	0.098 in	Panel Mount	Male Pin	Plug	Crimp	-40 C	105 ░C

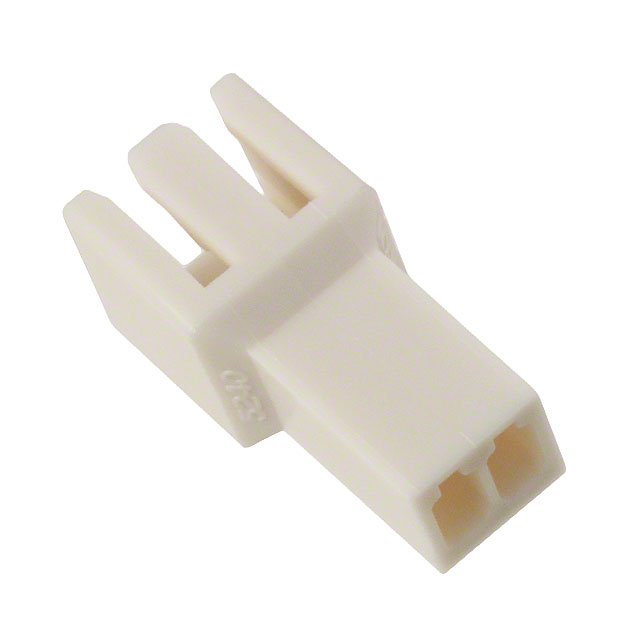

Molex 0029110023	Contacts Not Included	Friction Lock	Ivory	2	1	Nylon 6/6 Polyamide (PA66)	2.5 mm	0.098 in	Free Hanging (In-Line)	Male Pin	Plug	Crimp	-40 C	105 ░C
Molex 0029110073	Contacts Not Included	Friction Lock	Ivory	7	1	Nylon 6/6 Polyamide (PA66)	2.5 mm	0.098 in	Free Hanging (In-Line)	Male Pin	Plug	Crimp	-40 C	105 ░C
