10118654 Series

Catalog

CONN HEADER

Part	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Finish - Mating	Termination	Contact Type	Number of Positions Loaded	Number of Positions	Insulation Material	Mounting Type	Insulation Color	Material Flammability Rating	Connector Type	Contact Material	Insulation Height	Insulation Height	Shrouding	Number of Rows	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features	Contact Finish - Post
Amphenol ICC (FCI) 10118654-802LF	5.9 mm	0.232 in	Push-Pull	Gold GXT™	Solder	Male Pin	9	10	Thermoplastic	Surface Mount	Black	UL94 V-0	Header	Phosphor Bronze	0.084 in	2.14 mm	Unshrouded	2	Square	15 µin	0.38 µm	2 çm	78.7 çin	0.1 in	2.54 mm	2.54 mm	0.1 in	Board Guide	Tin

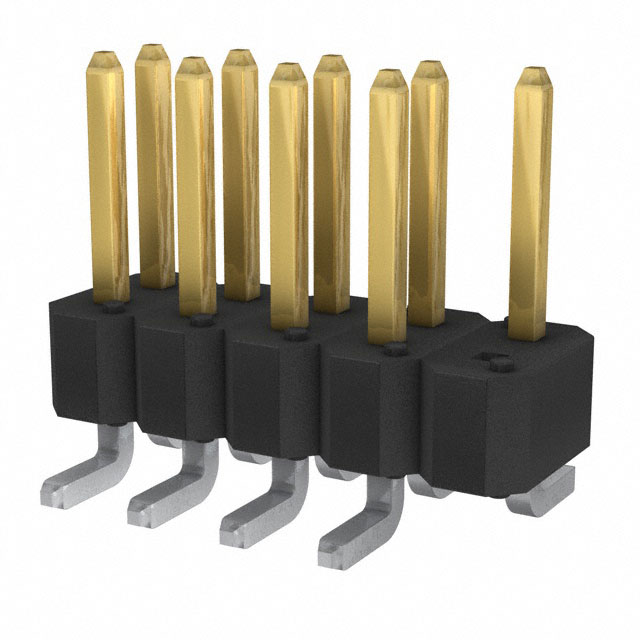

Amphenol ICC (FCI) 10118654-101ALF	5.9 mm	0.232 in	Push-Pull	Gold GXT™	Solder	Male Pin	9	10	Thermoplastic	Surface Mount	Black	UL94 V-0	Header	Phosphor Bronze	0.084 in	2.14 mm	Unshrouded	2	Square	30 Áin	0.76 Ám	2 çm	78.7 çin	0.1 in	2.54 mm	2.54 mm	0.1 in	Board Guide Pick and Place	Tin
