79221 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

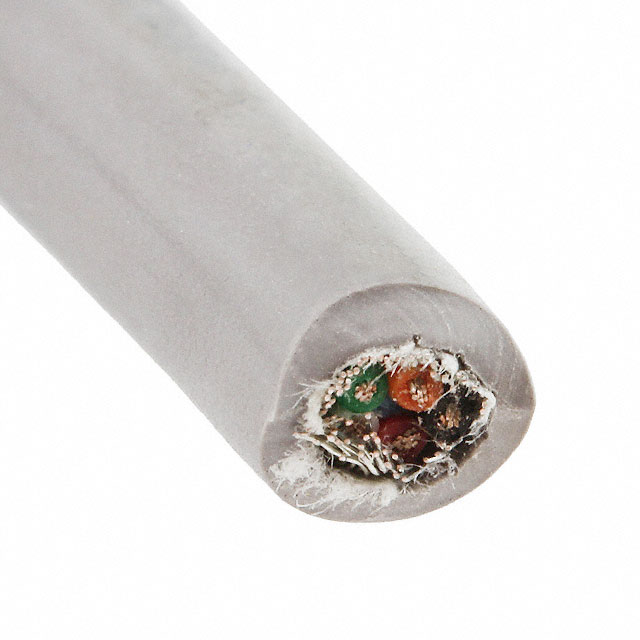

CABLE 5CON 16AWG SLATE SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Wire Gauge | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Length [x] | Length [x] | Features | Shield Type | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Polyphenylene Ether Modified (mPPE) | 5 | 30 AWG | 26 | Copper Tinned | 16 AWG | -40 C | 105 ░C | Multi-Conductor | ISO 10993 | 0.035 in | 0.889 mm | Slate | 100 ft | 30.5 m | Biological Compatibility | Braid Foil | Polyphenylene Ether Modified (mPPE) | 8.28 mm | 0.326 " | 600 V | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Polyphenylene Ether Modified (mPPE) | 5 | 30 AWG | 26 | Copper Tinned | 16 AWG | -40 C | 105 ░C | Multi-Conductor | ISO 10993 | 0.035 in | 0.889 mm | Slate | Biological Compatibility | Braid Foil | Polyphenylene Ether Modified (mPPE) | 8.28 mm | 0.326 " | 600 V | 304.8 m | 1000 ft | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Polyphenylene Ether Modified (mPPE) | 5 | 30 AWG | 26 | Copper Tinned | 16 AWG | -40 C | 105 ░C | Multi-Conductor | ISO 10993 | 0.035 in | 0.889 mm | Slate | Biological Compatibility | Braid Foil | Polyphenylene Ether Modified (mPPE) | 8.28 mm | 0.326 " | 600 V |
