GBU10 Series

Catalog

BRIDGE RECTIFIERS 400V 10A BRIDGE RECTIFIER

Part	Voltage - Peak Reverse (Max) [Max]	Diode Type	Current - Average Rectified (Io)	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Current - Reverse Leakage @ Vr	Package / Case	Voltage - Forward (Vf) (Max) @ If [Max]	Mounting Type	Supplier Device Package	Voltage - Peak Reverse (Max)
GeneSiC Semiconductor GBU10G	400 V	Single Phase	10 A	Standard	150 °C	-55 °C	5 µA	4-SIP GBU	1.1 V	Through Hole	GBU
GeneSiC Semiconductor GBU10K		Single Phase	10 A	Standard	150 °C	-55 °C	5 µA	4-SIP GBU	1.1 V	Through Hole	GBU	800 V
GeneSiC Semiconductor GBU10J	600 V	Single Phase	10 A	Standard	150 °C	-55 °C	5 µA	4-SIP GBU	1.1 V	Through Hole	GBU

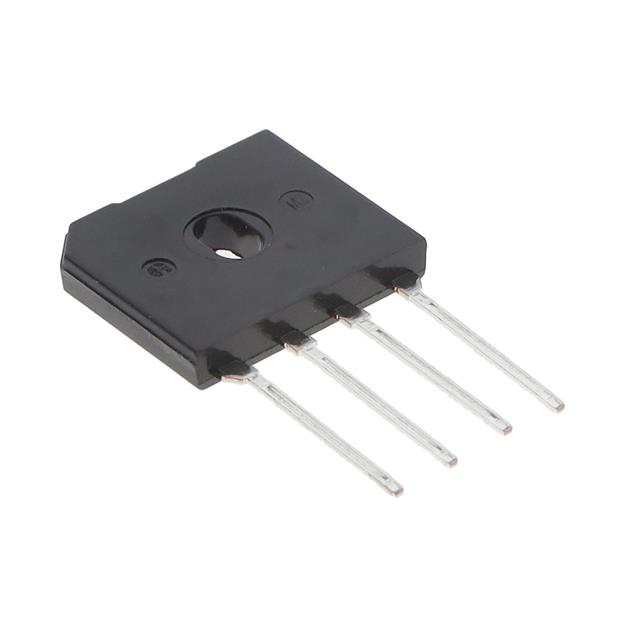

GeneSiC Semiconductor GBU10A	50 V	Single Phase	10 A	Standard	150 °C	-55 °C	5 µA	4-SIP GBU	1.1 V	Through Hole	GBU
GeneSiC Semiconductor GBU10M	1 kV	Single Phase	10 A	Standard	150 °C	-55 °C	5 µA	4-SIP GBU	1.1 V	Through Hole	GBU
GeneSiC Semiconductor GBU10D		Single Phase	10 A	Standard	150 °C	-55 °C	5 ÁA	4-SIP GBU	1.1 V	Through Hole	GBU	200 V
GeneSiC Semiconductor GBU10B	100 V	Single Phase	10 A	Standard	150 °C	-55 °C	5 µA	4-SIP GBU	1.1 V	Through Hole	GBU
