SM16B-SU Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

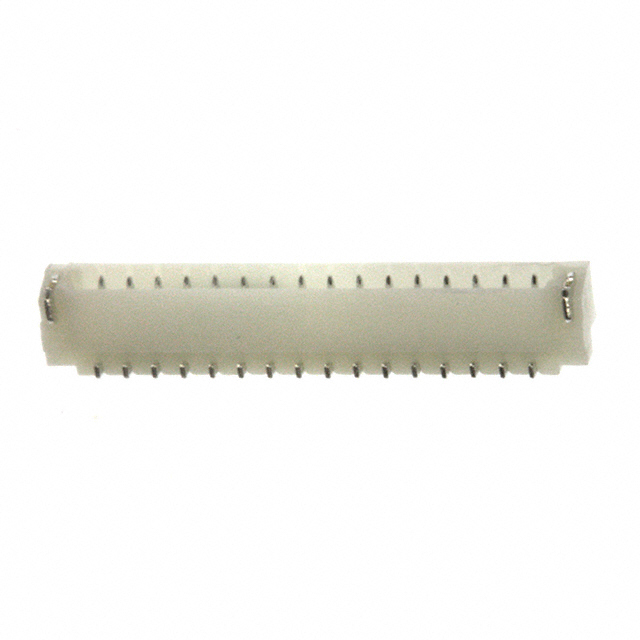

CONN HEADER SMD R/A 16POS 0.8MM
| Part | Insulation Material | Connector Type | Contact Finish - Post | Number of Positions Loaded | Number of Rows | Material Flammability Rating | Mounting Type | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Features | Insulation Color | Termination | Shrouding | Contact Shape | Contact Type | Style | Insulation Height [z] | Insulation Height [z] | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Voltage Rating | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Nylon Polyamide (PA) | Header | Tin | All | 1 | UL94 V-0 | Right Angle Surface Mount | 16 | 85 °C | -25 °C | Push-Pull | Solder Retention | Natural | Solder | Shrouded - 4 Wall | Rectangular | Outer Shroud Contact | Board to Cable/Wire | 0.069 in | 1.75 mm | 0.8 mm | 0.031 in | 0.2 A 0.5 A | 30 VDC | Copper Alloy |
