307-027 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE SGL FMALE 27POS 0.156
...
| Part | Number of Positions/Bay/Row [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Card Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Color | Number of Positions | Pitch [x] | Pitch [x] | Contact Material | Termination Rows | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Features | Flange Feature | Contact Finish | Material - Insulation | Gender | Read Out | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

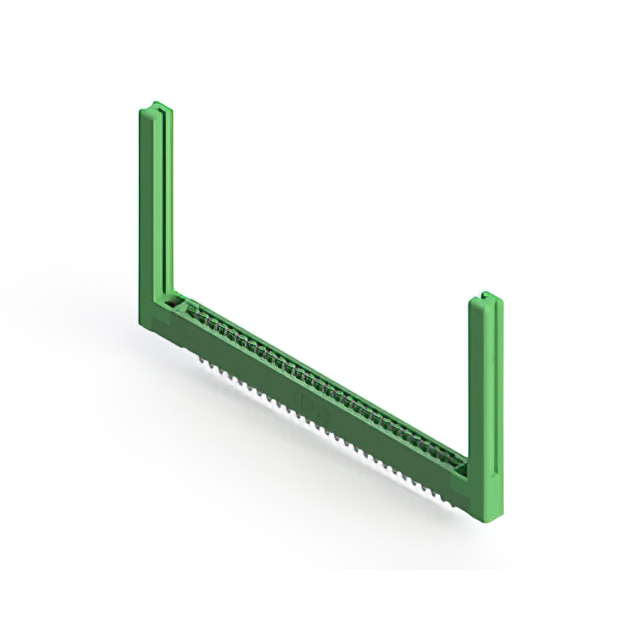

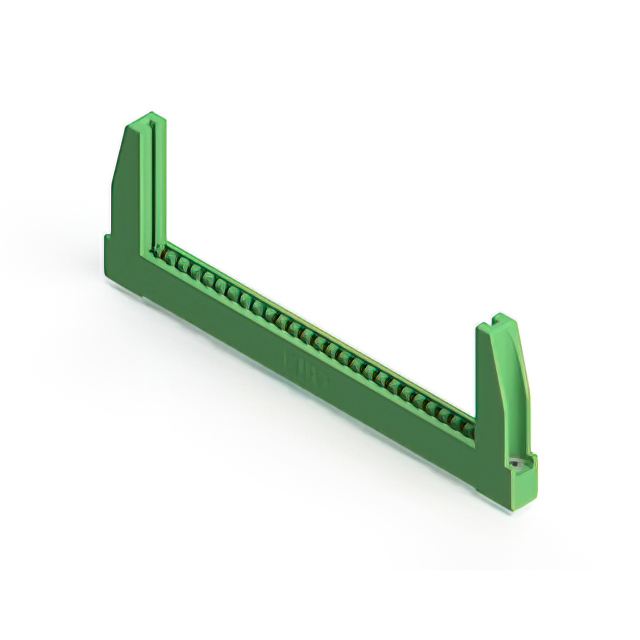

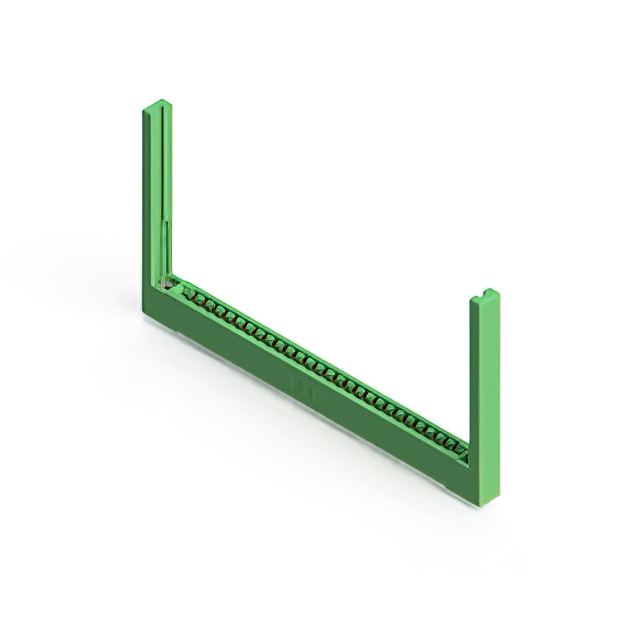

 EDAC Inc. | 27 | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | Solder Eyelet(s) | 10 Áin | 0.25 Ám | Semi Bellows | Green | 27 | 0.156 in | 3.96 mm | Copper Alloy | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Polyester Thermoplastic | Female | Single | ||
 EDAC Inc. | 27 | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Wire Wrap | 10 Áin | 0.25 Ám | Semi Bellows | Green | 54 | 0.156 in | 3.96 mm | Copper Alloy | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Polyester Thermoplastic | Female | Dual | ||

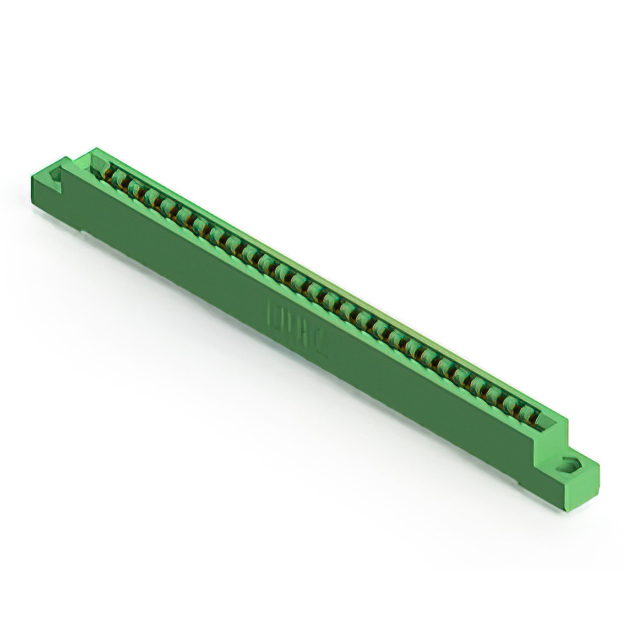

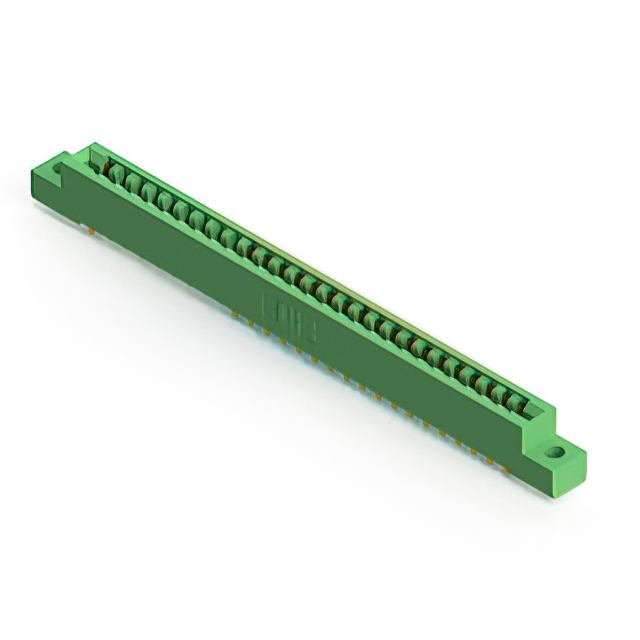

 EDAC Inc. | 27 | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | Solder | 10 Áin | 0.25 Ám | Semi Bellows | Green | 27 | 0.156 in | 3.96 mm | Copper Alloy | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Side Opening Unthreaded | Gold | Polyester Thermoplastic | Female | Single | 3.25 mm | 0.128 " | |

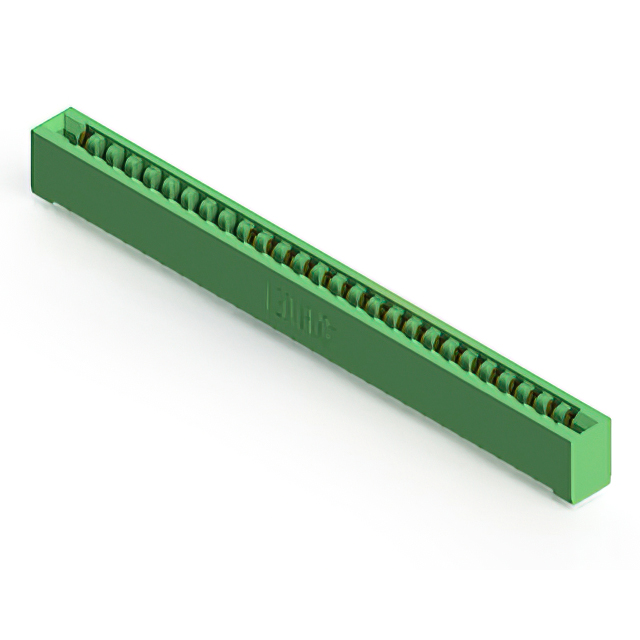

 EDAC Inc. | 27 | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | Solder | 10 Áin | 0.25 Ám | Semi Bellows | Green | 27 | 0.156 in | 3.96 mm | Copper Alloy | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Polyester Thermoplastic | Female | Single | ||||
 EDAC Inc. | 27 | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Wire Wrap | 10 Áin | 0.25 Ám | Semi Bellows | Green | 54 | 0.156 in | 3.96 mm | Copper Alloy | 1 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Side Opening Unthreaded | Gold | Polyester Thermoplastic | Female | Dual | 3.25 mm | 0.128 " | |
 EDAC Inc. | 27 | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | Solder Eyelet(s) | Semi Bellows | Green | 27 | 0.156 in | 3.96 mm | Copper Alloy | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | Tin | Polyester Thermoplastic | Female | Single | ||||
 EDAC Inc. | 27 | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | Solder | 10 Áin | 0.25 Ám | Semi Bellows | Green | 27 | 0.156 in | 3.96 mm | Copper Alloy | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Flush Mount | Gold | Polyester Thermoplastic | Female | Single | 2.95 mm | 0.116 in | |
 EDAC Inc. | 27 | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | Wire Wrap | 10 Áin | 0.25 Ám | Semi Bellows | Green | 27 | 0.156 in | 3.96 mm | Copper Alloy | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Side Opening Unthreaded | Gold | Polyester Thermoplastic | Female | Single | 3.25 mm | 0.128 " | |
 EDAC Inc. | 27 | -40 °C | 105 ░C | 1 | Non Specified - Single Edge | Solder | 10 Áin | 0.25 Ám | Semi Bellows | Green | 27 | 0.156 in | 3.96 mm | Copper Alloy | 1 | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | Gold | Polyester Thermoplastic | Female | Single | ||
 EDAC Inc. | 27 | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Solder | 10 Áin | 0.25 Ám | Semi Bellows | Green | 54 | 0.156 in | 3.96 mm | Copper Alloy | 1 | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | Gold | Polyester Thermoplastic | Female | Dual | 3.96 mm | 0.156 in |
