PTH05050 Series

Catalog

DC DC CONVERTER 0.8-3.6V 21W

Part	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Mounting Type	Number of Outputs	Applications	Efficiency	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Type	Package / Case	Power (Watts)	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension

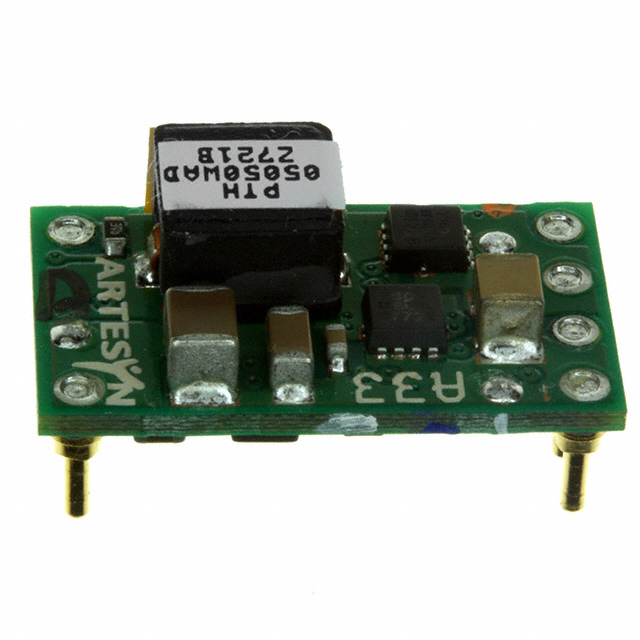

ARTESYN / Advanced Energy PTH05050WAD	5.5 V	6 A	UVLO	0.87 in	22.1 mm	12.7 mm	0.34 in	0.5 "	8.6 mm	Through Hole	1	ITE (Commercial)	95 %	3.6 V	0.8 V	Non-Isolated PoL Module	6-DIP Module	21 W	4.5 V	85 °C	-40 C
ARTESYN / Advanced Energy PTH05050WAZT	5.5 V	6 A	Remote On/Off SCP UVLO	0.87 in			0.34 in	0.5 "		Surface Mount	1	ITE (Commercial)	95 %	3.6 V	0.8 V	Non-Isolated PoL Module	6-SMD Module		4.5 V	85 °C	-40 C	8.5 mm 12.7 mm 22.1 mm
