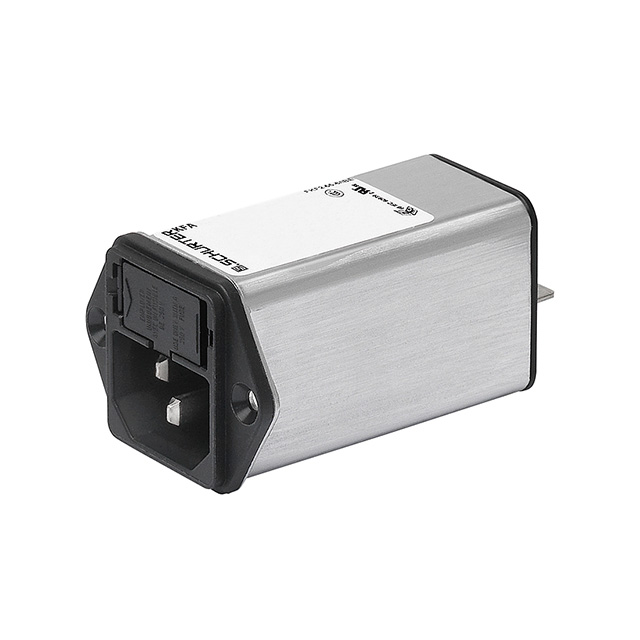

kfa Series

AC Power Entry Modules KEA PWR ENTRY MODUL W. FILTER 6A

Manufacturer: SCHURTER Inc.

Catalog

AC Power Entry Modules KEA PWR ENTRY MODUL W. FILTER 6A

Catalog

AC Power Entry Modules KEA PWR ENTRY MODUL W. FILTER 6A

Part	Connector Style	Material Flammability Rating	Termination	Termination	Termination	Voltage Rating - Appliance Inlet	Mounting Type	Current Rating - Appliance Inlet	Connector Type	Accomodates a Fuse	Fuse Holder, Drawer	Ingress Protection	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Filter	Filter Type	Panel Thickness	Panel Thickness [Max]	Panel Thickness [Min]	Features
SCHURTER Inc. 4301.5204	IEC 320-C14	UL94 V-0	6.3 mm	Quick Connect	0.25 "	250 VAC	Flange Panel Mount	2 A	Receptacle Male Blades - Module		Drawer Sold Separate	IP40	CCC cULus ENEC	33 mm	29 mm	2 A	Filtered (EMI RFI) - Commercial Medical
SCHURTER Inc. 4301.5012	IEC 320-C14	UL94 V-0	6.3 mm	Quick Connect	0.25 "	250 VAC	Flange Panel Mount	2 A	Receptacle Male Blades - Module		Drawer Sold Separate	IP40	CCC cULus ENEC	33 mm	29 mm	2 A	Filtered (EMI RFI) - Commercial

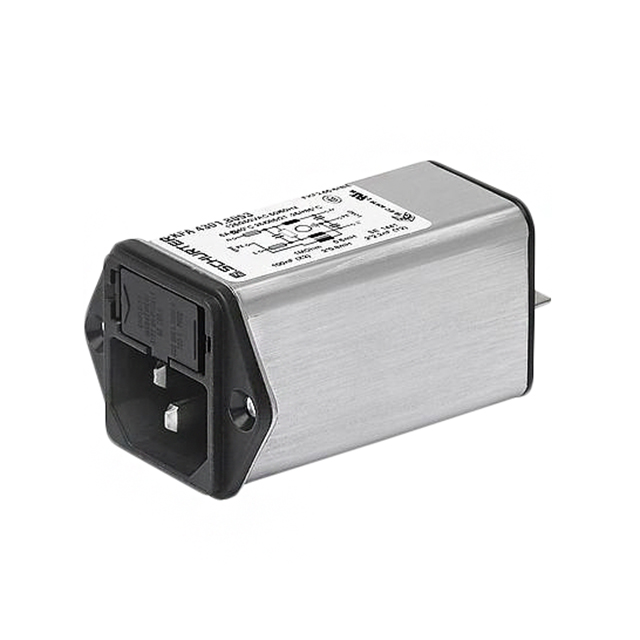

SCHURTER Inc. 4301.7209	IEC 320-C14	UL94 V-0	6.3 mm	Quick Connect	0.25 "	250 VAC	Flange Panel Mount	10 A	Receptacle Male Blades - Module		Drawer Sold Separate	IP40	CCC cULus ENEC			10 A	Filtered (EMI RFI) - Commercial Medical
SCHURTER Inc. 4301.8054	IEC 320-C14	UL94 V-0	6.3 mm	Quick Connect	0.25 "	250 VAC	Flange Panel Mount	10 A	Receptacle Male Blades - Module		Drawer Sold Separate	IP40	CCC cULus ENEC	33 mm	29 mm	10 A	Filtered (EMI RFI) - Commercial

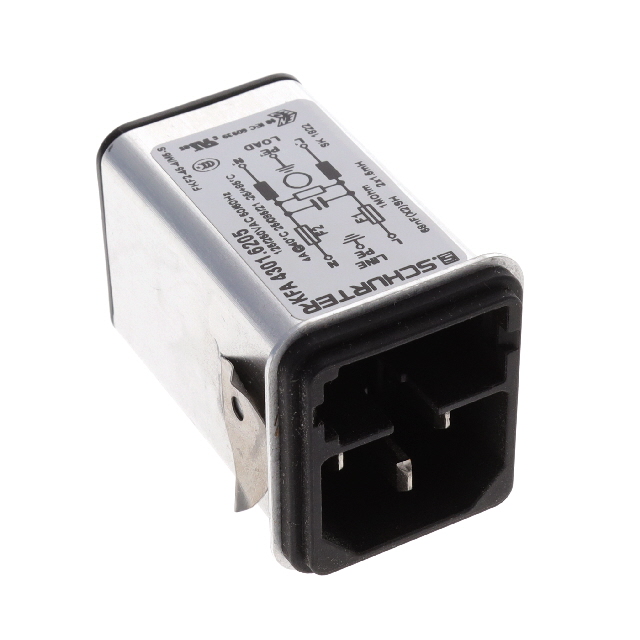

SCHURTER Inc. 4301.6205	IEC 320-C14	UL94 V-0	6.3 mm	Quick Connect	0.25 "	250 VAC	Panel Mount Snap-In	4 A	Receptacle Male Blades - Module		Drawer Sold Separate	IP40	CCC cULus ENEC	33 mm	29.35 mm	4 A	Filtered (EMI RFI) - Commercial Medical	0.79 mm 3 mm	0.118 in	0.031 "

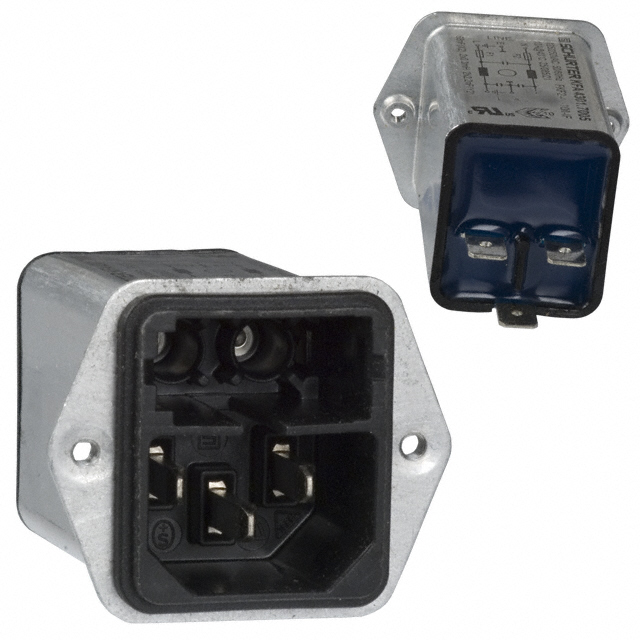

SCHURTER Inc. 4301.7005	IEC 320-C14	UL94 V-0	6.3 mm	Quick Connect	0.25 "	250 VAC	Flange Panel Mount	10 A	Receptacle Male Blades - Module		Drawer Sold Separate	IP40	CCC cULus ENEC			10 A	Filtered (EMI RFI) - Commercial
SCHURTER Inc. 4301.8050	IEC 320-C14	UL94 V-0	6.3 mm	Quick Connect	0.25 "	250 VAC	Flange Panel Mount	1 A	Receptacle Male Blades - Module		Drawer Sold Separate	IP40	CCC cULus ENEC	33 mm	29 mm	1 A	Filtered (EMI RFI) - Commercial
SCHURTER Inc. 4301.5205	IEC 320-C14	UL94 V-0	6.3 mm	Quick Connect	0.25 "	250 VAC	Flange Panel Mount	4 A	Receptacle Male Blades - Module		Drawer Sold Separate	IP40	CCC cULus ENEC	33 mm	29 mm	4 A	Filtered (EMI RFI) - Commercial Medical

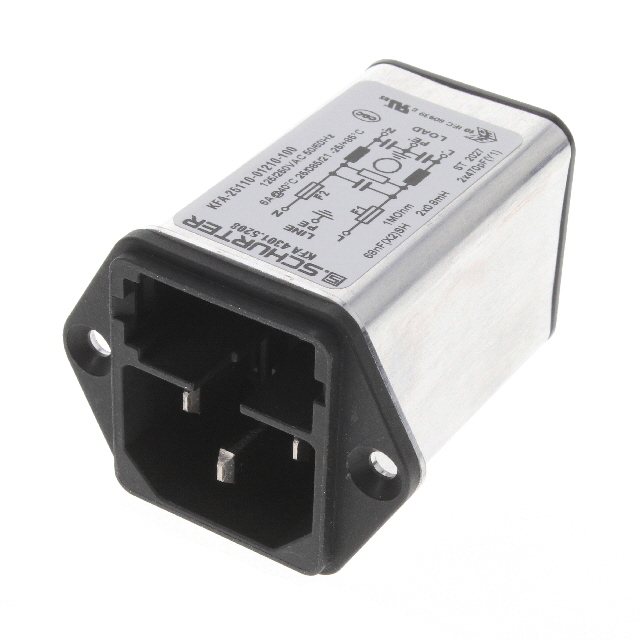

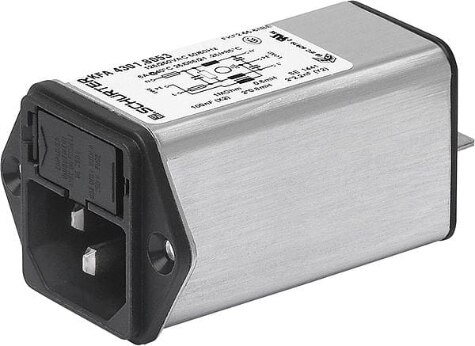

SCHURTER Inc. 4301.5208	IEC 320-C14								Receptacle Male Blades - Module
SCHURTER Inc. 4301.5041	IEC 320-C14	UL94 V-0	4.8 mm	Quick Connect	0.189 "	250 VAC	Flange Panel Mount	1 A	Receptacle Male Blades - Module		Drawer Sold Separate	IP40	CCC cULus ENEC	33 mm	29 mm	1 A	Filtered (EMI RFI) - Commercial				Voltage Selector
