3580/24 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

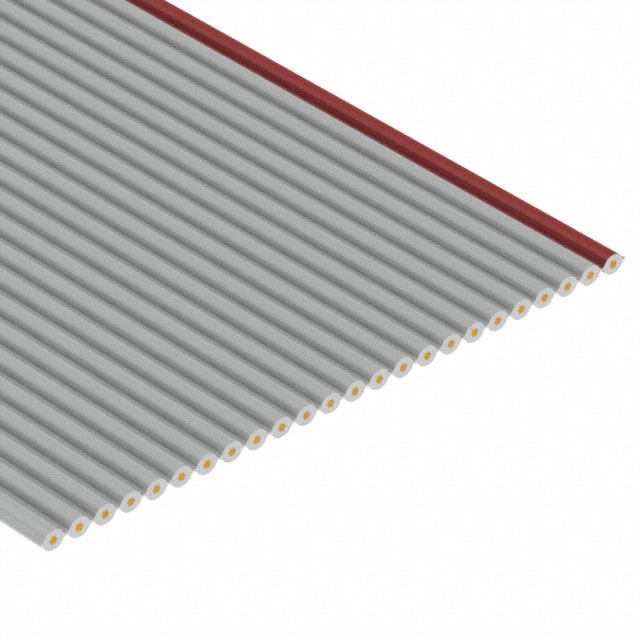

RIBBON CABLE, FLAT, UNSHIELDED, 24 CONDUCTOR, 28 AWG, 0.09 MM², 100 FT, 30.5 M
| Part | Jacket Color | Cable Type | First Conductor Mark | Pitch [x] | Pitch [x] | Operating Temperature [Min] | Operating Temperature [Max] | Ribbon Thickness [custom] | Ribbon Thickness [custom] | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Shielding | Voltage | Number of Conductors | Ratings | Wire Gauge | Ribbon Width [y] | Ribbon Width [y] | Jacket (Insulation) Material | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Gray | Flat Cable | Red | 0.05 in | 1.27 mm | -20 C | 105 ░C | 0.033 " | 0.84 mm | 7 | 36 AWG | 100 ft | 30.48 m | Unshielded | 300 V | 24 | UL Style 2651 | 28 AWG | 1.2 in | 30.48 mm | Poly-Vinyl Chloride (PVC) | Copper Tinned |
