Side view Red Chip LED
Description
AI

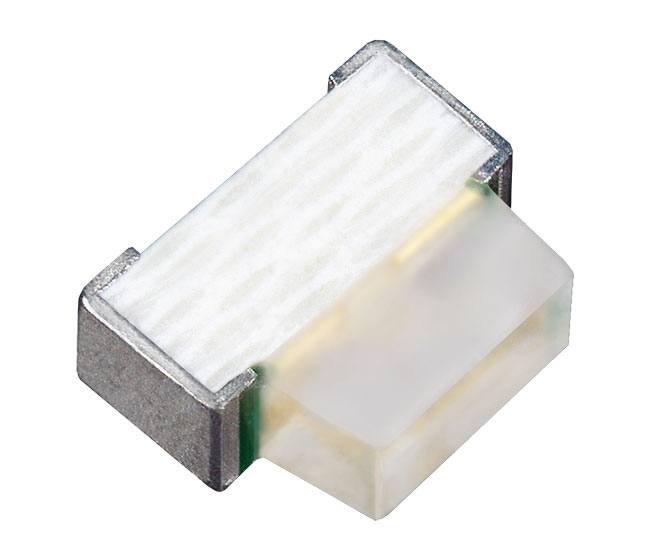

SML-A1 series is a small side-emitting chip LED.
Beta
⌘K
Side view Red Chip LED
Side view Red Chip LED
| Part | Lens Style | Lens Color | Size / Dimension [x] | Size / Dimension [y] | Lens Size [y] | Lens Size [x] | Supplier Device Package | Wavelength - Dominant | Lens Transparency | Configuration | Package / Case | Mounting Type | Millicandela Rating | Current - Test | Height (Max) [z] | Color | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | Rectangle with Flat Top | Colorless | 1.6 mm | 1.15 mm | 0.55 mm | 1.2 mm | 1611(0605) | 630 nm | Clear | Standard | 2-SMD No Lead | Right Angle Surface Mount | 40 mcd | 20 mA | 0.65 mm | Red | 2.2 V |
 Rohm Semiconductor | Rectangle with Flat Top | Colorless | 1.6 mm | 1.15 mm | 0.55 mm | 1.2 mm | 1611(0605) | 570 nm | Clear | Standard | 2-SMD No Lead | Right Angle Surface Mount | 40 mcd | 20 mA | 0.65 mm | Green | 2.1 V |
