WP1533 Series

Catalog

LED 4.7MM 660NM RED 6"LD PNL MNT

Part	Voltage	Lamp Color	Lens Size [diameter]	Millicandela Rating	Panel Cutout Shape	Type	Viewing Angle	Lens Color	Current	Lens Transparency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Ratings	Wavelength - Peak	Lens Style	Lens Type	Mounting Type	Configuration	Color	Voltage Rating
Kingbright WP1533AA/SRD14V-W152	14 V	Red	4.7 mm	100 mcd	Round	LED	60 °	Red	10.5 mA	Diffused	6.35 mm	0.25 in	DC	655 nm	Round with Domed Top
Kingbright WP1533AA/ID-W152	2 V	Red	4.7 mm	70 mcd	Round	LED	60 °	Red	30 mA	Diffused	6.35 mm	0.25 in		627 nm	Round with Domed Top
Kingbright WP1533AA/GD-W152	2.2 V	Green	4.7 mm	50 mcd	Round	LED	60 °	Green	25 mA	Diffused	6.35 mm	0.25 in		565 nm	Round with Domed Top
Kingbright WP1533AA/YD14V-W152	14 V	Yellow	4.7 mm	15 mcd	Round	LED	60 °	Yellow	10.5 mA	Diffused	6.35 mm	0.25 in	DC	590 nm	Round with Domed Top

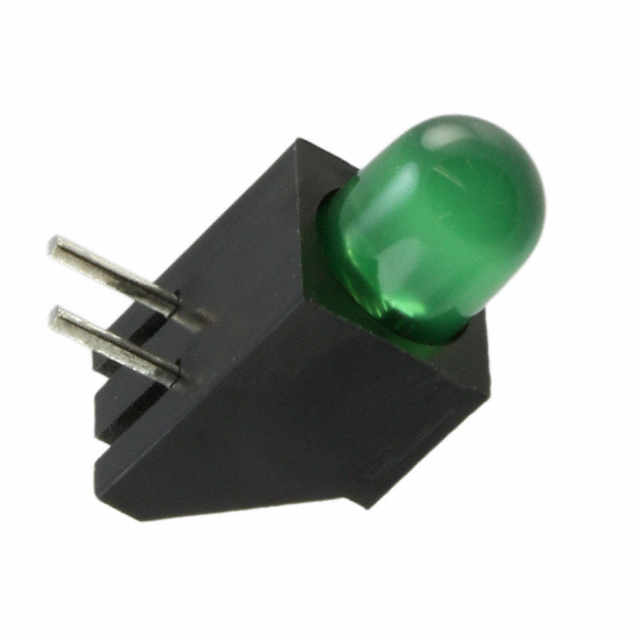

Kingbright WP1533BQ/GD			4.7 mm	50 mcd			60 °		25 mA					565 nm	Round with Domed Top	Diffused Tinted	Right Angle Through Hole	Single	Green
Kingbright WP1533AA/YD-W152	2.1 V	Yellow	4.7 mm	40 mcd	Round	LED	60 °	Yellow	30 mA	Diffused	6.35 mm	0.25 in		590 nm	Round with Domed Top
Kingbright WP1533AA/SRD-W152	1.85 V	Red	4.7 mm	700 mcd	Round	LED	60 °	Red	30 mA	Diffused	6.35 mm	0.25 in		660 nm	Round with Domed Top
Kingbright WP1533BQ/ID			4.7 mm	70 mcd			60 °		30 mA					627 nm	Round with Domed Top	Diffused Tinted	Right Angle Through Hole	Single	Red	2 V
Kingbright WP1533AA/GD14V-W152	14 V	Green	4.7 mm	25 mcd	Round	LED	60 °	Green	10.5 mA	Diffused	6.35 mm	0.25 in	DC	565 nm	Round with Domed Top

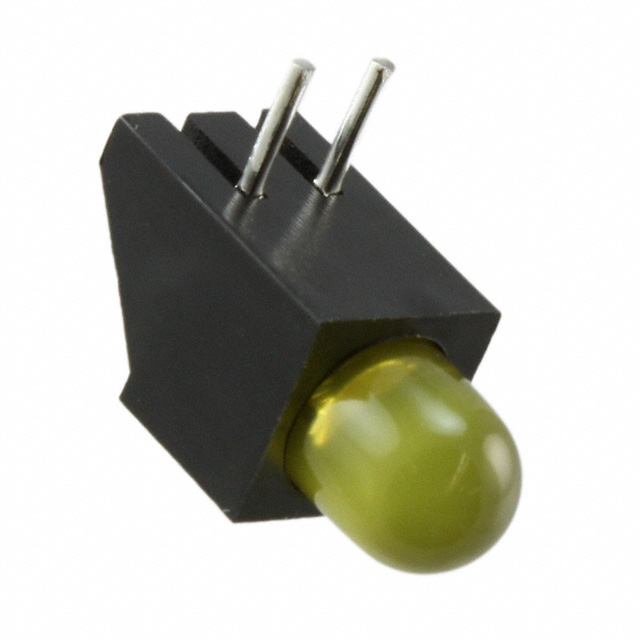

Kingbright WP1533BQ/YD			4.7 mm	40 mcd			60 °		20 mA					590 nm	Round with Domed Top	Diffused Yellow	Right Angle Through Hole	Single	Yellow	2.1 V
