ALC40A Series

Manufacturer: KEMET

Catalog

CAP ALUM 470UF 20% 400V SNAP TH

Part	Impedance	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Mounting Type	Ripple Current @ High Frequency	Lifetime @ Temp.	Capacitance	Lead Spacing	Lead Spacing	Applications	Polarization	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
KEMET ALC40A471DE400	192 mOhms	2.5 A	1.85 in	47 mm	20 %	Through Hole	4.73 A	8000 Hrs	470 µF	0.394 in	10 mm	General Purpose	Polar	Radial Can - Snap-In	1.378 "	35 mm	-40 C	105 ░C	400 V	300 mOhm
KEMET ALC40A331DF450	198 mOhms	2.53 A	2.047 in	52 mm	20 %	Through Hole	5.14 A	8000 Hrs	330 µF	0.394 in	10 mm	General Purpose	Polar	Radial Can - Snap-In	1.378 "	35 mm	-40 C	105 ░C	450 V
KEMET ALC40A331DD400	266 mOhms	1.98 A			20 %	Through Hole	3.64 A	8000 Hrs	330 µF	0.394 in	10 mm	General Purpose	Polar	Radial Can - Snap-In	1.378 "	35 mm	-40 C	105 ░C	400 V	386 mOhm	42 mm	1.654 in

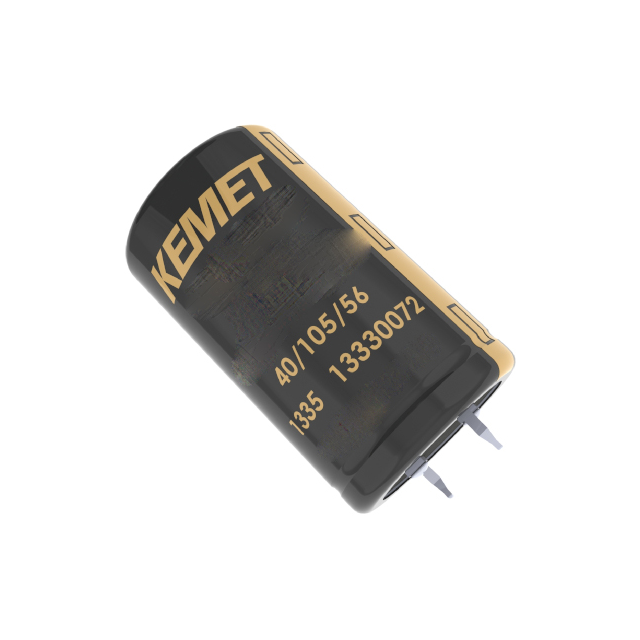

KEMET ALC40A221EC500	820 mOhms	2.03 A	1.378 "	35 mm	20 %	Through Hole	4.09 A	9000 Hrs	220 µF	0.394 in	10 mm	General Purpose	Polar	Radial Can - Snap-In	1.575 in	40 mm	-40 C	105 ░C	500 V	1.02 Ohm
KEMET ALC40A471DF400	192 mOhms	2.51 A	2.047 in	52 mm	20 %	Through Hole	4.4 A	8000 Hrs	470 µF	0.394 in	10 mm	General Purpose	Polar	Radial Can - Snap-In	1.378 "	35 mm	-40 C	105 ░C	400 V	277 mOhm
KEMET ALC40A471DH450	138 mOhms	3 A	2.441 in		20 %	Through Hole	5.82 A	8000 Hrs	470 µF	0.394 in	10 mm	General Purpose	Polar	Radial Can - Snap-In	1.378 "	35 mm	-40 C	105 ░C	450 V	232 mOhm			62 mm
