CX24A Series

Manufacturer: Serpac

Catalog

ENCLOSURES, BOXES, & CASES CX-24 WATERPROOF PKT W/ GUN METAL SEAL

Part	Design	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Color	Material	Height	Height	Container Type	Area (L x W)	Area (L x W)	Thickness	Thickness	Material Flammability Rating	Ratings	Area (L x W) [custom]	Area (L x W) [custom]

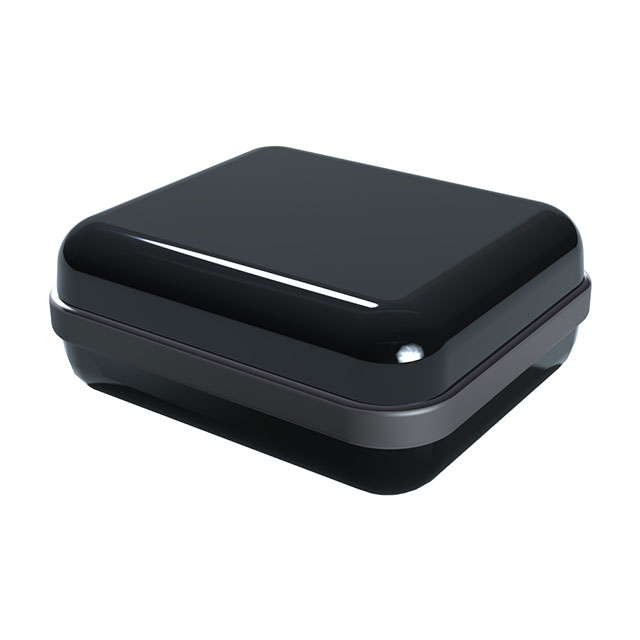

Serpac CX24ABKAGM	Cover Included Hand Held	1.45 in	36.83 mm	42.67 mm	1.68 "	Black Gunmetal	Plastic Polycarbonate	0.7 in	17.78 mm	Enclosure	2.43 in²	15.7 cm²	0.08 in	2.03 mm	UL94 V-2	12 13 IP67 NEMA 4X

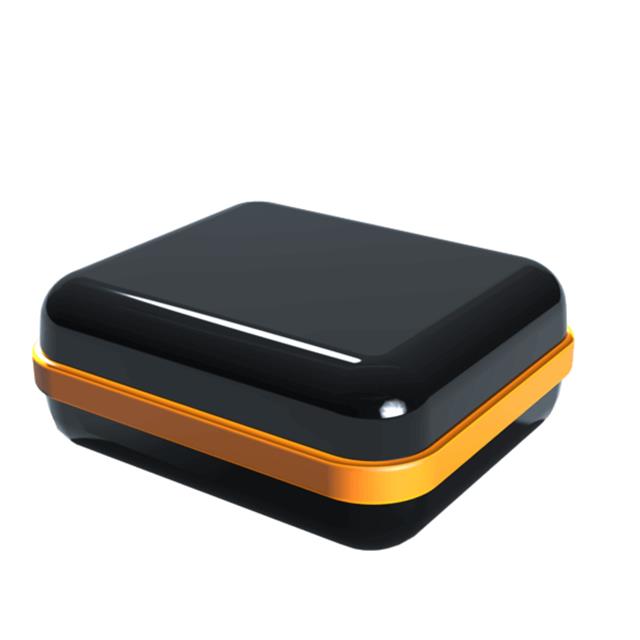

Serpac CX24ABKANO	Cover Included Hand Held	1.45 in	36.83 mm	42.67 mm	1.68 "	Black Neon Orange	Plastic Polycarbonate	0.7 in	17.78 mm	Enclosure	2.43 in²	15.7 cm²	0.08 in	2.03 mm	UL94 V-2	12 13 IP67 NEMA 4X	2.43 in˛	15.7 cm˛
Serpac CX24ABKAYL	Cover Included Hand Held	1.45 in	36.83 mm	42.67 mm	1.68 "		Plastic Polycarbonate	0.7 in	17.78 mm	Enclosure	2.43 in²	15.7 cm²	0.08 in	2.03 mm	UL94 V-2	12 13 IP67 NEMA 4X
Serpac CX24ABKAOR	Cover Included Hand Held	1.45 in	36.83 mm	42.67 mm	1.68 "	Black Orange	Plastic Polycarbonate	0.7 in	17.78 mm	Enclosure	2.43 in²	15.7 cm²	0.08 in	2.03 mm	UL94 V-2	12 13 IP67 NEMA 4X	2.43 in˛	15.7 cm˛

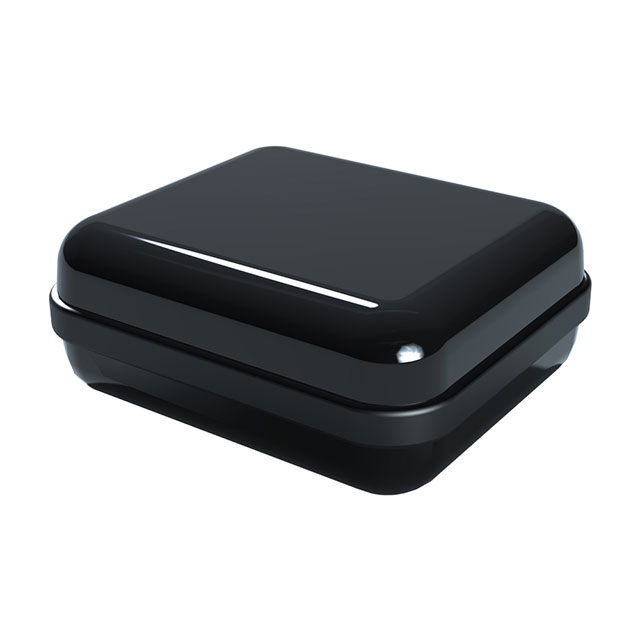

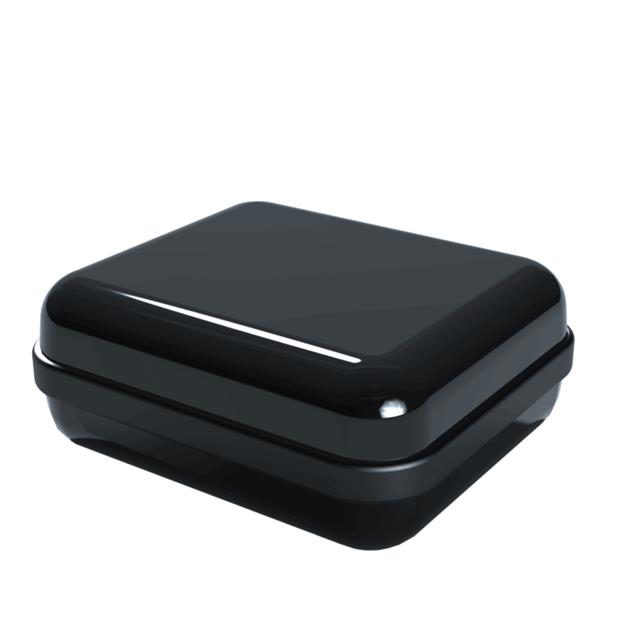

Serpac CX24ABKABK	Cover Included Hand Held	1.45 in	36.83 mm	42.67 mm	1.68 "	Black	Plastic Polycarbonate	0.7 in	17.78 mm	Enclosure	2.43 in²	15.7 cm²	0.08 in	2.03 mm	UL94 V-2	12 13 IP67 NEMA 4X
Serpac CX24ABKANG	Cover Included Hand Held	1.45 in	36.83 mm	42.67 mm	1.68 "	Black Neon Green	Plastic Polycarbonate	0.7 in	17.78 mm	Enclosure	2.43 in²	15.7 cm²	0.08 in	2.03 mm	UL94 V-2	12 13 IP67 NEMA 4X

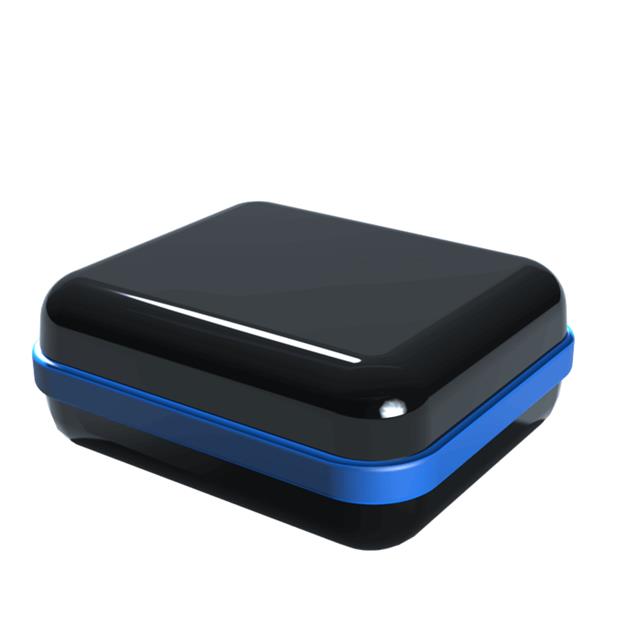

Serpac CX24ABKABL	Cover Included Hand Held	1.45 in	36.83 mm	42.67 mm	1.68 "	Black Blue	Plastic Polycarbonate	0.7 in	17.78 mm	Enclosure	2.43 in²	15.7 cm²	0.08 in	2.03 mm	UL94 V-2	12 13 IP67 NEMA 4X
