TRG30R150 Series

Catalog

AC/DC WALL MOUNT ADAPTER 15V 30W

Part	No Load Power Consumption	Applications	Region Utilized	Polarization	Power (Watts)	Efficiency	Current - Output (Max) [Max]	Input Type	Standard Number	Approval Agency	Form	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output	Output Connector	Output Connector [diameter]	Output Connector [z]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Weight [custom]	Weight [custom]

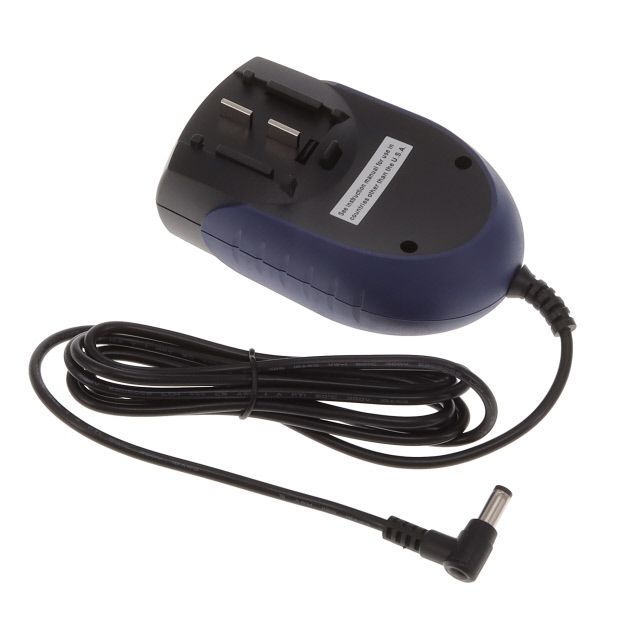

Cincon Electronics Co. LTD TRG30R150V-01E03 VI	75 mW	ITE (Commercial)	International	Positive Center	30 Watts	CoC Tier 2 Level VI	2 A	Multi-Blade (Sold Separately)	60950-1	CE cULus FCC GS PSE TUV	Wall Mount	70.9 "	1.8 m	2.27 in	2.24 in	57.6 mm	33.5 mm	1.32 in	57 mm	15 V	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	-20 ░C	60 °C	264 VAC	90 VAC	Multi-Blade (Sold Separately)

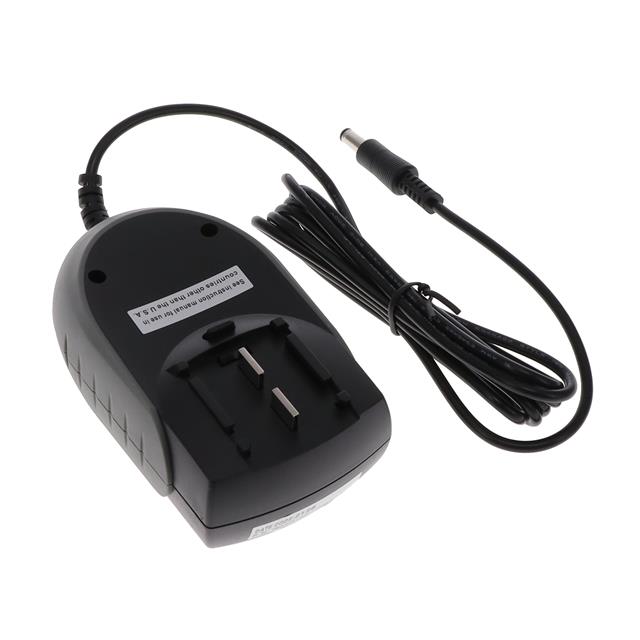

Cincon Electronics Co. LTD TRG30R150V-11E03-GY-BK VI	75 mW	ITE (Commercial)	International	Positive Center	30 Watts	CoC Tier 2 Level VI	2 A	Multi-Blade (Sold Separately)		CE cULus FCC GS PSE TUV	Wall Mount	70.9 "	1.8 m	2.27 in	4.24 "	57.6 mm	33.5 mm	1.32 in	107.8 mm	15 V	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	-20 ░C	60 °C	264 VAC	90 VAC	Multi-Blade (Sold Separately)	0.662 lb	300.28 g
