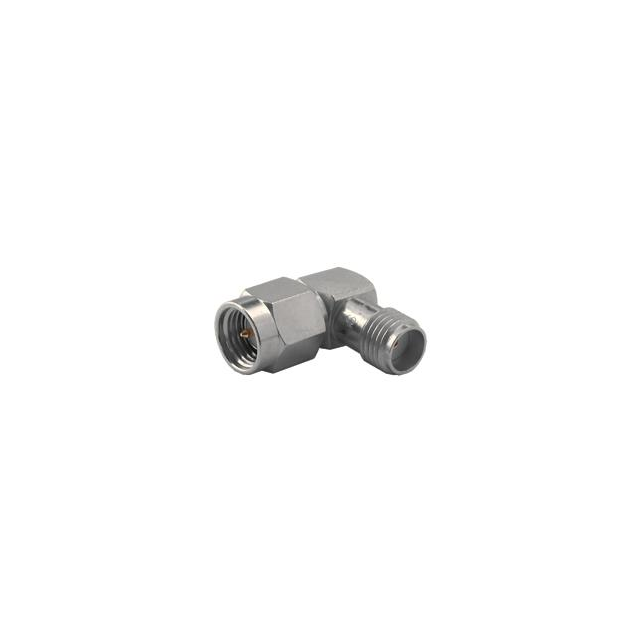

53_SMA-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K
53_SMA-50-0-2/111_NE
| Part | Body Material | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Material | Convert From (Adapter End) | Frequency - Max [Max] | Style | Adapter Type | Center Contact Plating | Convert To (Adapter End) | Adapter Series | Mounting Type | Impedance | Conversion Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Beryllium Copper | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | 500 | Beryllium Copper | Male Pin SMA Plug | 18 GHz | Right Angle | Plug to Jack | Gold | SMA Jack Female Socket | SMA to SMA | Free Hanging (In-Line) Right Angle | 50 Ohms | Same Series |
 Huber+Suhner, Inc. | Stainless Steel | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 | Beryllium Copper | Female Socket SMA Jack | 18 GHz | Right Angle | Plug to Jack | Gold | SMA Plug Male Pin | SMA to SMA | Free Hanging (In-Line) Right Angle | 50 Ohms | Same Series |
