895-071 Series
Manufacturer: EDAC Inc.
Beta
⌘K

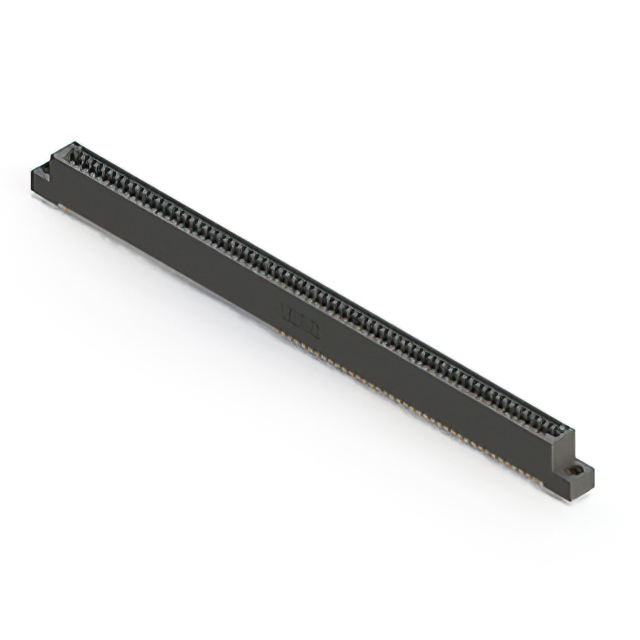

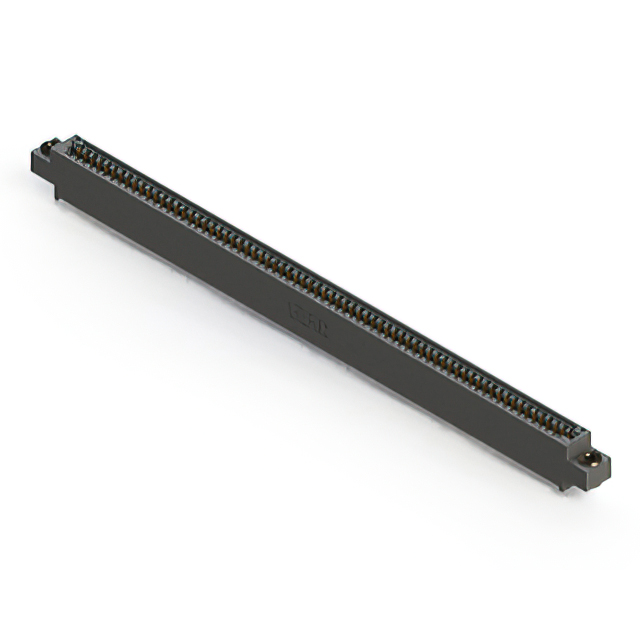

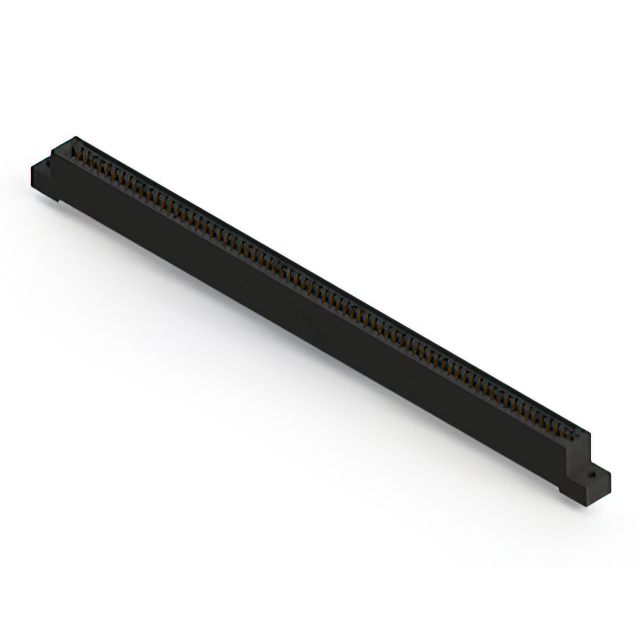

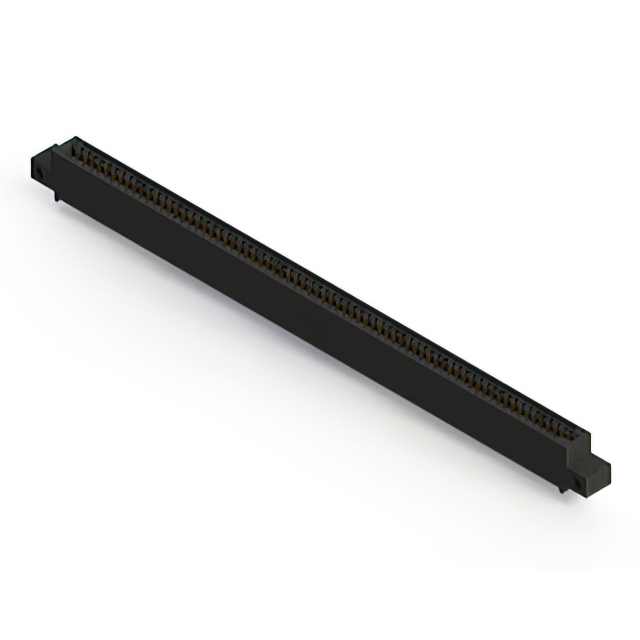

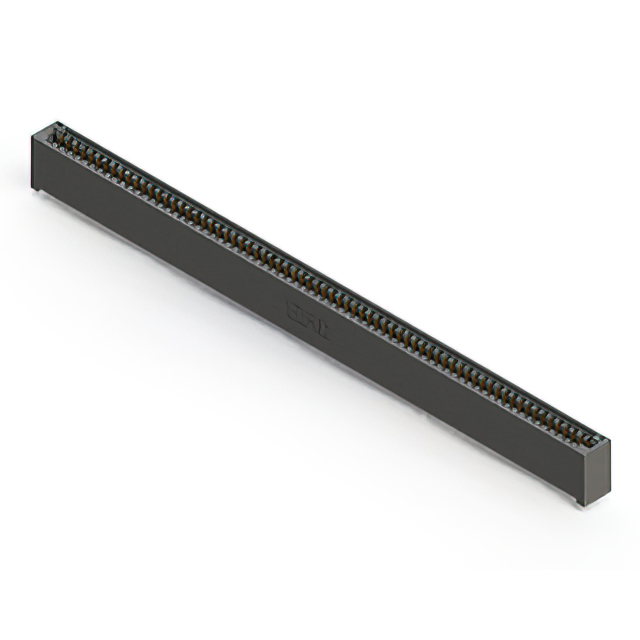

CONN EDGE SINGLE FML 71POS 0.100
| Part | Contact Type | Number of Positions/Bay/Row | Color | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Material - Insulation | Termination | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Pitch | Pitch | Termination Rows | Card Thickness [Max] | Card Thickness [Min] | Read Out | Contact Finish | Gender | Card Type | Mounting Type | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Cantilever | 71 | Black | 0.25 Ám | 10 Áin | Copper Alloy | Polyphenylene Sulfide (PPS) | Solder Eyelet(s) | 1 | 125 °C | -40 C | 3.25 mm | 0.128 " | 71 | 0.1 " | 2.54 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | Female | Non Specified - Single Edge | Through Hole | |
 EDAC Inc. | Cantilever | 71 | Black | 0.25 Ám | 10 Áin | Copper Alloy | Polyphenylene Sulfide (PPS) | Wire Wrap | 1 | 125 °C | -40 C | 71 | 0.1 " | 2.54 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | Female | Non Specified - Single Edge | Through Hole | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Cantilever | 71 | Black | 0.25 Ám | 10 Áin | Copper Alloy | Polyphenylene Sulfide (PPS) | Solder | 1 | 125 °C | -40 C | 2.95 mm | 0.116 " | 71 | 0.1 " | 2.54 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | Female | Non Specified - Single Edge | Through Hole | Floating Bobbin Top Mount Opening |
 EDAC Inc. | Cantilever | 71 | Black | 0.25 Ám | 10 Áin | Copper Alloy | Polyphenylene Sulfide (PPS) | Solder | 1 | 125 °C | -40 C | 71 | 0.1 " | 2.54 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | Female | Non Specified - Single Edge | Right Angle Through Hole | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | Cantilever | 71 | Black | 0.25 Ám | 10 Áin | Copper Alloy | Polyphenylene Sulfide (PPS) | Solder | 1 | 125 °C | -40 C | 3.25 mm | 0.128 " | 71 | 0.1 " | 2.54 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | Female | Non Specified - Single Edge | Through Hole | Side Mount Opening Unthreaded |
 EDAC Inc. | Cantilever | 71 | Black | 0.25 Ám | 10 Áin | Copper Alloy | Polyphenylene Sulfide (PPS) | Solder | 1 | 125 °C | -40 C | 3.25 mm | 0.128 " | 71 | 0.1 " | 2.54 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | Female | Non Specified - Single Edge | Through Hole | Side Mount Opening Unthreaded |
 EDAC Inc. | Cantilever | 71 | Black | 0.25 Ám | 10 Áin | Copper Alloy | Polyphenylene Sulfide (PPS) | Solder | 1 | 125 °C | -40 C | 3.25 mm | 0.128 " | 71 | 0.1 " | 2.54 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | Female | Non Specified - Single Edge | Through Hole | Flush Mount Top Opening Unthreaded |
 EDAC Inc. | Cantilever | 71 | Black | 0.25 Ám | 10 Áin | Copper Alloy | Polyphenylene Sulfide (PPS) | Wire Wrap | 1 | 125 °C | -40 C | 71 | 0.1 " | 2.54 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | Female | Non Specified - Single Edge | Through Hole | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | Cantilever | 71 | Black | 0.25 Ám | 10 Áin | Copper Alloy | Polyphenylene Sulfide (PPS) | Wire Wrap | 1 | 125 °C | -40 C | 3.96 mm | 0.156 " | 71 | 0.1 " | 2.54 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | Female | Non Specified - Single Edge | Through Hole | |
 EDAC Inc. | Cantilever | 71 | Black | 0.25 Ám | 10 Áin | Copper Alloy | Polyphenylene Sulfide (PPS) | Solder | 1 | 125 °C | -40 C | 3.25 mm | 0.128 " | 71 | 0.1 " | 2.54 mm | 1 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | Gold | Female | Non Specified - Single Edge | Through Hole |
