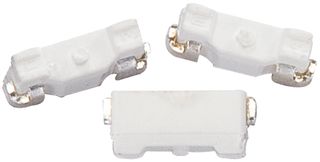

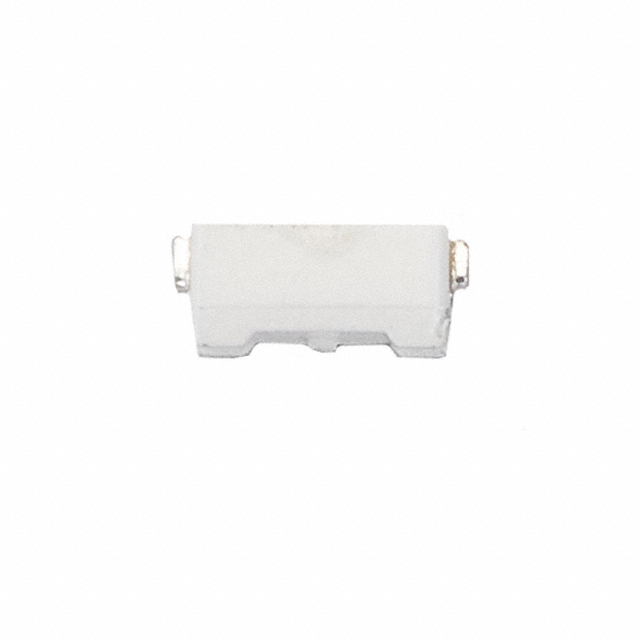

SMS1105 Series

Catalog

LED, YELLOW, SMD, PLCC-2, 20 MA, 2.2 V, 596 NM

Part	Package / Case	Viewing Angle	Supplier Device Package	Millicandela Rating	Height (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Dominant	Lens Size [x]	Lens Size [y]	Lens Color	Color	Lens Style	Configuration	Current - Test	Lens Transparency	Voltage - Forward (Vf) (Typ)	Mounting Type

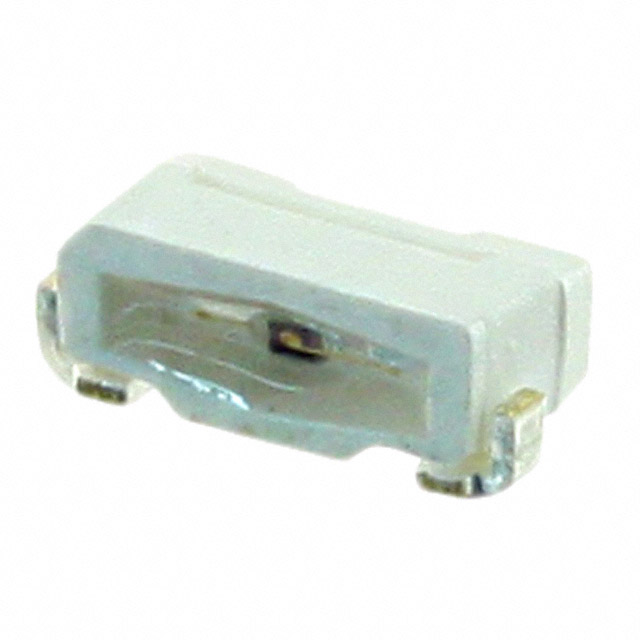

Bivar Inc. SMS1105YC	2-SMD J-Lead	120 °	2-PLCC	250 mcd	0.8 mm	1.2 mm	2.8 mm	592 nm	2.5 mm	0.8 mm	Colorless	Yellow	Rectangle with Flat Top	Standard	20 mA	Clear	2.2 V	Right Angle Surface Mount
Bivar Inc. SMS1105RC	2-SMD J-Lead	120 °	2-PLCC	250 mcd	0.8 mm	1.2 mm	2.8 mm	626 nm	2.5 mm	0.8 mm	Colorless	Red	Rectangle with Flat Top	Standard	20 mA	Clear	2.2 V	Right Angle Surface Mount

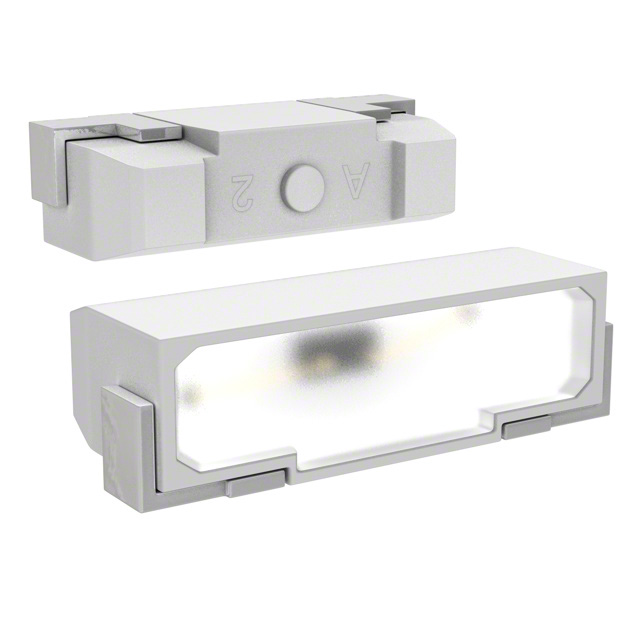

Bivar Inc. SMS1105UWDW	2-SMD J-Lead	120 °	2-PLCC	1750 mcd	0.8 mm	1.2 mm	2.8 mm		2.5 mm	0.8 mm		Warm White	Rectangle with Flat Top	Standard	20 mA	Diffused	3.2 V	Right Angle Surface Mount
Bivar Inc. SMS1105PGC	2-SMD J-Lead	120 °	2-PLCC	2100 mcd	0.8 mm	1.2 mm	2.8 mm	529 nm	2.5 mm	0.8 mm	Colorless	Green	Rectangle with Flat Top	Standard	20 mA	Clear	3.1 V	Right Angle Surface Mount
Bivar Inc. SMS1105BWC	2-SMD J-Lead	120 °	2-PLCC	450 mcd	0.8 mm	1.2 mm	2.8 mm	471 nm	2.5 mm	0.8 mm	Colorless	Blue	Rectangle with Flat Top	Standard	20 mA	Clear	3.4 V	Right Angle Surface Mount
Bivar Inc. SMS1105OC	2-SMD J-Lead	120 °	2-PLCC	600 mcd	0.8 mm	1.2 mm	2.8 mm	606 nm	2.5 mm	0.8 mm	Colorless		Rectangle with Flat Top	Standard	20 mA	Clear	2.2 V	Right Angle Surface Mount
Bivar Inc. SMS1105UWDN	2-SMD J-Lead	120 °	2-PLCC	1200 mcd	0.8 mm	1.2 mm	2.8 mm	5500 K	2.5 mm	0.8 mm	Yellow	Neutral White	Rectangle with Flat Top	Standard	20 mA	Diffused	3.4 V	Right Angle Surface Mount
Bivar Inc. SMS1105UWDC	2-SMD J-Lead	120 °	2-PLCC	1200 mcd	0.8 mm	1.2 mm	2.8 mm	8000 K	2.5 mm	0.8 mm	Yellow	Cool White	Rectangle with Flat Top	Standard	20 mA	Diffused	3.4 V	Right Angle Surface Mount
