RJ45 Series

Manufacturer: TE Connectivity Corcom Filters

Catalog

CONN MOD JACK 8P8C R/A SHIELDED

Part	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Features	Shielding	Termination	Number of Positions/Contacts	Number of Ports	Number of Rows	LED Color	Connector Type	Contact Material	Mounting Type	Tab Direction	Contact Finish	Orientation	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
TE Connectivity Corcom Filters RJ45-8Z4	Polyester Glass Filled	50 µin	1.27 µm	Board Lock Panel Stops	Shielded	Solder	8p8c (RJ45 Ethernet)	1	1	Does Not Contain LED	Jack	Phosphor Bronze	Through Hole	Down	Gold	90 °
TE Connectivity Corcom Filters RJ45-6LC1-B	Polyester Glass Filled	50 µin	1.27 µm	Board Guide Filter	EMI Finger Shielded	Solder		1	1	Does Not Contain LED	Jack	Phosphor Bronze	Through Hole	Down	Gold	90 °	8	6
TE Connectivity Corcom Filters RJ45-6X	Polyester Glass Filled	50 µin	1.27 µm	Board Guide Panel Stops	Unshielded	Solder		1	1	Does Not Contain LED	Jack	Phosphor Bronze	Through Hole	Down	Gold	90 °	8	6
TE Connectivity Corcom Filters RJ45-6LC2-S	Polyester Glass Filled	50 µin	1.27 µm	Board Guide Filter Panel Stops	Shielded	Solder		1	1	Does Not Contain LED	Jack	Phosphor Bronze	Through Hole	Down	Gold	90 °	8	6

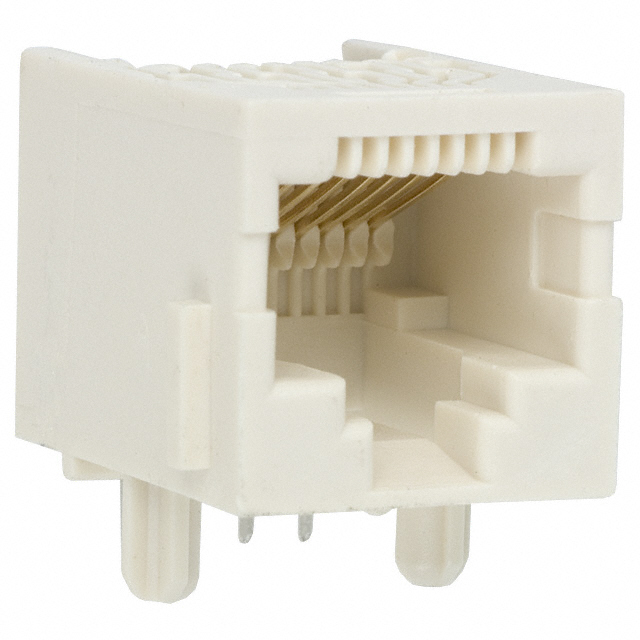

TE Connectivity Corcom Filters RJ45-8L-B	Polyester Glass Filled	50 µin	1.27 µm	Board Guide Filter Panel Stops	Unshielded	Solder	8p8c (RJ45 Ethernet)	1	1	Does Not Contain LED	Jack	Phosphor Bronze	Through Hole	Down	Gold	90 °

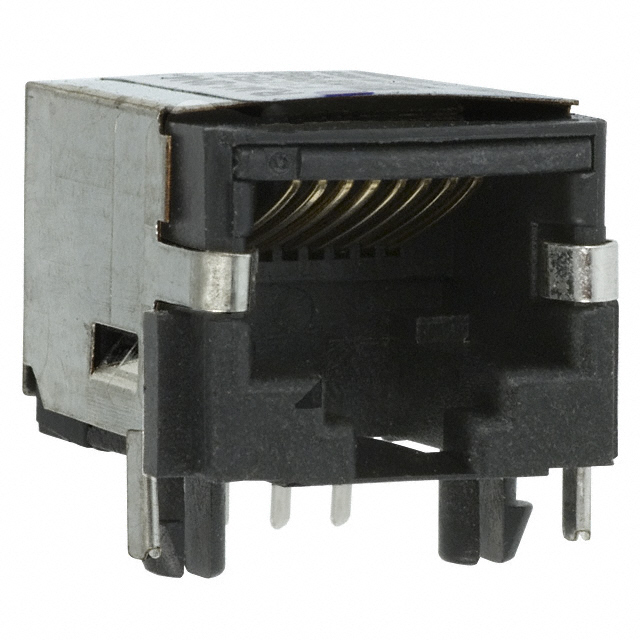

TE Connectivity Corcom Filters RJ45-8N4-S	Glass Filled Nylon Polyamide (PA)	50 µin	1.27 µm	Board Lock Filter Panel Stops	Shielded	Solder	8p8c (RJ45 Ethernet)	1	1	Does Not Contain LED	Jack	Phosphor Bronze	Through Hole	Down	Gold	90 °
TE Connectivity Corcom Filters RJ45-6LC2-B	Polyester Glass Filled	50 µin	1.27 µm	Board Guide Filter Panel Stops	Shielded	Solder		1	1	Does Not Contain LED	Jack	Phosphor Bronze	Through Hole	Down	Gold	90 °	8	6
TE Connectivity Corcom Filters RJ45-6L1-B	Polyester Glass Filled	50 µin	1.27 µm	Board Guide Filter	EMI Finger Shielded	Solder		1	1	Does Not Contain LED	Jack	Phosphor Bronze	Through Hole	Down	Gold	90 °	8	6
TE Connectivity Corcom Filters RJ45-8L1-B	Polyester Glass Filled	50 µin	1.27 µm	Board Guide Filter	EMI Finger Shielded	Solder	8p8c (RJ45 Ethernet)	1	1	Does Not Contain LED	Jack	Phosphor Bronze	Through Hole	Down	Gold	90 °

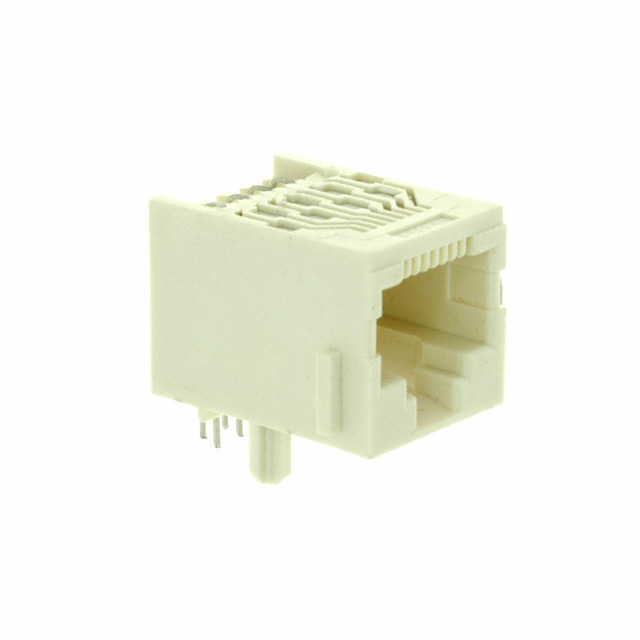

TE Connectivity Corcom Filters RJ45-8X	Polyester Glass Filled	50 µin	1.27 µm	Board Guide Panel Stops	Unshielded	Solder	8p8c (RJ45 Ethernet)	1	1	Does Not Contain LED	Jack	Phosphor Bronze	Through Hole	Down	Gold	90 °
