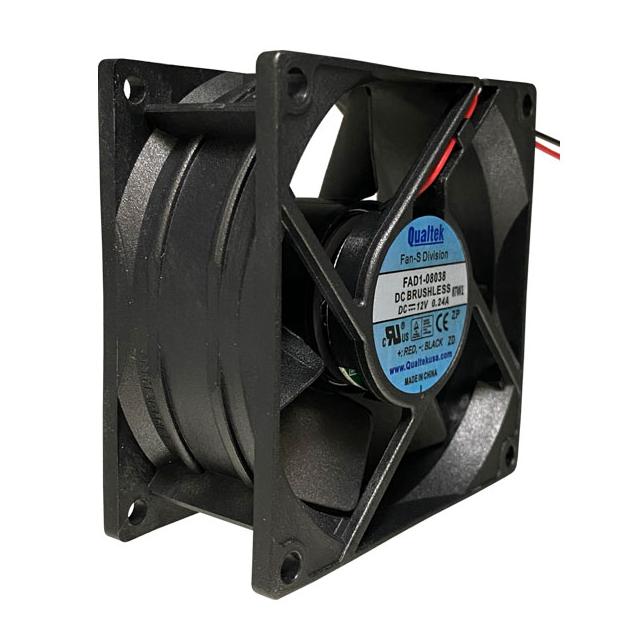

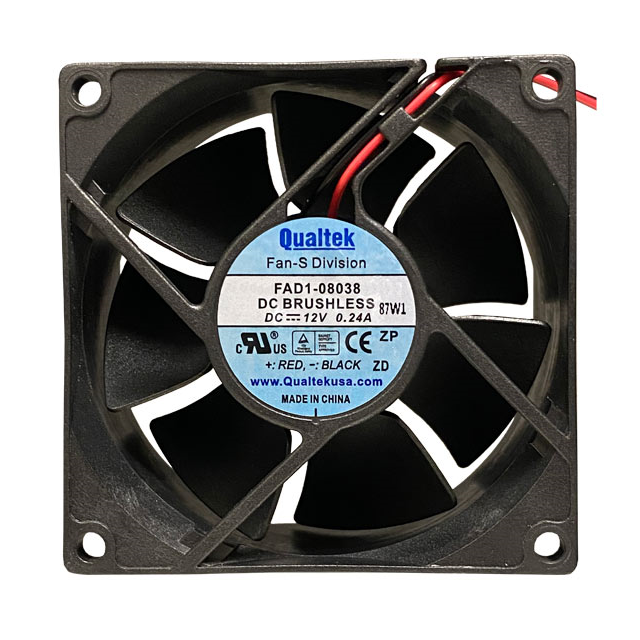

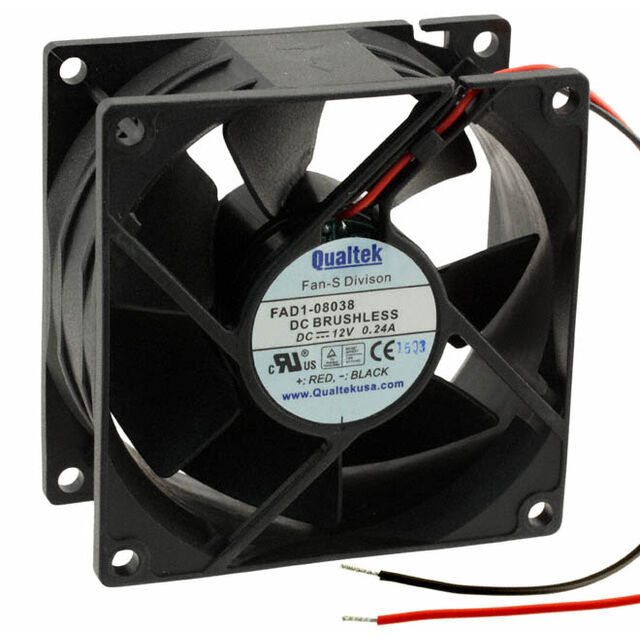

FAD1-08038 Series

Manufacturer: Qualtek

Catalog

FAN AXIAL 80.5X38MM 12VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Current Rating (Amps)	Material - Blade	Air Flow	Air Flow	Fan Type	Weight [custom]	Weight [custom]	Power (Watts)	Bearing Type	Termination	Static Pressure	Static Pressure	Size / Dimension [x]	Size / Dimension [y]	RPM	Approval Agency	Width [y]	Voltage - Rated	Noise	Operating Temperature [Max]	Operating Temperature [Min]
Qualtek FAD1-08038CBHW12	10.8 VDC	13.2 VDC	Plastic	0.26 A	Plastic	53.3 CFM	1.49 m³/min	Tubeaxial	0.264 lb	119.75 g	3.12 W	Ball	2 Wire Leads	55.3 Pa	0.222 in H2O	80.5 mm	80.5 mm	3500 RPM	CE cURus TUV	38 mm	12 VDC	39.9 dB(A)	70 °C	-10 °C
Qualtek FAD1-08038DBLW12	21.6 VDC	26.4 VDC	Plastic		Plastic	38.7 CFM	1.08 m³/min	Tubeaxial	0.264 lb	119.75 g	1.92 W	Ball	2 Wire Leads	32.9 Pa	0.132 in H2O	80.5 mm	80.5 mm	2500 RPM	CE cURus TUV	38 mm	24 VDC	32.3 dB(A)	70 °C	-10 °C
Qualtek FAD1-08038CBLW12	10.8 VDC	13.2 VDC	Plastic	100 mA	Plastic	38.7 CFM	1.08 m³/min	Tubeaxial	0.264 lb	119.75 g	1.2 W	Ball	2 Wire Leads	32.9 Pa	0.132 in H2O	80.5 mm	80.5 mm	2500 RPM	CE cURus TUV	38 mm	12 VDC	32.3 dB(A)	70 °C	-10 °C
Qualtek FAD1-08038DBHW12	21.6 VDC	26.4 VDC	Plastic	140 mA	Plastic	53.3 CFM	1.49 m³/min	Tubeaxial	0.264 lb	119.75 g	3.36 W	Ball	2 Wire Leads	55.3 Pa	0.222 in H2O	80.5 mm	80.5 mm	3500 RPM	CE cURus TUV	38 mm	24 VDC	39.9 dB(A)	70 °C	-10 °C
Qualtek FAD1-08038CBMW12	10.8 VDC	13.2 VDC	Plastic	0.17 A	Plastic	46 CFM	1.29 m³/min	Tubeaxial	0.264 lb	119.75 g		Ball	2 Wire Leads	41.6 Pa	0.167 in H2O	80.5 mm	80.5 mm	3000 RPM	CE cURus TUV	38 mm	12 VDC	36 dB	70 °C	-10 °C
