895-052 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 52POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Features	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Read Out	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Number of Rows [custom]	Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Card Type	Contact Finish	Mounting Type	Contact Type	Termination	Gender	Flange Feature [diameter]	Flange Feature [diameter]	Termination Rows	Number of Rows
EDAC Inc. 895-052-555-807	2	Polyphenylene Sulfide (PPS)	Card Extender	26	0.07 in 1.78 mm	0.054 in 1.37 mm	52	Dual	0.25 Ám	10 Áin	M3 Threaded Insert Top Mount Opening	2	Black	Copper Alloy	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold	Board Edge Straddle Mount	Cantilever	Solder	Female

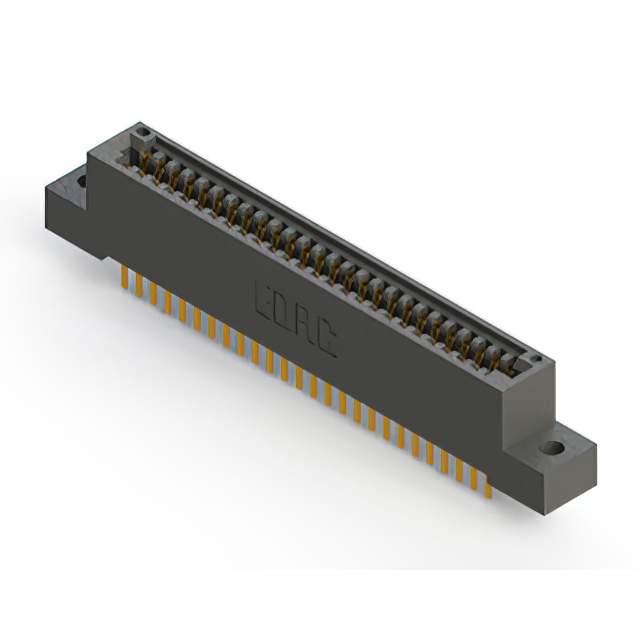

EDAC Inc. 895-052-520-202	2	Polyphenylene Sulfide (PPS)		26	0.07 in 1.78 mm	0.054 in 1.37 mm	52	Dual	0.25 Ám	10 Áin	Flush Mount Top Opening Unthreaded	2	Black	Copper Alloy	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold	Through Hole	Cantilever	Solder	Female	3.25 mm	0.128 "

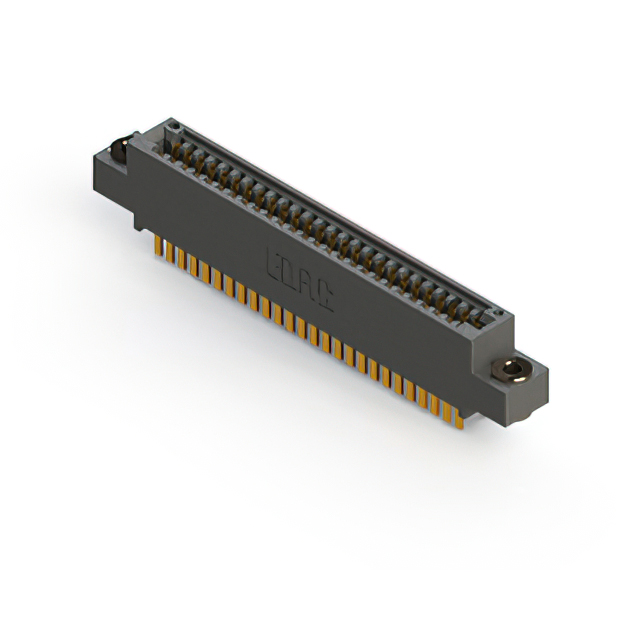

EDAC Inc. 895-052-544-503	2	Polyphenylene Sulfide (PPS)		26	0.07 in 1.78 mm	0.054 in 1.37 mm	52	Dual	0.25 Ám	10 Áin	Floating Bobbin Top Mount Opening	2	Black	Copper Alloy	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold	Through Hole	Cantilever	Wire Wrap	Female	2.95 mm	0.116 "

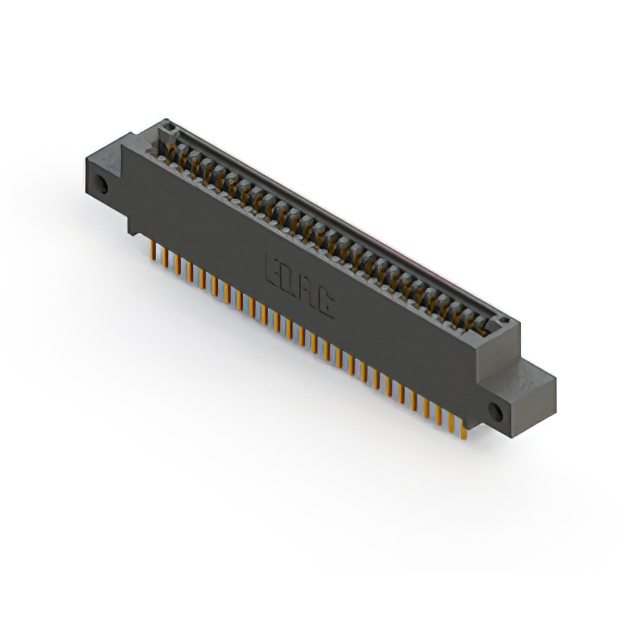

EDAC Inc. 895-052-542-512	2	Polyphenylene Sulfide (PPS)		26	0.07 in 1.78 mm	0.054 in 1.37 mm	52	Dual	0.25 Ám	10 Áin	Side Mount Opening Unthreaded	2	Black	Copper Alloy	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold	Through Hole	Cantilever	Wire Wrap	Female	3.25 mm	0.128 "

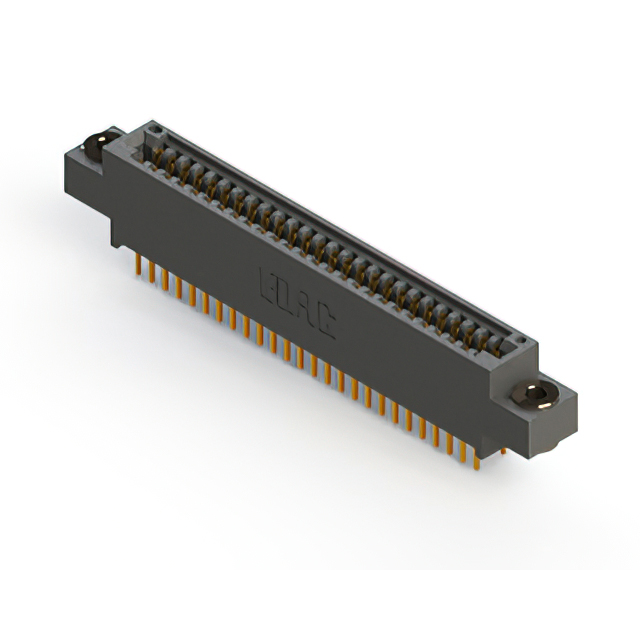

EDAC Inc. 895-052-523-803	2	Polyphenylene Sulfide (PPS)		26	0.07 in 1.78 mm	0.054 in 1.37 mm	52	Dual	0.25 Ám	10 Áin	Floating Bobbin Top Mount Opening	2	Black	Copper Alloy	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold	Through Hole	Cantilever	Solder	Female	2.95 mm	0.116 "

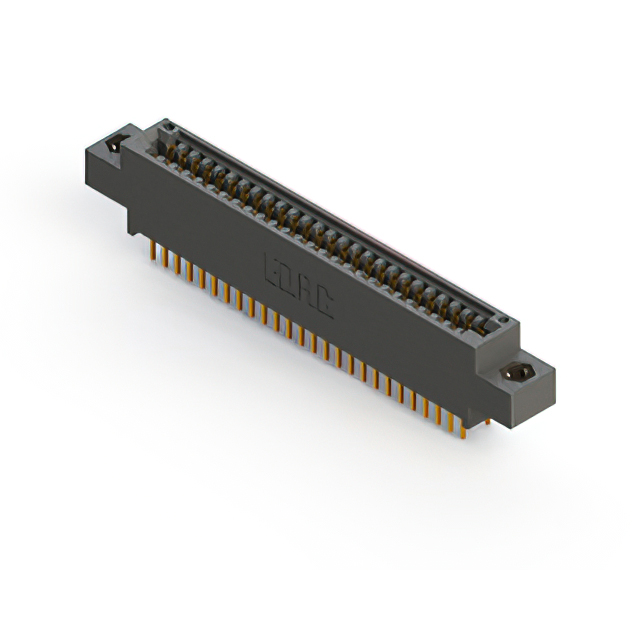

EDAC Inc. 895-052-542-808	2	Polyphenylene Sulfide (PPS)		26	0.07 in 1.78 mm	0.054 in 1.37 mm	52	Dual	0.25 Ám	10 Áin	4-40 Threaded Insert Top Mount Opening	2	Black	Copper Alloy	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold	Through Hole	Cantilever	Wire Wrap	Female
EDAC Inc. 895-052-500-402		Polyphenylene Sulfide (PPS)		52	0.07 in 1.78 mm	0.054 in 1.37 mm	52	Single	0.25 Ám	10 Áin			Black	Copper Alloy	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Single Edge	Gold	Through Hole	Cantilever	Solder Eyelet(s)	Female	3.25 mm	0.128 "	1	1
EDAC Inc. 895-052-540-404		Polyphenylene Sulfide (PPS)		52	0.07 in 1.78 mm	0.054 in 1.37 mm	52	Single	0.25 Ám	10 Áin			Black	Copper Alloy	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Single Edge	Gold	Through Hole	Cantilever	Wire Wrap	Female	3.96 mm	0.156 "	1	1
EDAC Inc. 895-052-540-608		Polyphenylene Sulfide (PPS)		52	0.07 in 1.78 mm	0.054 in 1.37 mm	52	Single	0.25 Ám	10 Áin	4-40 Threaded Insert Top Mount Opening		Black	Copper Alloy	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Single Edge	Gold	Through Hole	Cantilever	Wire Wrap	Female			1	1

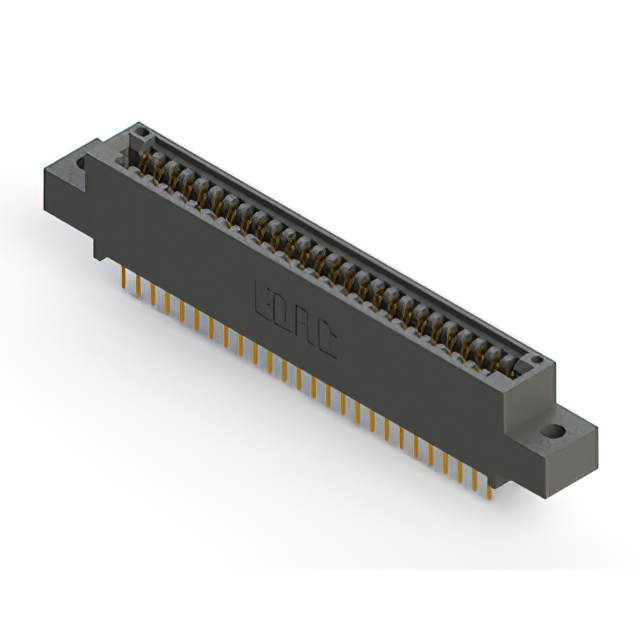

EDAC Inc. 895-052-524-502	2	Polyphenylene Sulfide (PPS)		26	0.07 in 1.78 mm	0.054 in 1.37 mm	52	Dual	0.25 Ám	10 Áin		2	Black	Copper Alloy	125 °C	-40 C	0.1 "	2.54 mm	Non Specified - Dual Edge	Gold	Through Hole	Cantilever	Solder	Female	3.25 mm	0.128 "
