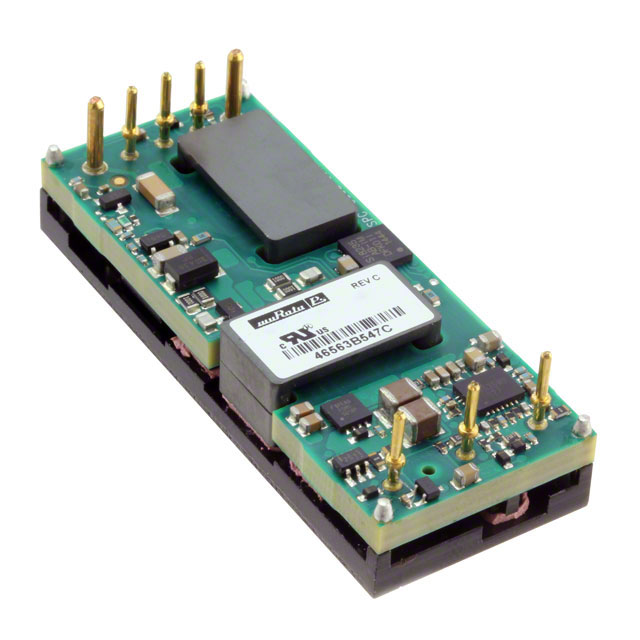

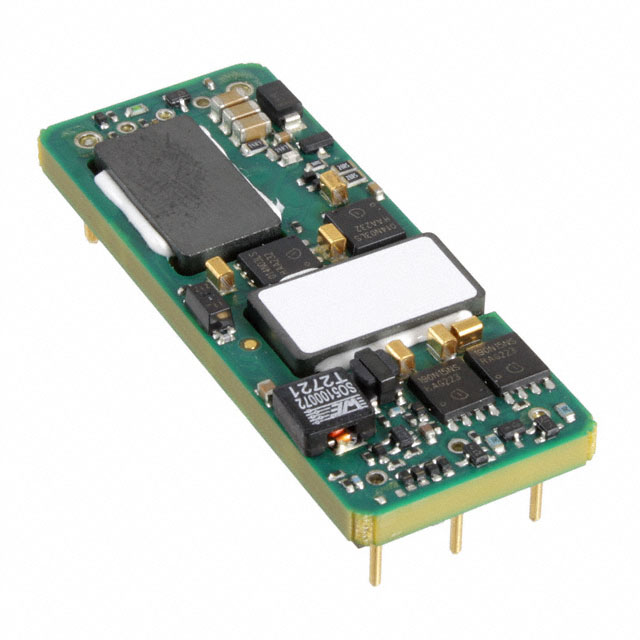

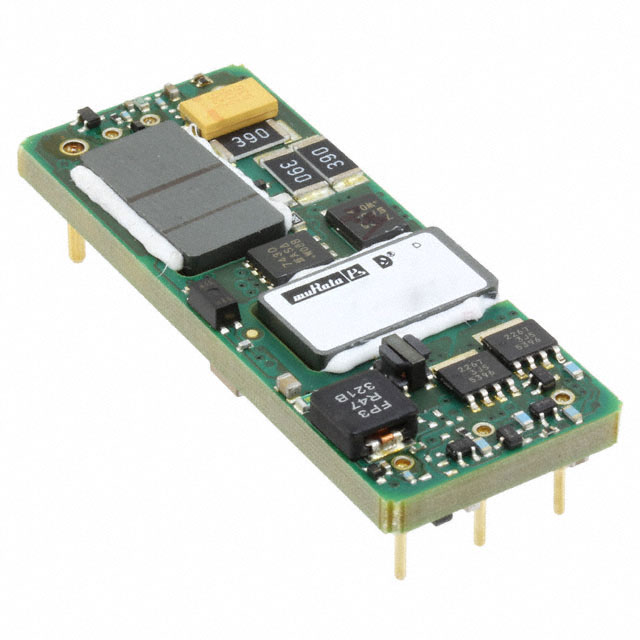

UWE-3.3 Series

Catalog

DC DC CONVERTER 3.3V 66W

Part	Features	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Isolation	Type	Control Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Power (Watts)	Voltage - Input (Max) [Max]	Package / Case	Number of Outputs	Efficiency
Murata Electronics UWE-3.3/20-Q48P-C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	20 A	18 V	ITE (Commercial)	85 °C	-40 C	3.3 V	2250 VDC	Isolated Module	Active High Enable	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	66 W	75 V	8-DIP Module 1/8 Brick	1
Murata Electronics UWE-3.3/20-Q12PB-C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	20 A	9 V	ITE (Commercial)	85 °C	-40 C	3.3 V	1.5 kV	Isolated Module	Active High Enable	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	66 W	36 V	8-DIP Module 1/8 Brick	1	89 %
Murata Electronics UWE-3.3/20-Q48NB-C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	20 A	18 V	ITE (Commercial)	85 °C	-40 C	3.3 V	2250 VDC	Isolated Module	Active Low Enable	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	66 W	75 V	8-DIP Module 1/8 Brick	1
Murata Electronics UWE-3.3/30-Q48NB-C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	30 A	18 V	ITE (Commercial)	85 °C	-40 C	3.3 V	2250 VDC	Isolated Module	Active Low Enable	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	99 W	75 V	8-DIP Module 1/8 Brick	1
Murata Electronics UWE-3.3/30-Q48P-C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	30 A	18 V	ITE (Commercial)	85 °C	-40 C	3.3 V	2250 VDC	Isolated Module	Active High Enable	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	99 W	75 V	8-DIP Module 1/8 Brick	1
Murata Electronics UWE-3.3/20-Q48PB-C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	20 A	18 V	ITE (Commercial)	85 °C	-40 C	3.3 V	2250 VDC	Isolated Module	Active High Enable	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	66 W	75 V	8-DIP Module 1/8 Brick	1
Murata Electronics UWE-3.3/30-Q48N-C	OCP OTP OVP Remote On/Off SCP UVLO	Through Hole	30 A	18 V	ITE (Commercial)	85 °C	-40 C	3.3 V	2250 VDC	Isolated Module	Active Low Enable	2.3 in	58.4 mm	8.6 mm	0.34 in	22.9 mm	0.9 in	99 W	75 V	8-DIP Module 1/8 Brick	1
