ME501 Series

Catalog

BRIDGE RECT 3P 1.6KV 100A MODULE

Part	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Voltage - Forward (Vf) (Max) @ If	Diode Type	Voltage - Peak Reverse (Max)	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Supplier Device Package	Voltage - Forward (Vf) (Max) @ If [Max]

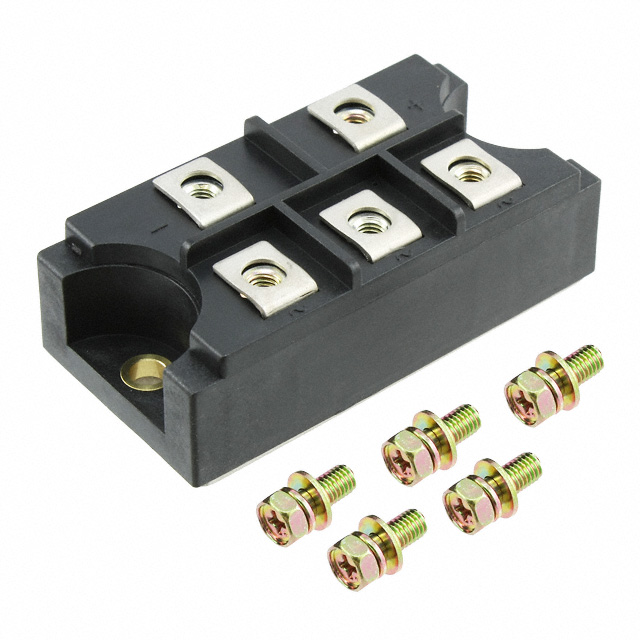

Powerex Inc. ME501610	Chassis Mount	Module	-40 °C	150 °C	Standard	1.2 V	Three Phase	1.6 kV	100 A	10 mA	Module
Powerex Inc. ME501206	Chassis Mount	Module	-40 °C	150 °C	Standard		Three Phase	1.2 kV	60 A	10 mA	Module	1.3 V

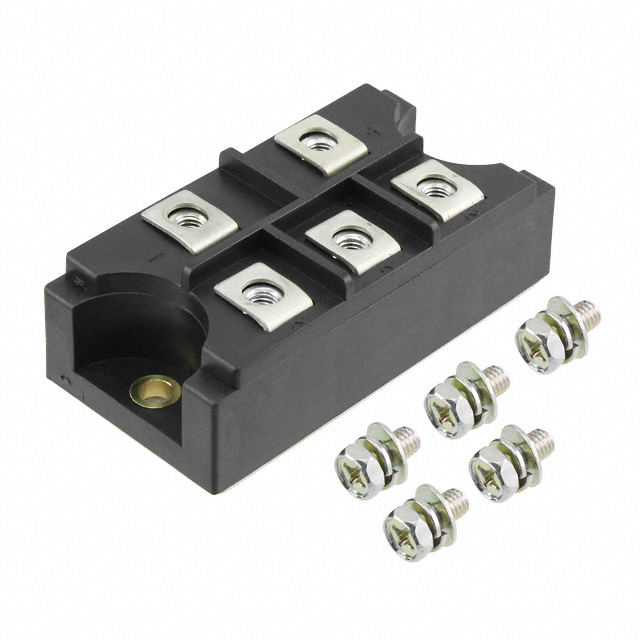

Powerex Inc. ME501210	Chassis Mount	Module	-40 °C	150 °C	Standard	1.2 V	Three Phase	1.2 kV	100 A	10 mA	Module
