E3JM-DS70 Series

Catalog

SENSOR REFLECTIVE 700MM RELAY

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Distance	Sensing Distance	Connection Method	Ingress Protection	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Method	Light Source	Output Configuration
Omron Automation and Safety E3JM-DS70M4-US	12 VDC 24 V	240 VDC 240 VAC	700 mm	27.559 in	Terminal Block	IP66 IEC	30 ms	55 °C	-25 °C	Diffuse Reflective	Infrared (950nm)	Dark-ON/Light-ON - Selectable
Omron Automation and Safety E3JM-DS70R4-US	12 VDC 24 V	240 VDC	700 mm	27.559 in	Terminal Block	IEC IP66 IP66 IEC		55 °C	-25 °C	Diffuse Reflective	Infrared (950nm)	Light-On/Dark-On
Omron Automation and Safety E3JM-DS70M4T-G	12 VDC 24 V	240 VDC	700 mm	27.559 in	Terminal Block	IEC IP66 IP66 IEC	30 ms	55 °C	-25 °C	Diffuse Reflective	Infrared (950nm)	Dark-ON/Light-ON - Selectable
Omron Automation and Safety E3JM-DS70M4T-US	12 VDC 24 V	240 VDC	700 mm	27.559 in	Terminal Block	IEC IP66 IP66 IEC	30 ms	55 °C	-25 °C	Diffuse Reflective	Infrared (950nm)	Dark-ON/Light-ON - Selectable

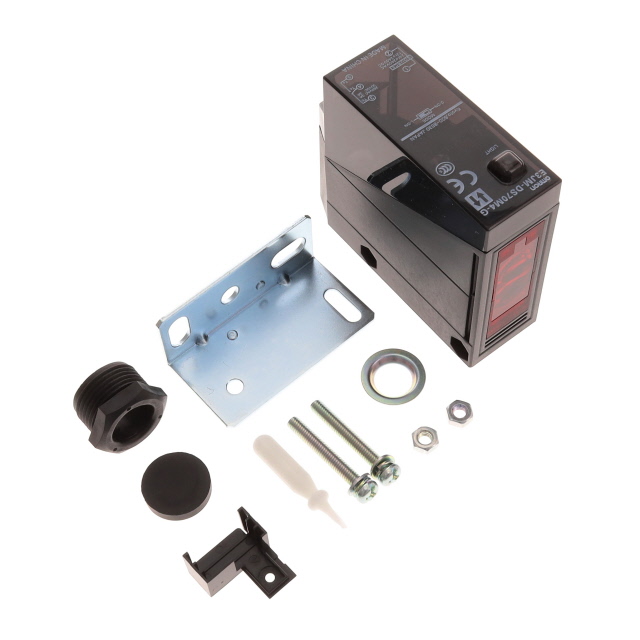

Omron Automation and Safety E3JM-DS70M4-G	12 VDC 24 V	240 VDC	700 mm	27.559 in	Terminal Block	IEC IP66 IP66 IEC	30 ms	55 °C	-25 °C	Diffuse Reflective	Infrared (950nm)	Dark-ON/Light-ON - Selectable
