G-1328S Series

Catalog

SWITCH SLIDE DP3T 13A 125V

Part	Mechanical Life	Switch Travel	Actuator Material	Electrical Life	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Contact Finish	Voltage Rating - DC	Voltage Rating - AC	Termination Style	Switch Function	Circuit	Contact Material	Current Rating (Amps)	Contact Timing	Actuator Type

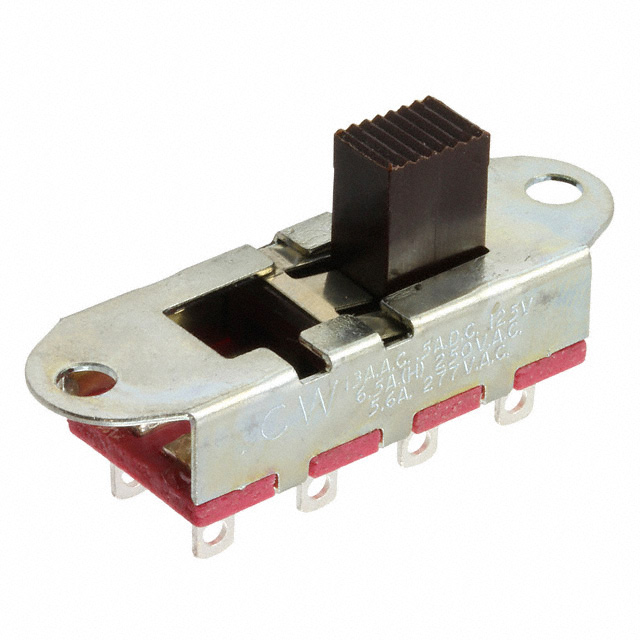

CW Industries G-1328S-0025	10000 Steps	6.25 mm	Nylon 6/6 Polyamide (PA66)	6000 Cycles	Panel Mount	-10 °C	104 °C	8.74 mm	Silver	125 VDC	125 V	Solder Lug	On-On-On	DP3T	Copper	13 A 500 mA	Not Specified	Standard
CW Industries G-1328S-0019	10000 Steps	6.25 mm	Nylon 6/6 Polyamide (PA66)	6000 Cycles	Panel Mount	-10 °C	104 °C	8.74 mm	Silver	125 VDC	125 V	Solder Lug	On-On-On	DP3T	Copper	13 A 500 mA	Not Specified	Standard
CW Industries G-1328S-0020	10000 Steps	6.25 mm	Nylon 6/6 Polyamide (PA66)	6000 Cycles	Panel Mount	-10 °C	104 °C	8.74 mm	Silver	125 VDC	125 V	Solder Lug	On-On-On	DP3T	Copper	13 A 500 mA	Not Specified	Standard
CW Industries G-1328S-0021	10000 Steps	6.25 mm	Nylon 6/6 Polyamide (PA66)	6000 Cycles	Panel Mount	-10 °C	104 °C	15.88 mm	Silver	125 VDC	125 V	Solder Lug	On-On-On	DP3T	Copper	13 A 500 mA	Not Specified	Standard

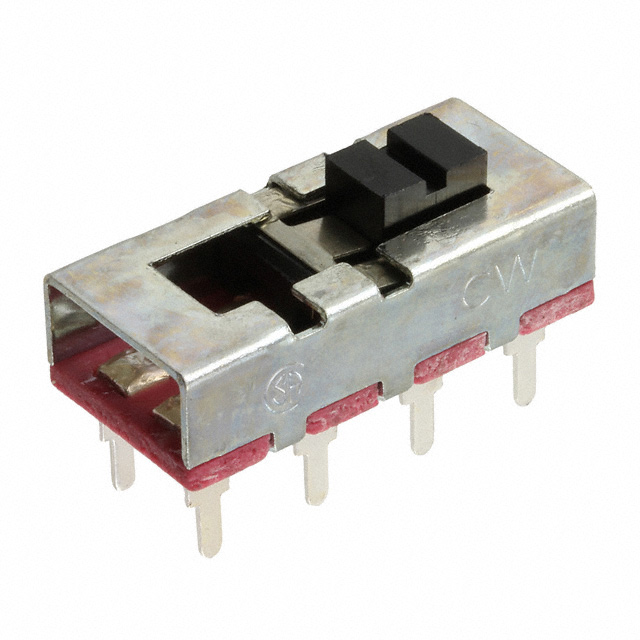

CW Industries G-1328S-0041	10000 Steps	6.25 mm	Nylon 6/6 Polyamide (PA66)	6000 Cycles	Through Hole	-10 °C	104 °C	3.18 mm	Silver	125 VDC	125 V	PC Pin	On-On-On	DP3T	Copper	13 A 500 mA	Not Specified	Screwdriver Slot
CW Industries G-1328S-0031	10000 Steps	6.25 mm	Nylon 6/6 Polyamide (PA66)	6000 Cycles	Panel Mount	-10 °C	104 °C	3.18 mm	Silver	125 VDC	125 V	PC Pin	On-On-On	DP3T	Copper	13 A 500 mA	Not Specified	Screwdriver Slot
CW Industries G-1328S-0024	10000 Steps	6.25 mm	Nylon 6/6 Polyamide (PA66)	6000 Cycles	Panel Mount	-10 °C	104 °C	8.74 mm	Silver	125 VDC	125 V	Solder Lug	On-On-On	DP3T	Copper	13 A 500 mA	Not Specified	Standard
