292252 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

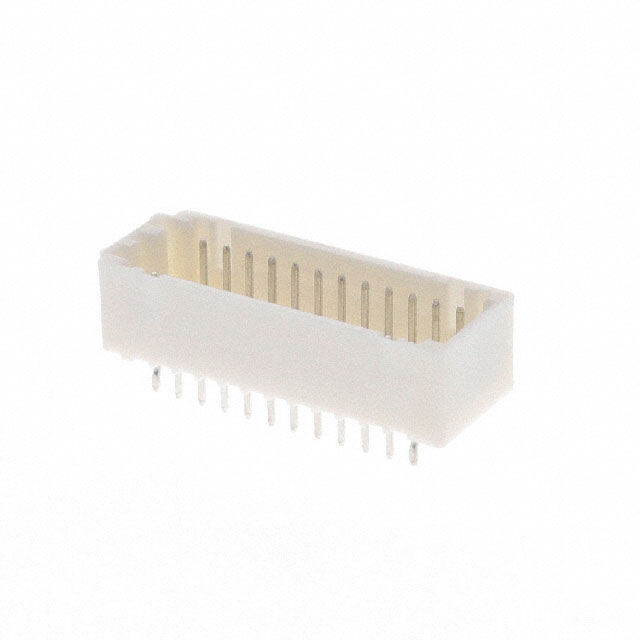

CONN HEADER VERT 24POS 2MM
| Part | Insulation Color | Contact Type | Pitch - Mating [x] | Pitch - Mating [x] | Style | Number of Rows | Applications | Insulation Material | Insulation Height | Insulation Height | Current Rating (Amps) | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Post | Contact Length - Post [x] | Mounting Type | Connector Type | Overall Contact Length | Overall Contact Length | Contact Shape | Material Flammability Rating | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Contact Material | Termination | Fastening Type | Contact Finish - Post | Voltage Rating | Shrouding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Natural | Male Pin | 0.079 in | 2 mm | Board to Cable/Wire | 2 | General Purpose | Polyamide (PA66) Nylon 6/6 | 0.295 in | 7.5 mm | Varies by Wire Gauge | 6.5 mm | 0.256 in | 3.2 mm | 0.126 in | Through Hole | Header | 9.8 mm | 0.386 in | Circular | UL94 V-0 | 0.185 in | 4.7 mm | All | Brass | Solder | Detent Lock | Tin | 125 VAC | Shrouded - 4 Wall | 24 |
