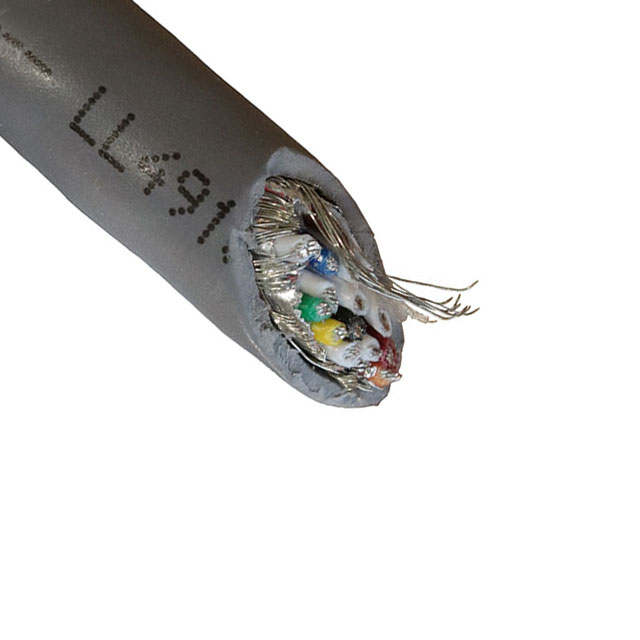

5341C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 14COND 22AWG
| Part | Shield Coverage | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Ratings | Number of Conductors | Cable Type | Shield Material | Voltage | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Shield Type | Features | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Communication Control | 1.6 mm | 0.063 in | 22 AWG | ISO 10993 | 14 | Multi-Pair | Copper Tinned Suprashield® | 300 V | Poly-Vinyl Chloride (PVC) | 7 | 30 AWG | 10.31 mm | 0.406 in | Slate | Braid Foil | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | -35 °C | 105 ░C | 500 ' | 152.4 m | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | 70 % 100 % | Communication Control | 1.6 mm | 0.063 in | 22 AWG | ISO 10993 | 14 | Multi-Pair | Copper Tinned Suprashield® | 300 V | Poly-Vinyl Chloride (PVC) | 7 | 30 AWG | 10.31 mm | 0.406 in | Slate | Braid Foil | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | ||||
 ALPHA WIRE | 70 % 100 % | Communication Control | 1.6 mm | 0.063 in | 22 AWG | ISO 10993 | 14 | Multi-Pair | Copper Tinned Suprashield® | 300 V | Poly-Vinyl Chloride (PVC) | 7 | 30 AWG | 10.31 mm | 0.406 in | Slate | Braid Foil | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | -35 °C | 105 ░C | Poly-Vinyl Chloride (PVC) | 1000 ft | 304.8 m |
