SA03-11 Series

Catalog

DISPLAY 7-SEG 0.3" SGL RED 14DIP

Part	Display Type	Digit/Alpha Size	Digit/Alpha Size	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power Dissipation (Max) [Max]	Package / Case	Package / Case	Package / Case	Millicandela Rating	Color	Wavelength - Peak	Number of Characters	Common Pin	Voltage - Forward (Vf) (Typ)

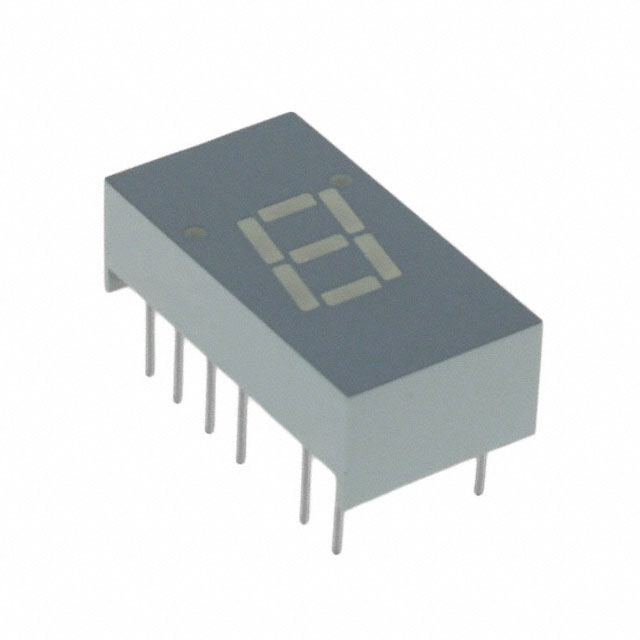

Kingbright SA03-11SRWA	7-Segment	7.62 mm	0.3 in	20 mA	10.16 mm	19.06 mm	6.1 mm	0.75 in	0.24 in	0.4 "	75 mw	14-DIP	0.3 in	7.62 mm	42 mcd	Red	660 nm	1	Common Anode	1.85 V

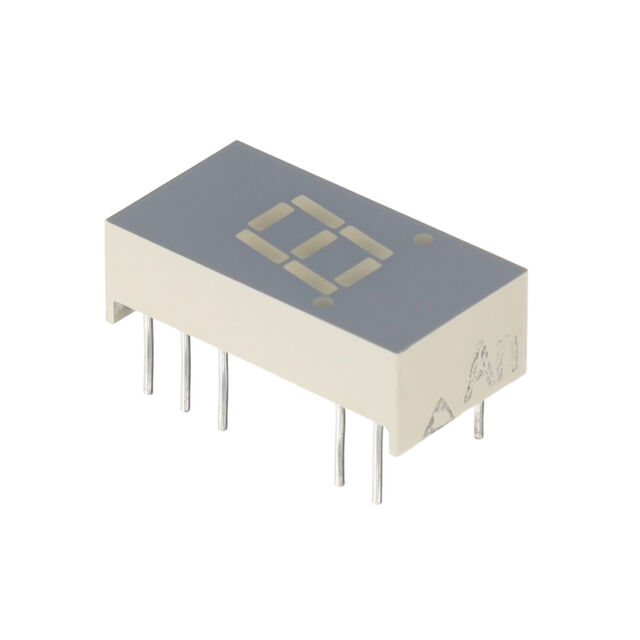

Kingbright SA03-11SURKWA	7-Segment	7.62 mm	0.3 in	20 mA	10.16 mm	19.06 mm	6.1 mm	0.75 in	0.24 in	0.4 "	75 mw	14-DIP	0.3 in	7.62 mm	67 mcd	Red	645 nm	1	Common Anode	1.95 V

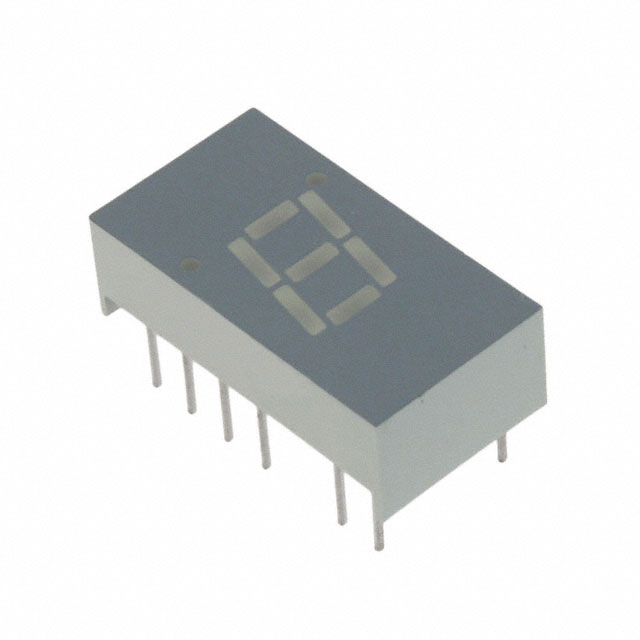

Kingbright SA03-11GWA	7-Segment	7.62 mm	0.3 in	20 mA	10.16 mm	19.06 mm	6.1 mm	0.75 in	0.24 in	0.4 "	62.5 mW	14-DIP	0.3 in	7.62 mm	11 mcd	Green	565 nm	1	Common Anode	2.2 V

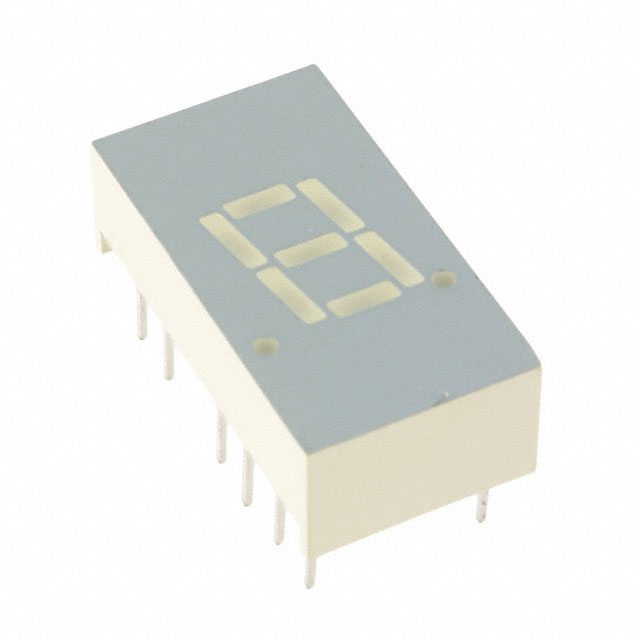

Kingbright SA03-11EWA	7-Segment	7.62 mm	0.3 in	20 mA	10.16 mm	19.06 mm	6.1 mm	0.75 in	0.24 in	0.4 "	75 mw	14-DIP	0.3 in	7.62 mm	8.1 mcd	Red	627 nm	1	Common Anode	2 V
Kingbright SA03-11SYKWA	7-Segment	7.62 mm	0.3 in	20 mA	10.16 mm	19.06 mm	6.1 mm	0.75 in	0.24 in	0.4 "	75 mw	14-DIP	0.3 in	7.62 mm	100 mcd	Yellow	590 nm	1	Common Anode	2 V
Kingbright SA03-11CGKWA	7-Segment	7.62 mm	0.3 in	20 mA	10.16 mm	19.06 mm	6.1 mm	0.75 in	0.24 in	0.4 "	75 mw	14-DIP	0.3 in	7.62 mm	57 mcd	Green		1	Common Anode	2.1 V
