T330 Series

Catalog

CONN RCPT FMALE 4P SOLDER CUP

Part	Contact Finish - Mating	Shielding	Shell Size - Insert	Primary Material	Voltage Rating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Orientation	Mounting Type	Shell Material	Number of Positions	Shell Finish	Current Rating (Amps)	Color	Connector Type	Mounting Feature	Features	Material Flammability Rating	Insert Material

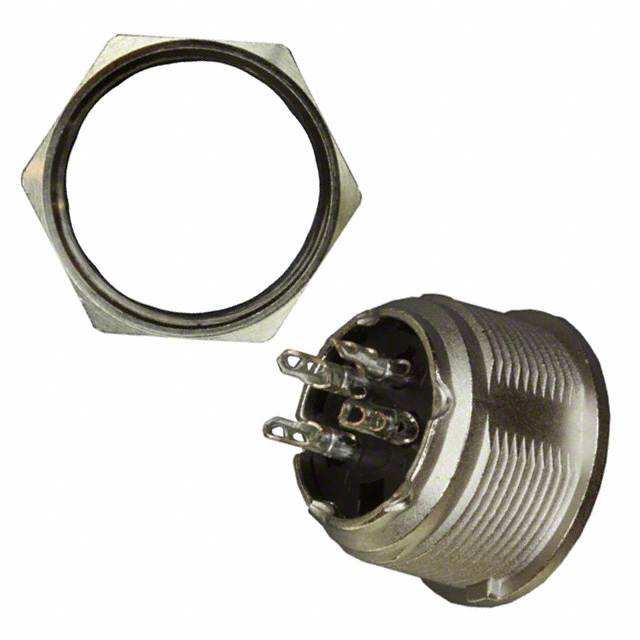

Amphenol Tuchel Industrial T3303009U	Silver	Shielded	M16-4	Metal	250 V	Threaded	-40 C	100 °C	IP40	Keyed	Panel Mount	Die Cast	4	Nickel	10 A	Silver	Receptacle Female Sockets	Bulkhead - Rear Side Nut

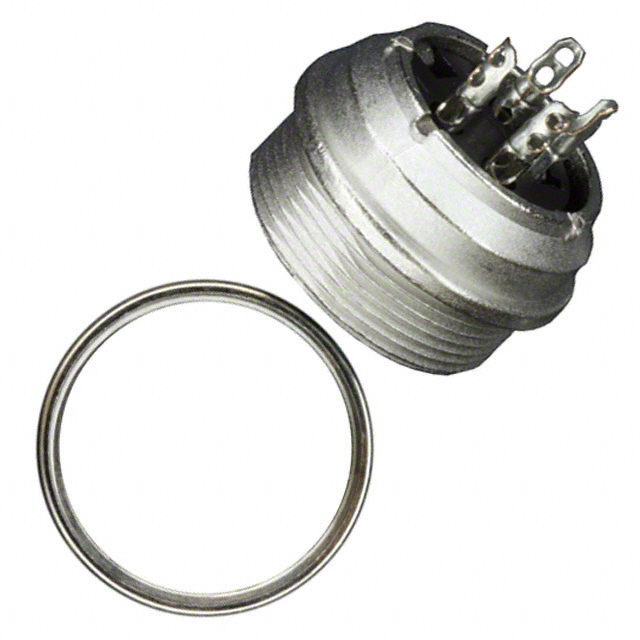

Amphenol Tuchel Industrial T3303100U	Silver	Shielded	M16-4	Metal	250 V	Threaded	-40 C	100 °C	IP40	Keyed	Panel Mount	Die Cast	4	Nickel	10 A	Silver	Receptacle Female Sockets

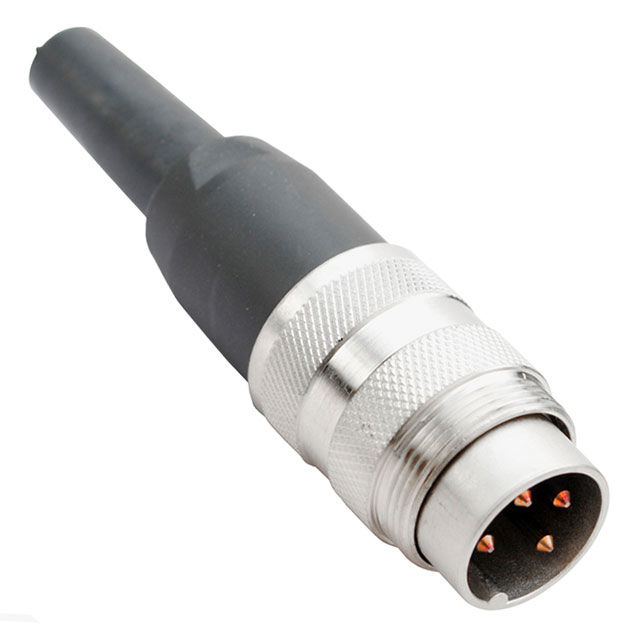

Amphenol Tuchel Industrial T3300001U	Silver	Shielded	M16-4	Metal	300 VDC	Threaded	-40 C	100 °C	IP40	Keyed	Free Hanging (In-Line)	Die Cast	4	Nickel	5 A	Silver	Plug Male Pins		Strain Relief

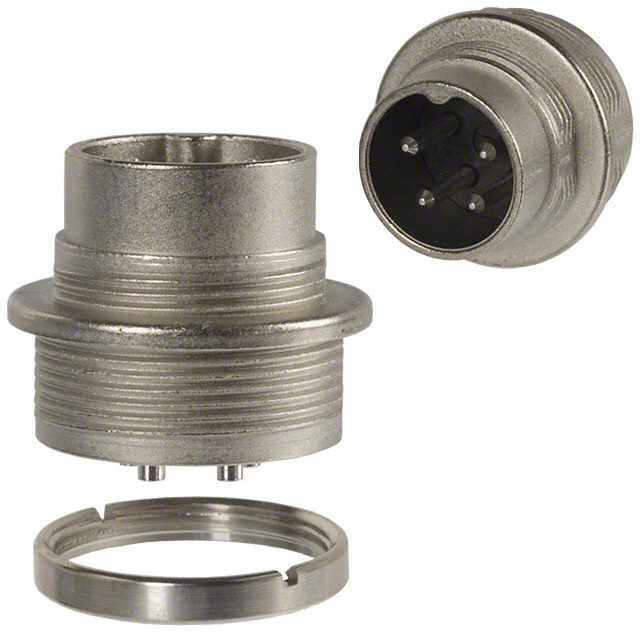

Amphenol Tuchel Industrial T3302000U	Silver	Shielded	M16-4	Metal	250 V	Threaded	-40 C	100 °C	IP40	Keyed	Panel Mount	Die Cast	4	Nickel	10 A	Silver	Receptacle Male Pins

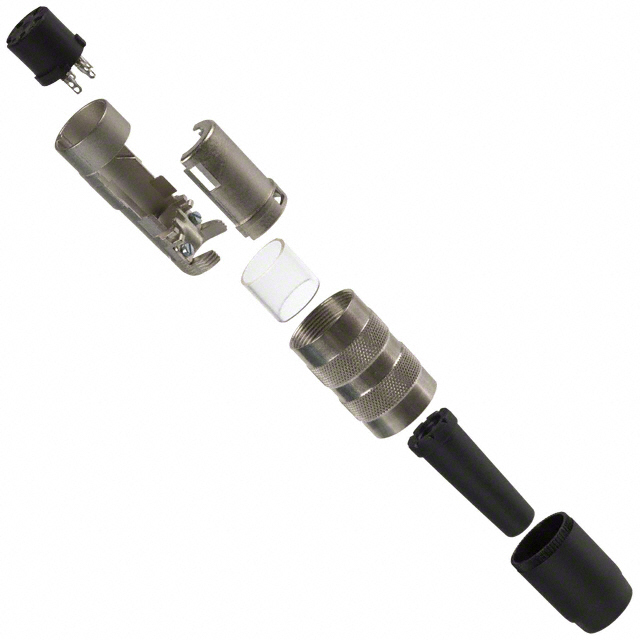

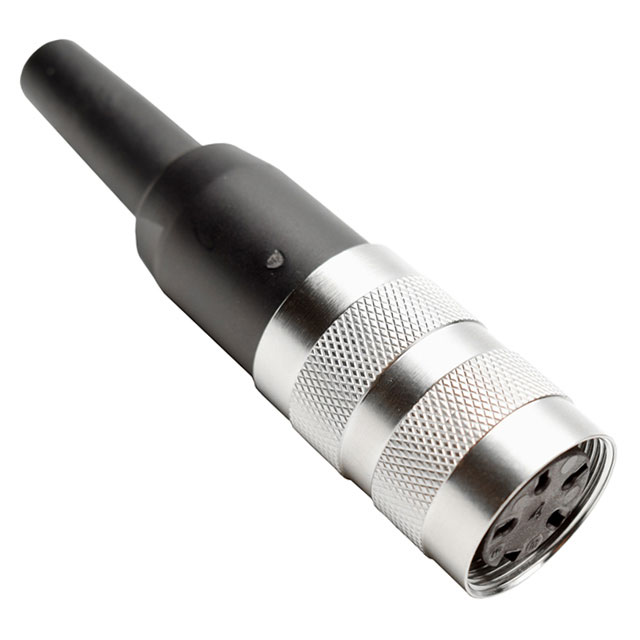

Amphenol Tuchel Industrial T3301001U	Silver	Shielded	M16-4	Metal	250 V	Threaded	-40 C	100 °C	IP40	Keyed	Free Hanging (In-Line)	Die Cast	4	Nickel	10 A	Silver	Plug Female Sockets		Strain Relief

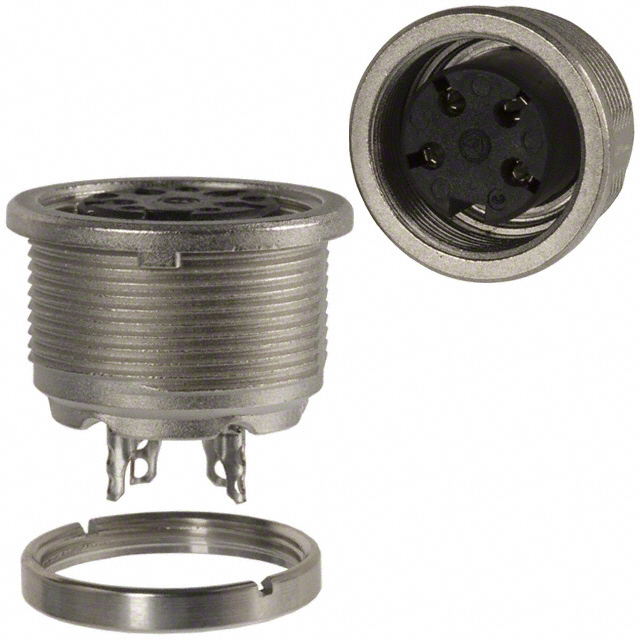

Amphenol Tuchel Industrial T3303000U	Silver	Shielded	M16-4	Metal	250 V	Threaded	-40 C	100 °C	IP40	Keyed	Panel Mount	Die Cast	4	Nickel	5 A	Silver	Receptacle Female Sockets			UL94 V-0	Thermoplastic
