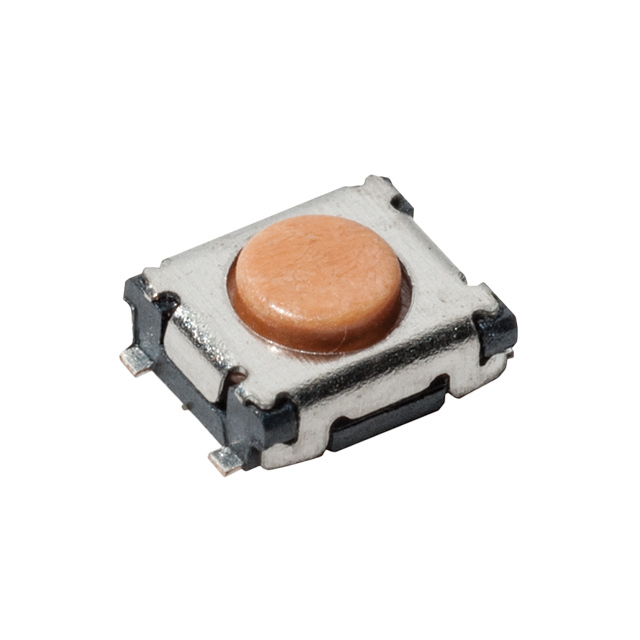

Pts8300 Series Series

Tactile Switches 50mA 12VDC Grnd Pin 450 +/- 80gf SMT Microminiature SMT Top Actuated

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Tactile Switches 50mA 12VDC Grnd Pin 450 +/- 80gf SMT Microminiature SMT Top Actuated

Part	Termination Style	Switch Function	Circuit	Actuator Type	Mounting Type	Actuator Height off PCB, Vertical	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Operating Force	Switch Travel	Outline [y]	Outline [x]	Illumination	Actuator Orientation	Mechanical Life	Features
Littelfuse/Commercial Vehicle Products PTS830GG140 SMTR LFS	Gull Wing	Off-Mom	SPST-NO	Standard	Surface Mount	1.4 mm	85 °C	-40 °C	0.05 A 12 VDC	450 gf	0.15 mm	2.6 mm	3.5 mm	Non-Illuminated	Top Actuated	200000 Cycles
Littelfuse/Commercial Vehicle Products PTS830GG140G SMTR LFS	Gull Wing	Off-Mom	SPST-NO	Standard	Surface Mount	1.4 mm	85 °C	-40 °C	0.05 A 12 VDC	450 gf	0.15 mm	2.6 mm	3.5 mm	Non-Illuminated	Top Actuated	200000 Cycles	Grounding Pin
Littelfuse/Commercial Vehicle Products PTS830GM140G SMTR LFS	Gull Wing	Off-Mom	SPST-NO	Standard	Surface Mount	1.4 mm	85 °C	-40 °C	0.05 A 12 VDC		0.15 mm	2.6 mm	3.5 mm	Non-Illuminated	Top Actuated	500000 Cycles	Grounding Pin

Catalog

Tactile Switches 50mA 12VDC Grnd Pin 450 +/- 80gf SMT Microminiature SMT Top Actuated

Key Features

• 3.5 x 2.6 mm footprint

• High number of cycles

• Optional ground pin

Description

Designers working on the latest, most innovative wearable electronics, remote control and keyless entry products turn to the PTS830 series microminiature SMT top actuated switch from C&K. Featuring an optional ground pin and a footprint of 3.5 x 2.6mm, the PTS830 is also very reliable, operating consistently for a high number of cycles.
