807-080 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 80POS 0.156

...

Part	Termination Rows [custom]	Material - Insulation	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row [custom]	Number of Rows [custom]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Color	Mounting Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Gender	Contact Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Card Type	Read Out	Pitch	Pitch	Features
EDAC Inc. 807-080-524-204	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	40	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Green	Through Hole	Solder	125 °C	-40 C	80	Female	Semi Bellows	Copper Alloy	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	Dual	3.96 mm	0.156 in
EDAC Inc. 807-080-440-202	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	40	2	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Green	Through Hole	Wire Wrap	125 °C	-40 C	80	Female	Semi Bellows	Copper Alloy			Tin	Non Specified - Dual Edge	Dual	3.96 mm	0.156 in
EDAC Inc. 807-080-455-208	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	40	2	4-40 Flush Mount Threaded Insert Top Opening			Green	Board Edge Straddle Mount	Solder	125 °C	-40 C	80	Female	Semi Bellows	Copper Alloy			Tin	Non Specified - Dual Edge	Dual	3.96 mm	0.156 in	Card Extender
EDAC Inc. 807-080-524-212	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	40	2	Side Mount Opening Unthreaded	0.128 "	3.25 mm	Green	Through Hole	Solder	125 °C	-40 C	80	Female	Semi Bellows	Copper Alloy	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	Dual	3.96 mm	0.156 in
EDAC Inc. 807-080-555-204	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	40	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Green	Board Edge Straddle Mount	Solder	125 °C	-40 C	80	Female	Semi Bellows	Copper Alloy	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	Dual	3.96 mm	0.156 in	Card Extender
EDAC Inc. 807-080-559-207	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	40	2	Flush Mount M3 Threaded Insert Top Opening			Green	Right Angle Through Hole	Solder	125 °C	-40 C	80	Female	Semi Bellows	Copper Alloy	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	Single	3.96 mm	0.156 in
EDAC Inc. 807-080-542-207	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	40	2	Flush Mount M3 Threaded Insert Top Opening			Green	Through Hole	Wire Wrap	125 °C	-40 C	80	Female	Semi Bellows	Copper Alloy	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	Dual	3.96 mm	0.156 in
EDAC Inc. 807-080-559-203	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	40	2	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Green	Right Angle Through Hole	Solder	125 °C	-40 C	80	Female	Semi Bellows	Copper Alloy	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	Single	3.96 mm	0.156 in
EDAC Inc. 807-080-520-204	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	40	2	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Green	Through Hole	Solder	125 °C	-40 C	80	Female	Semi Bellows	Copper Alloy	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	Dual	3.96 mm	0.156 in

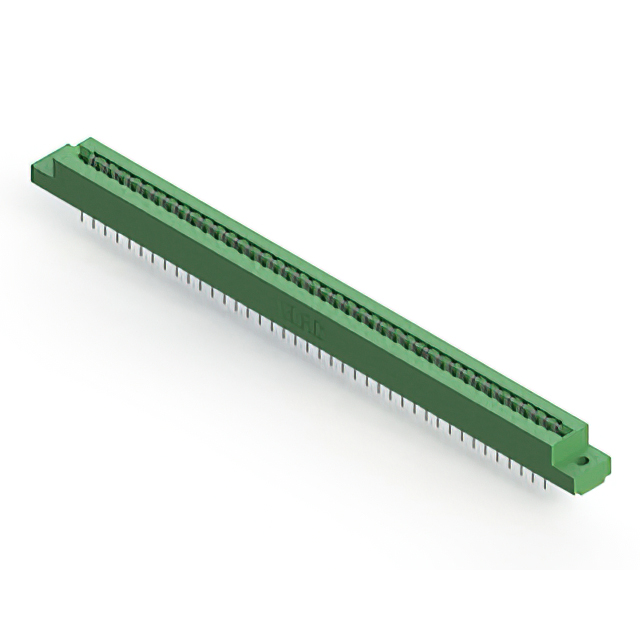

EDAC Inc. 807-080-424-202	2	Diallyl Phthalate (DAP)	0.07 in 1.78 mm	0.054 in 1.37 mm	40	2	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Green	Through Hole	Solder	125 °C	-40 C	80	Female	Semi Bellows	Copper Alloy			Tin	Non Specified - Dual Edge	Dual	3.96 mm	0.156 in
