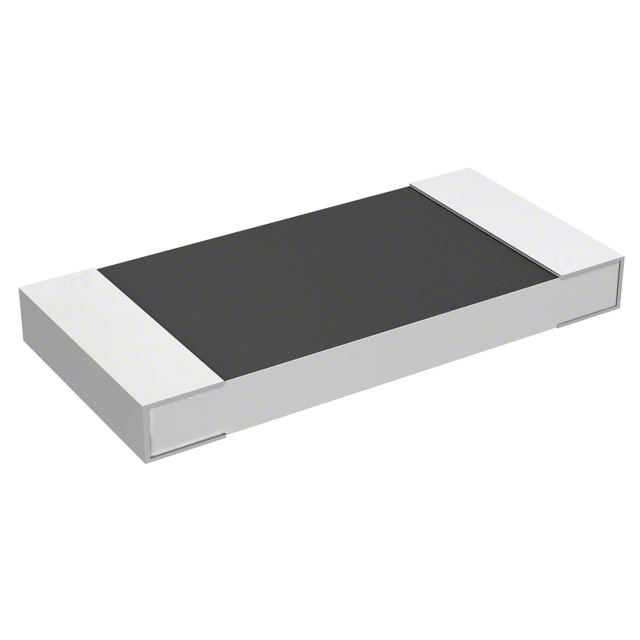

CRL2512 Series

Catalog

RES SMD 2.7 OHM 1% 1W 2512

Part	Temperature Coefficient	Number of Terminations [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Composition	Power (Watts)	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Resistance	Supplier Device Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case
Bourns Inc. CRL2512-FW-2R70ELF	200 ppm/°C	2	155 C	-55 C	1 %	Thick Film	1 W	2512 (6432 Metric)	0.7 mm	0.028 "	2.7 Ohms	2512	0.122 in	0.248 in	3.1 mm	6.3 mm
Bourns Inc. CRL2512-JW-R120ELF	200 ppm/°C	2	155 C	-55 C	5 %	Thick Film	1 W	2512 2512 (6432 Metric)	0.7 mm	0.028 "	0.12 Ohms	2512	0.122 in	0.248 in	3.1 mm	6.3 mm	6332 Metric
Bourns Inc. CRL2512-FW-R300ELF	200 ppm/°C	2	155 C	-55 C	1 %	Thick Film	1 W	2512 (6432 Metric)	0.7 mm	0.028 "	0.3 Ohms	2512	0.122 in	0.248 in	3.1 mm	6.3 mm
Bourns Inc. CRL2512-FW-9R10ELF	200 ppm/°C	2	155 C	-55 C	1 %	Thick Film	1 W	2512 (6432 Metric)	0.7 mm	0.028 "	9.1 Ohms	2512	0.122 in	0.248 in	3.1 mm	6.3 mm
Bourns Inc. CRL2512-FW-6R20ELF	200 ppm/°C	2	155 C	-55 C	1 %	Thick Film	1 W	2512 (6432 Metric)	0.7 mm	0.028 "	6.2 Ohms	2512	0.122 in	0.248 in	3.1 mm	6.3 mm
Bourns Inc. CRL2512-FW-R240ELF	200 ppm/°C	2	155 C	-55 C	1 %	Thick Film	1 W	2512 (6432 Metric)	0.7 mm	0.028 "	240 mOhms	2512	0.122 in	0.248 in	3.1 mm	6.3 mm
Bourns Inc. CRL2512-FW-R820ELF	200 ppm/°C	2	155 C	-55 C	1 %	Thick Film	1 W	2512 (6432 Metric)	0.7 mm	0.028 "	820 mOhms	2512	0.122 in	0.248 in	3.1 mm	6.3 mm
Bourns Inc. CRL2512-FW-8R20ELF	200 ppm/°C	2	155 C	-55 C	1 %	Thick Film	1 W	2512 (6432 Metric)	0.7 mm	0.028 "		2512	0.122 in	0.248 in	3.1 mm	6.3 mm
Bourns Inc. CRL2512-FW-R130ELF	200 ppm/°C	2	155 C	-55 C	1 %	Thick Film	1 W	2512 2512 (6432 Metric)	0.7 mm	0.028 "	0.13 Ohms	2512	0.122 in	0.248 in	3.1 mm	6.3 mm	6332 Metric
Bourns Inc. CRL2512-FW-1R60ELF	200 ppm/°C	2	155 C	-55 C	1 %	Thick Film	1 W	2512 (6432 Metric)	0.7 mm	0.028 "	1.6 Ohms	2512	0.122 in	0.248 in	3.1 mm	6.3 mm
