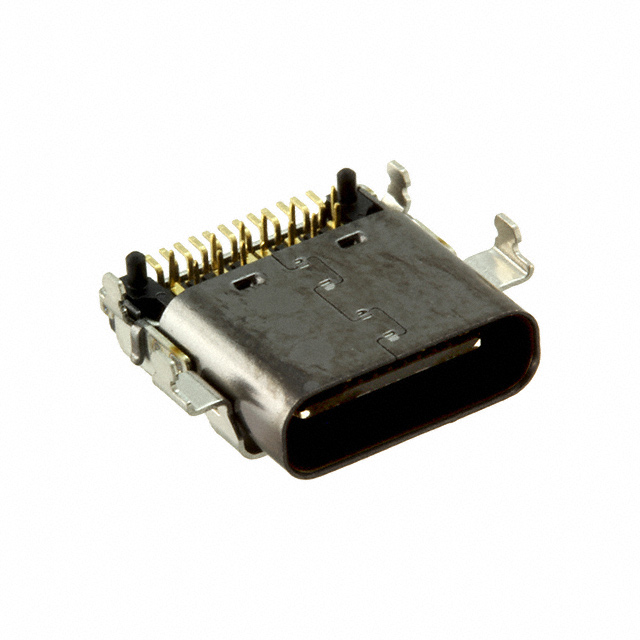

DX07B024 Series

Catalog

CONN RCPT USB3.1 TYPEC 24POS SMD

Part	Shell/Shielding Material	Insulation Color	Contact Finish	Gender	Features	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Specifications	Mounting Type	Mounting Feature	Mating Cycles	Current Rating (Amps)	Voltage - Rated	Number of Contacts [custom]	Termination	Shielding	Connector Type
JAE Electronics DX07B024JJ2R1500	Stainless Steel	Black	Gold	Receptacle	Pick and Place	80 °C	-30 ░C	1	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Board Edge Cutout Surface Mount Through Hole Right Angle	Horizontal Mid Mount	10000	0.25 A 1.25 A	48 VDC	24	Solder	Shielded	USB-C (USB TYPE-C)

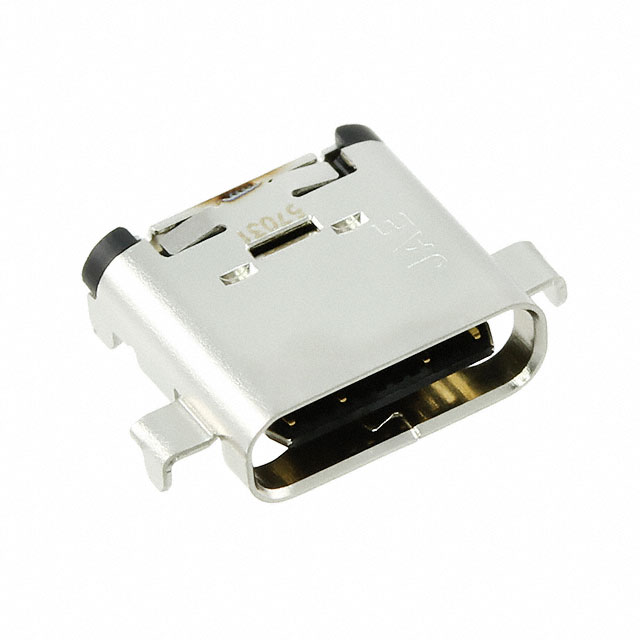

JAE Electronics DX07B024JJ1R1500	Stainless Steel	Black	Gold	Receptacle	Pick and Place	80 °C	-30 ░C	1	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Board Edge Cutout Surface Mount Through Hole Right Angle	Horizontal Mid Mount	10000	0.25 A 1.25 A	48 VDC	24	Solder	Shielded	USB-C (USB TYPE-C)

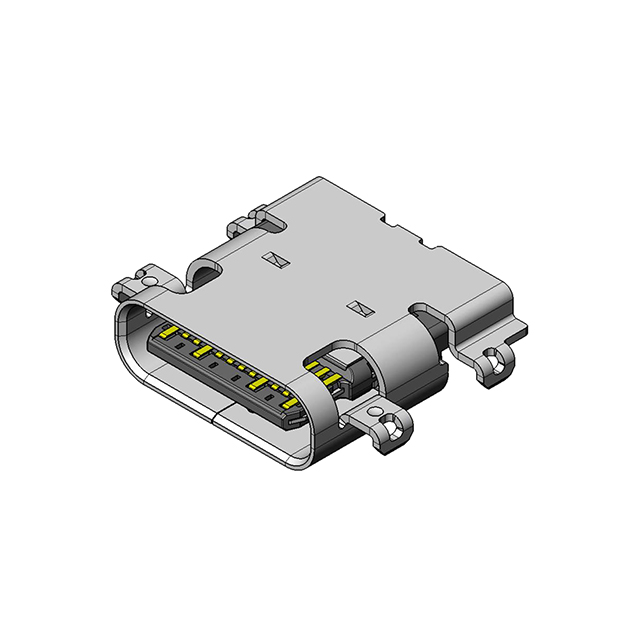

JAE Electronics DX07B024JJ3R1600	Stainless Steel	Black	Gold	Receptacle		80 °C	-30 ░C	1	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Board Cutout Right Angle Surface Mount Through Hole	Horizontal Mid Mount	10000	0.25 A 1.25 A	48 VDC	24	Solder	Shielded	USB-C (USB TYPE-C)
JAE Electronics DX07B024JAAR1100	Stainless Steel	Black	Gold	Receptacle				1	USB 4.0	Board Edge Cutout Surface Mount Through Hole Right Angle	Horizontal Mid Mount			48 VDC	24	Solder	Shielded	USB-C (USB TYPE-C)
JAE Electronics DX07B024XJ1R1300	Stainless Steel	Black	Gold	Receptacle	Pick and Place	80 °C	-30 ░C	1	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	Board Edge Cutout Surface Mount Through Hole Right Angle	Horizontal Mid Mount	10000	0.25 A 1.25 A	48 VDC	24	Solder	Shielded	USB-C (USB TYPE-C)
