UB226SK Series

Catalog

SWITCH PUSHBUTTON DPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Voltage Rating - AC	Current Rating (Amps)	Type	Switch Function	Termination Style	Circuit	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Mounting Type	Illumination Type, Color	Features	Actuator Type	Actuator Marking	Illumination Voltage (Nominal)	Illumination Voltage (Nominal) [Max]	Illumination Voltage (Nominal) [Min]
NKK Switches UB226SKG035D-3JD	200000 Cycles	200000 Cycles	28 V	0.4 VA	Illuminated Standard	On-On	PC Pin	DPDT	28 V	50 °C	-25 °C	Clear	Through Hole	Amber LED	Sealed - Fully	Button Square	No Marking	2 VDC
NKK Switches UB226SKW036DG-4JDG14	200000 Cycles	10000 Cycles	125 V	5 A	Illuminated Standard	On-On	PC Pin	DPDT	30 V	50 °C	-25 °C	Clear	Through Hole	Amber Blue LED		Alternating Legend Button Square	OPEN/CLOSE		2.8 VDC	2 VDC
NKK Switches UB226SKW03N	200000 Cycles	10000 Cycles	125 V	5 A	Standard	On-On	PC Pin	DPDT	30 V	70 °C	-25 °C		Through Hole		Sealed - Fully Stackable	Plunger for Cap	No Marking

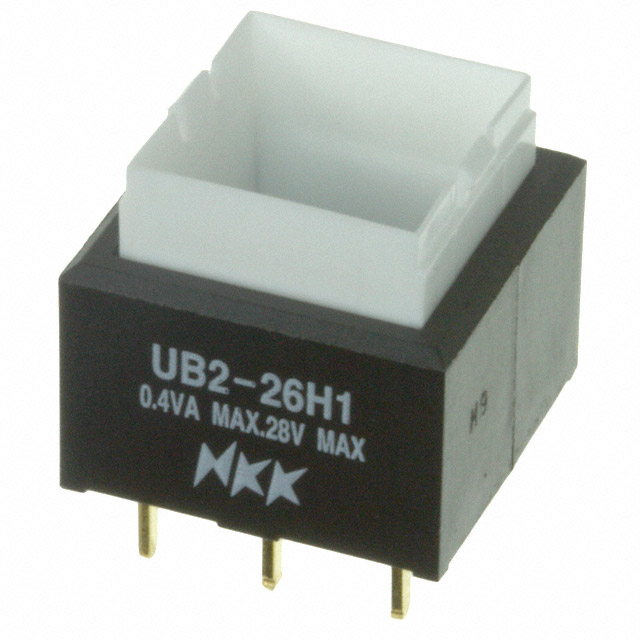

NKK Switches UB226SKG035F	200000 Cycles	200000 Cycles	28 V	0.4 VA	Illuminated Standard	On-On	PC Pin	DPDT	28 V	50 °C	-25 °C		Through Hole	Green LED	Sealed - Fully	Plunger for Cap	No Marking	2.1 VDC

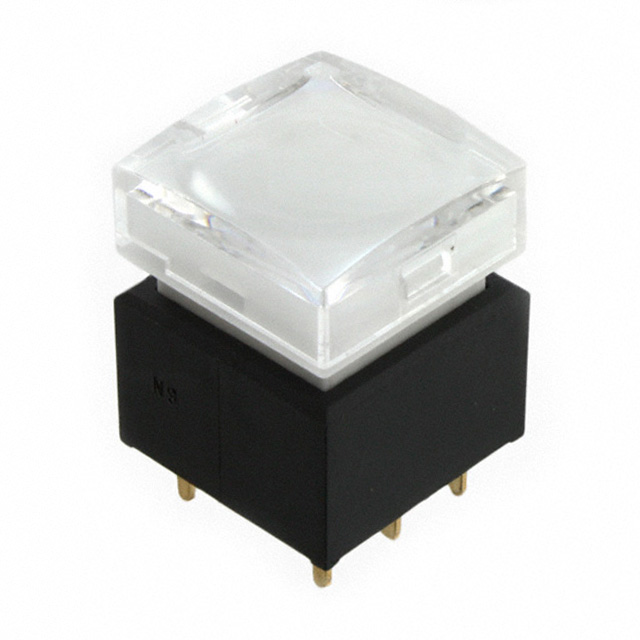

NKK Switches UB226SKG035F-1JB	200000 Cycles	200000 Cycles	28 V	0.4 VA	Illuminated Standard	On-On	PC Pin	DPDT	28 V	50 °C	-25 °C	Clear	Through Hole	Green LED	Sealed - Fully	Button Square	No Marking	2.1 VDC
NKK Switches UB226SKW03N-5A	200000 Cycles	10000 Cycles	125 V	5 A	Standard	On-On	PC Pin	DPDT	30 V	70 °C	-25 °C	Black	Through Hole		Sealed - Fully Stackable	Button Square	No Marking

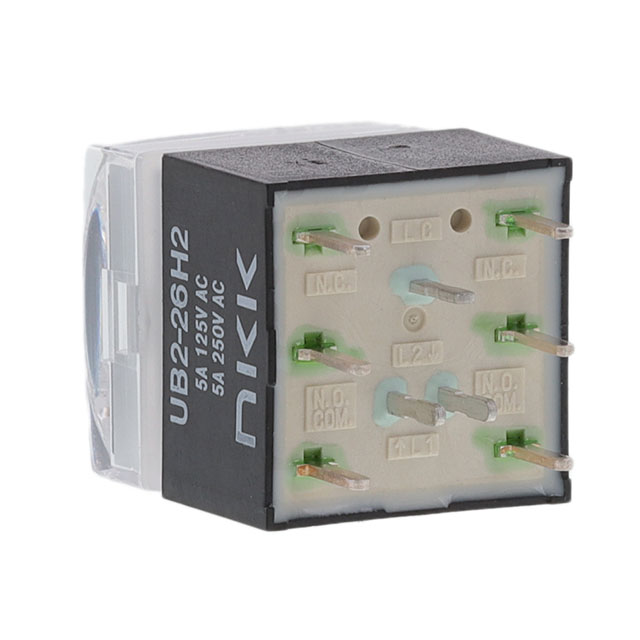

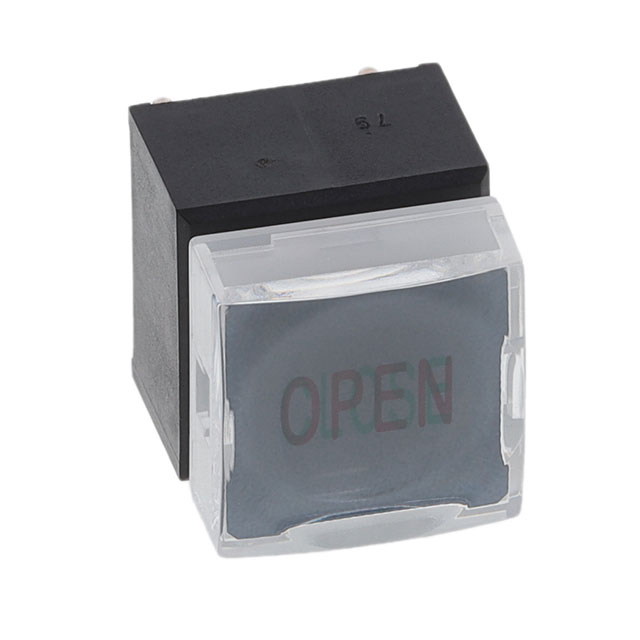

NKK Switches UB226SKW036CF-4JCF14	200000 Cycles	10000 Cycles	125 V	5 A	Illuminated Standard	On-On	PC Pin	DPDT	30 V	50 °C	-25 °C	Clear	Through Hole	Green/Red LED		Alternating Legend Button Square	OPEN/CLOSE	2.1 VDC 3.5 VDC
NKK Switches UB226SKG03N	200000 Cycles	200000 Cycles	28 V	0.4 VA	Standard	On-On	PC Pin	DPDT	28 V	70 °C	-25 °C		Through Hole		Sealed - Fully	Plunger for Cap	No Marking
NKK Switches UB226SKW035CF-3JB	200000 Cycles	10000 Cycles	125 V	5 A	Illuminated Standard	On-On	PC Pin	DPDT	30 V	50 °C	-25 °C	Clear	Through Hole	Green/Red LED	Sealed - Fully	Button Square	No Marking	2.1 VDC 3.5 VDC
NKK Switches UB226SKW036G-1JB	200000 Cycles	10000 Cycles	125 V	5 A	Illuminated Standard	On-On	PC Pin	DPDT	30 V	50 °C	-25 °C	Clear	Through Hole	Blue LED	Sealed - Fully	Button Square	No Marking	2.9 VDC
