GTB028 Series
Manufacturer: Delta Electronics
Beta
⌘K

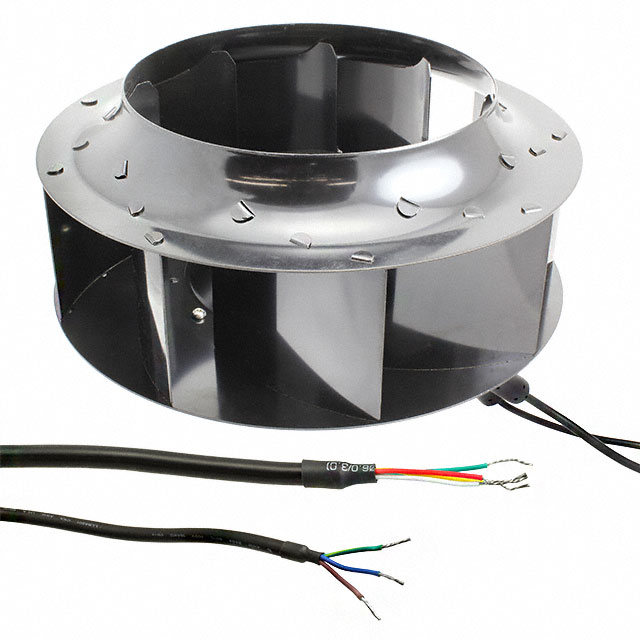

FAN BLWR CENT 280X162MM 230VAC
| Part | Material - Frame | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Material - Blade [custom] | Fan Type | Width [y] | Noise | Voltage - Rated | Air Flow | Air Flow | Approval Agency | Size / Dimension | Size / Dimension [diameter] | Static Pressure | Static Pressure | RPM | Bearing Type | Power (Watts) | Weight | Weight | Operating Temperature [Min] | Operating Temperature [Max] | Features | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Steel | 40 °C 60000 Hrs | 277 VAC | 200 VAC | Aluminum | Motorized Impellers | 162 mm | 73 dB(A) | 230 VAC | 36.62 m³/min | 1308 CFM | TUV UL | Round | 280 mm | 569 Pa | 2.285 in H2O | 2020 RPM | Ball | 180 W | 7.7 lbs | 3.5 kg | -25 °C | 60 °C | PWM Control Speed Sensor (Tach) | IP54 - Dust Protected Water Resistant |
Delta Electronics | Steel | 40 °C 60000 Hrs | 277 VAC | 200 VAC | Aluminum | Motorized Impellers | 162 mm | 73 dB(A) | 230 VAC | 36.62 m³/min | 1308 CFM | TUV UL | Round | 280 mm | 569 Pa | 2.285 in H2O | 2020 RPM | Ball | 180 W | 7.7 lbs | 3.5 kg | -25 °C | 60 °C | PWM Control Speed Sensor (Tach) | IP54 - Dust Protected Water Resistant |
