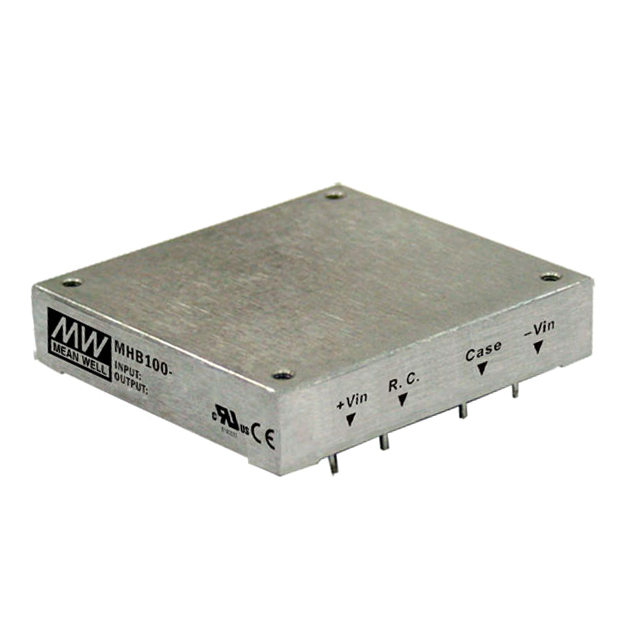

MHB100 Series

Catalog

DC DC CONVERTER 12V 100W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current - Output (Max) [Max]	Supplier Device Package	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Efficiency	Mounting Type	Type	Power (Watts)	Applications
MEAN WELL USA Inc. MHB100-24S12	-40 C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	8.3 A	Half Brick	1	18 V	36 V	1.5 kV	12 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	87 %	Through Hole	Isolated Module	100 W	ITE (Commercial)
MEAN WELL USA Inc. MHB100-48S12	-40 C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	8.3 A	Half Brick	1	36 V	75 V	1.5 kV	12 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	89 %	Through Hole	Isolated Module	100 W	ITE (Commercial)
MEAN WELL USA Inc. MHB100-48S24	-40 C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	4.17 A	Half Brick	1	36 V	75 V	1.5 kV	24 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	88 %	Through Hole	Isolated Module	100 W	ITE (Commercial)
MEAN WELL USA Inc. MHB100-48S05	-40 C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	20 A	Half Brick	1	36 V	75 V	1.5 kV	5 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	86 %	Through Hole	Isolated Module	100 W	ITE (Commercial)
MEAN WELL USA Inc. MHB100-24S24	-40 C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	4.17 A	Half Brick	1	18 V	36 V	1.5 kV	24 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	87 %	Through Hole	Isolated Module	100 W	ITE (Commercial)
MEAN WELL USA Inc. MHB100-24S05	-40 C	100 °C	OCP OTP OVP Remote On/Off SCP UVLO	20 A	Half Brick	1	18 V	36 V	1.5 kV	5 V	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Half Brick	84 %	Through Hole	Isolated Module	100 W	ITE (Commercial)
