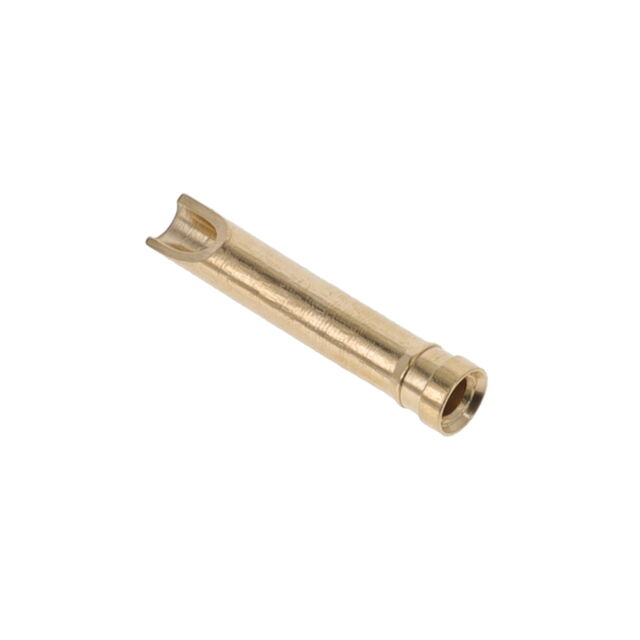

0740-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Tail Type | Contact Finish | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Socket Depth | Socket Depth | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Press-Fit | 30 Áin | 0.76 Ám | Beryllium Copper | 1.63 mm | 0.064 in | 0.084 in | 2.13 mm | No Tail | Gold | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 0.075 " | 1.91 mm | 0.22 in | 5.59 mm | 0.425 in | 10.8 mm |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Press-Fit | 30 Áin | 0.76 Ám | Beryllium Copper | 1.63 mm | 0.064 in | 0.084 in | 2.13 mm | No Tail | Gold | 1.17 mm | 0.81 mm | 0.046 " | 0.032 " | 0.075 " | 1.91 mm | 0.22 in | 5.59 mm | 0.425 in | 10.8 mm |
