3228 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RING CIRC 14-16AWG #6 CRIMP

Part	Contact Finish	Features	Width - Outer Edges [x]	Width - Outer Edges [x]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Termination	Stud/Tab Size	Terminal Type	Thickness	Thickness	Insulation	Contact Material	Number of Wire Entries	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Color	Material - Insulation	Wire Gauge	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge [Max]	Wire Gauge [Min]	Length - Overall	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Width - Outer Edges	Width - Outer Edges	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]
TE Connectivity Raychem Cable Protection 322833	Tin	Brazed Seam Heavy Duty Serrated Termination	0.343 in	8.71 mm	Free Hanging (In-Line)	0.723 "	18.36 mm	Crimp	6 Stud	Circular	0.048 in	1.22 mm	Non-Insulated	Copper

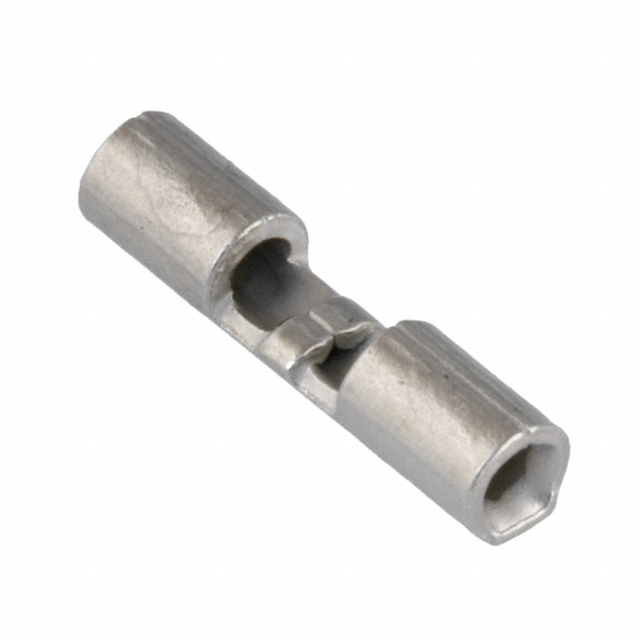

TE Connectivity Raychem Cable Protection 322824		Brazed Seam Serrated Mating Area						Crimp		Butt Splice Individual Openings Inline			Non-Insulated		2
TE Connectivity Raychem Cable Protection 322897	Tin	Serrated Termination			Free Hanging (In-Line) Right Angle			Crimp	0.3125 Stud	Circular	0.048 in	1.22 mm	Insulated	Copper		11.07 mm	0.436 in	Yellow	Vinyl	4 AWG	0.679 in	17.25 mm
TE Connectivity Raychem Cable Protection 322872	Tin	Brazed Seam High Temperature Serrated Termination			Free Hanging (In-Line)	0.621 in		Crimp	6 Stud	Circular	0.03 in	0.76 mm	Non-Insulated	Nickel							0.312 in	7.92 mm	22 AWG	16 AWG	15.77 mm
TE Connectivity Raychem Cable Protection 322822		Brazed Seam Serrated Mating Area						Crimp		Butt Splice Individual Openings Inline			Non-Insulated		2								22 AWG	16 AWG
TE Connectivity Raychem Cable Protection 322805	Nickel	Brazed Seam Serrated Termination			Free Hanging (In-Line)	0.48 in	12.19 mm	Crimp	6 Stud	Circular	0.031 in	0.79 mm	Non-Insulated	Copper							0.25 "	6.35 mm

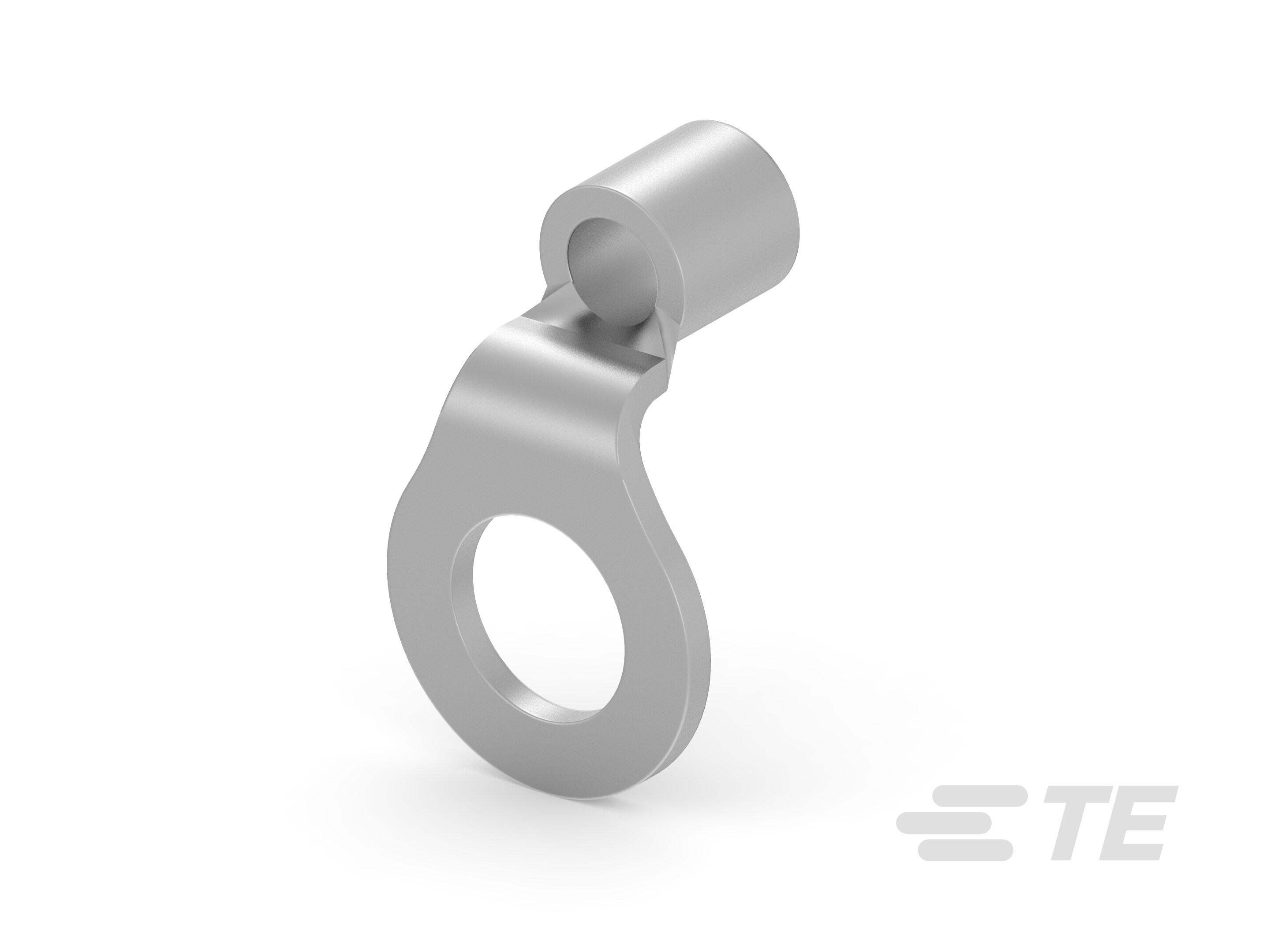

TE Connectivity Raychem Cable Protection 322821	Tin	Brazed Seam Serrated Termination	0.343 in	8.71 mm	Free Hanging (In-Line) Right Angle			Crimp	10 Stud	Circular	0.031 in	0.79 mm	Non-Insulated	Copper

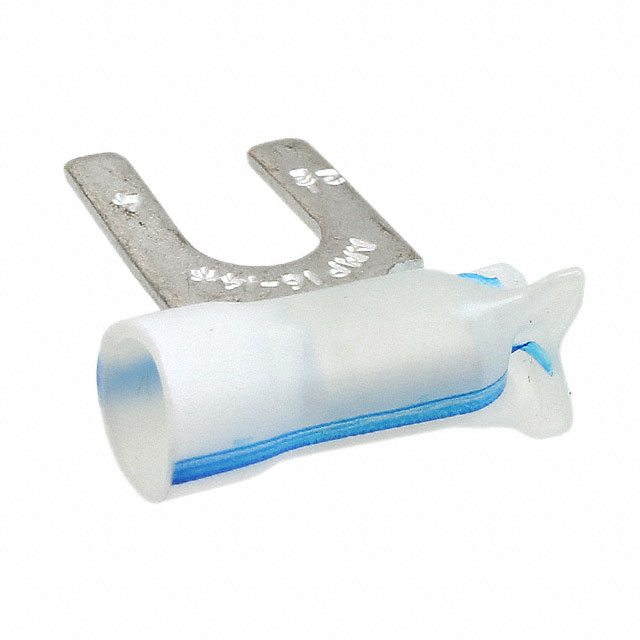

TE Connectivity Raychem Cable Protection 322834	Tin				Free Hanging (In-Line)			Crimp Flag	10 Stud	Standard			Insulated	Copper				Blue Stripe Natural	Poly-Vinyl Chloride (PVC)							5 mm	0.197 in	0.385 in	9.78 mm	0.115 in 2.92 mm	0.17 " 4.32 mm	6.91 mm	0.272 in
