WLS27XWGRYB5 Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

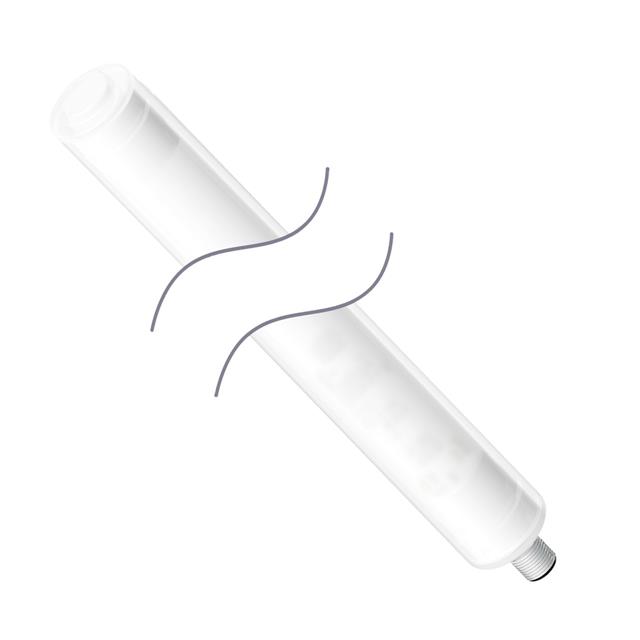

LED STRIP LIGHT, NON-CASCADABLE, DIFFUSED, 570MM, WHITE, GREEN, RED, YELLOW, BLUE, 24V, WLS27 SERIES
| Part | Termination Style | Lens Type | Luminous Flux [custom] | Luminous Flux [custom] | Luminous Flux [custom] | Luminous Flux [custom] | Luminous Flux [custom] | Illumination Color | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Housing Material | Voltage - Supply [Min] | Voltage - Supply [Max] | Profile (W x H) | Profile (W x H) | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | Connector (M12) | Tubular Diffused | 1140 lm | 250 lm | 800 lm | 370 lm | 1300 lm | Blue Green Red White Yellow | CE cULus | 70 °C | -40 C | IP66 IP67 IP69K | Aluminum (Al) | 12 VDC | 30 VDC | 1.06 " | 27 mm | 570 mm | 22.44 in | ||
 BANNER ENGINEERING | Connector (M12) | Tubular Diffused | 570 lm | 125 lm | 400 lm | 185 lm | 650 lm | Blue Green Red White Yellow | CE cULus | 70 °C | -40 C | IP66 IP67 IP69K | Aluminum (Al) | 12 VDC | 30 VDC | 1.06 " | 27 mm | ||||
BANNER ENGINEERING | Connector (M12) | Tubular Diffused | 2280 lm | 500 lm | 16000 lm | 740 lm | 2600 lm | Blue Green Red White Yellow | CE cULus | 70 °C | -40 C | IP66 IP67 IP69K | Aluminum (Al) | 12 VDC | 30 VDC | 1.06 " | 27 mm | 1130 mm | 44.49 in | ||
BANNER ENGINEERING | Connector (M12) | Tubular Diffused | 1710 lm | 470 lm | 1200 lm | 555 lm | 1950 lm | Blue Green Red White Yellow | CE cULus | 70 °C | -40 C | IP66 IP67 IP69K | Aluminum (Al) | 12 VDC | 30 VDC | 1.06 " | 27 mm |
