1896/8C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

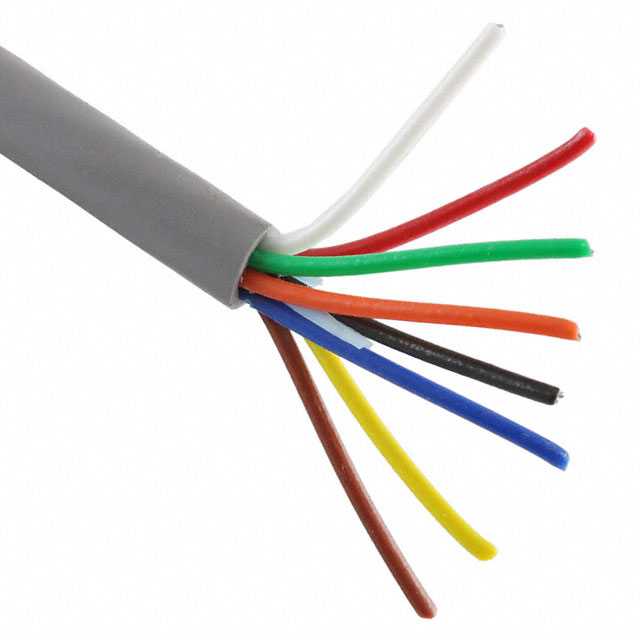

MULTICONDUCTOR CABLE, CONTROL, UNSHIELDED, 8 CONDUCTOR, 20 AWG, 0.51 MM², 500 FT, 152.4 M
| Part | Cable Type | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Conductor Material | Jacket (Insulation) Material | Number of Conductors [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Voltage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Multi-Conductor | 20 AWG | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Poly-Vinyl Chloride (PVC) | 8 | 6.93 mm | 0.273 " | Slate | 80 °C | -20 ░C | Communication Control | 0.02 " | 0.508 mm | 152.4 m | 500 ft | 300 VDC | ||
ALPHA WIRE | Multi-Conductor | 20 AWG | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Poly-Vinyl Chloride (PVC) | 8 | 6.93 mm | 0.273 " | Slate | 80 °C | -20 ░C | Communication Control | 0.02 " | 0.508 mm | 304.8 m | 1000 ft | 300 VDC | ||
ALPHA WIRE | Multi-Conductor | 20 AWG | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | Copper Tinned | Poly-Vinyl Chloride (PVC) | 8 | 6.93 mm | 0.273 " | Slate | 80 °C | -20 ░C | Communication Control | 0.02 " | 0.508 mm | 300 VDC | 100 ft | 30.5 m |
