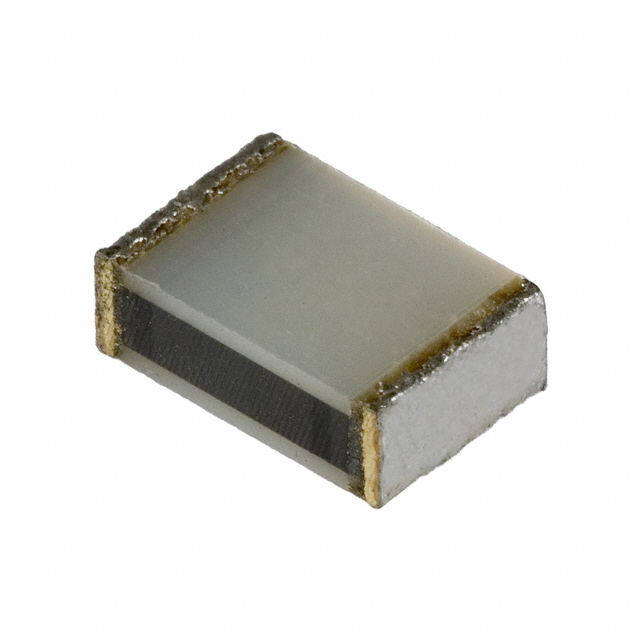

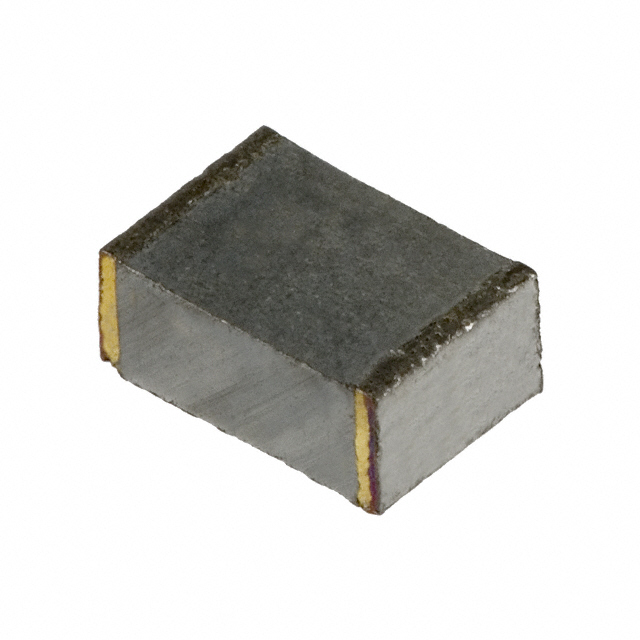

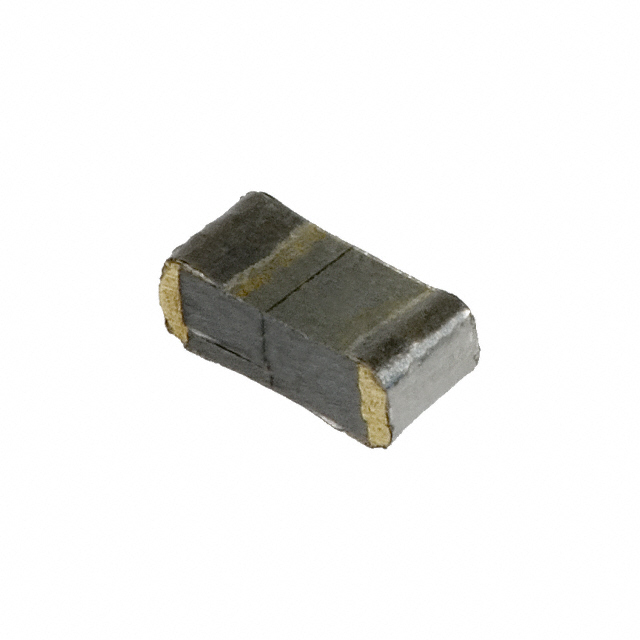

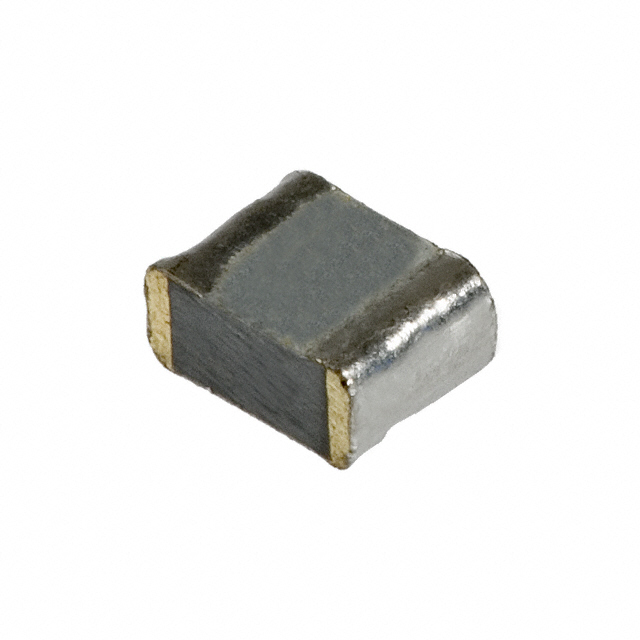

ECW-U1H Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 0.22UF 5% 50VDC 2416

Part	Capacitance	Dielectric Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Termination	Voltage Rating - DC	Tolerance	Applications	Height - Seated (Max)	Height - Seated (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]
Panasonic Industrial Automation Sales ECW-U1H224JC9	0.22 µF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	4.1 mm	0.161 in	0.236 in	6 mm	Solder Pads	50 VDC	5 %	General Purpose	3 mm	0.118 in	Surface Mount	105 ░C	-55 °C
Panasonic Industrial Automation Sales ECW-U1H183JB5	0.018 µF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	2.5 mm	0.098 in	0.126 in	3.2 mm	Solder Pads	50 VDC	5 %	General Purpose	1.6 mm	0.063 in	Surface Mount	105 ░C	-55 °C	1210	3225 Metric
Panasonic Industrial Automation Sales ECW-U1H223JB5	0.022 µF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	2.5 mm	0.098 in	0.126 in	3.2 mm	Solder Pads	50 VDC	5 %	General Purpose	1.6 mm	0.063 in	Surface Mount	105 ░C	-55 °C	1210	3225 Metric
Panasonic Industrial Automation Sales ECW-U1H184JC9	0.18 µF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	4.1 mm	0.161 in	0.236 in	6 mm	Solder Pads	50 VDC	5 %	General Purpose			Surface Mount	105 ░C	-55 °C			0.102 "	2.6 mm
Panasonic Industrial Automation Sales ECW-U1H563JC9	0.056 µF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	3.3 mm	0.13 in	0.189 "	4.8 mm	Solder Pads	50 VDC	5 %	General Purpose			Surface Mount	105 ░C	-55 °C	1913	4833 Metric	0.087 in	2.2 mm
Panasonic Industrial Automation Sales ECW-U1H103JB5	10000 pF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	1.6 mm			3.2 mm	Solder Pads	50 VDC	5 %	General Purpose		0.047 in	Surface Mount	105 ░C	-55 °C	1206 (3216 Metric)				1.2 mm	0.063 in	0.126 "
Panasonic Industrial Automation Sales ECW-U1H392JB5	3900 pF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	1.6 mm			3.2 mm	Solder Pads	50 VDC	5 %	General Purpose		0.039 "	Surface Mount	105 ░C	-55 °C	1206 (3216 Metric)				1 mm	0.063 in	0.126 "
Panasonic Industrial Automation Sales ECW-U1H562JB5	5600 pF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	1.6 mm			3.2 mm	Solder Pads	50 VDC	5 %	General Purpose		0.039 "	Surface Mount	105 ░C	-55 °C	1206 (3216 Metric)				1 mm	0.063 in	0.126 "
Panasonic Industrial Automation Sales ECW-U1H153JB5	15000 pF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	2.5 mm	0.098 in	0.126 in	3.2 mm	Solder Pads	50 VDC	5 %	General Purpose		0.047 in	Surface Mount	105 ░C	-55 °C	1210	3225 Metric			1.2 mm
Panasonic Industrial Automation Sales ECW-U1H332JB5	3300 pF	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	1.6 mm			3.2 mm	Solder Pads	50 VDC	5 %	General Purpose		0.039 "	Surface Mount	105 ░C	-55 °C	1206 (3216 Metric)				1 mm	0.063 in	0.126 "
