87900 Series

Catalog

CONN HEADER VERT 50POS 2.54MM

Part	Material Flammability Rating	Shrouding	Insulation Color	Number of Positions	Number of Rows	Mounting Type	Current Rating (Amps)	Insulation Height	Insulation Height	Termination	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Material	Contact Finish - Post	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Type	Fastening Type	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating
Amphenol ICC (FCI) 87900-450HLF	UL94 V-0	Unshrouded	Black	50	2	Through Hole	5 A	0.1 in	2.54 mm	Solder	23.88 mm	0.94 "	2.54 mm	0.1 in	All	Phosphor Bronze	Tin	Square	0.12 in	3.05 mm	110 VDC	2.54 çm	100 çin	0.1 in	2.54 mm	Male Pin	Push-Pull	Header	0.72 in	18.29 mm
Amphenol ICC (FCI) 87900-164HLF	UL94 V-0	Unshrouded	Black	64	2	Through Hole	5 A	0.1 in	2.54 mm	Solder	23.88 mm	0.94 "	2.54 mm	0.1 in	All	Phosphor Bronze		Square	0.12 in	3.05 mm	110 VDC	0.76 Ám	30 Áin	0.1 in	2.54 mm	Male Pin	Push-Pull	Header	0.72 in	18.29 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 87900-102HLF	UL94 V-0	Unshrouded	Black	2	2	Through Hole	5 A	0.1 in	2.54 mm	Solder	23.88 mm	0.94 "	2.54 mm	0.1 in	All	Phosphor Bronze		Square	0.12 in	3.05 mm	110 VDC	0.76 Ám	30 Áin			Male Pin	Push-Pull	Header	0.72 in	18.29 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 87900-154HLF	UL94 V-0	Unshrouded	Black	54	2	Through Hole	5 A	0.1 in	2.54 mm	Solder	23.88 mm	0.94 "	2.54 mm	0.1 in	All	Phosphor Bronze		Square	0.12 in	3.05 mm	110 VDC	0.76 Ám	30 Áin	0.1 in	2.54 mm	Male Pin	Push-Pull	Header	0.72 in	18.29 mm	Gold or Gold GXT™

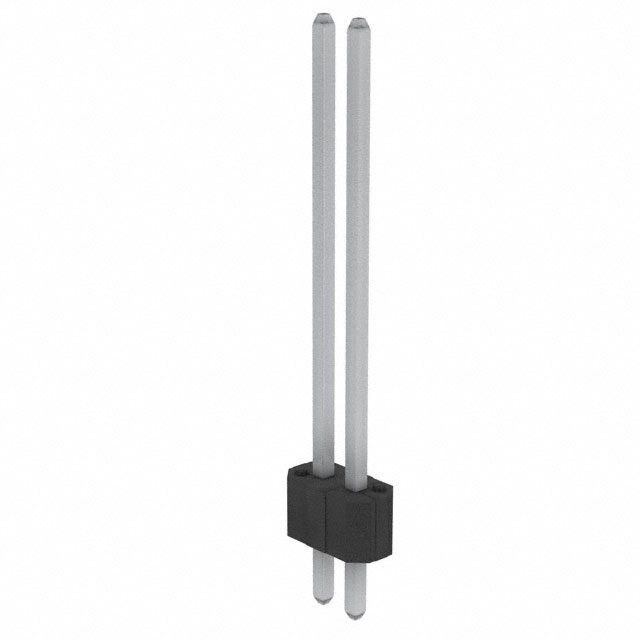

Amphenol ICC (FCI) 87900-402HLF	UL94 V-0	Unshrouded	Black	2	2	Through Hole	5 A	0.1 in	2.54 mm	Solder	23.88 mm	0.94 "	2.54 mm	0.1 in	All	Phosphor Bronze	Tin	Square	0.12 in	3.05 mm	110 VDC	2.54 çm	100 çin			Male Pin	Push-Pull	Header	0.72 in	18.29 mm
Amphenol ICC (FCI) 87900-466HLF	UL94 V-0	Unshrouded	Black	66	2	Through Hole	5 A	0.1 in	2.54 mm	Solder	23.88 mm	0.94 "	2.54 mm	0.1 in	All	Phosphor Bronze	Tin	Square	0.12 in	3.05 mm	110 VDC	2.54 çm	100 çin	0.1 in	2.54 mm	Male Pin	Push-Pull	Header	0.72 in	18.29 mm
Amphenol ICC (FCI) 87900-132HLF	UL94 V-0	Unshrouded	Black		2	Through Hole	5 A	0.1 in	2.54 mm	Solder	23.88 mm	0.94 "	2.54 mm	0.1 in	All	Phosphor Bronze		Square	0.12 in	3.05 mm	110 VDC	0.76 Ám	30 Áin	0.1 in	2.54 mm	Male Pin	Push-Pull	Header	0.72 in	18.29 mm	Gold or Gold GXT™
Amphenol ICC (FCI) 87900-448HLF	UL94 V-0	Unshrouded	Black	48	2	Through Hole	5 A	0.1 in	2.54 mm	Solder	23.88 mm	0.94 "	2.54 mm	0.1 in	All	Phosphor Bronze	Tin	Square	0.12 in	3.05 mm	110 VDC	2.54 çm	100 çin	0.1 in	2.54 mm	Male Pin	Push-Pull	Header	0.72 in	18.29 mm
Amphenol ICC (FCI) 87900-440HLF	UL94 V-0	Unshrouded	Black	40	2	Through Hole	5 A	0.1 in	2.54 mm	Solder	23.88 mm	0.94 "	2.54 mm	0.1 in	All	Phosphor Bronze	Tin	Square	0.12 in	3.05 mm	110 VDC	2.54 çm	100 çin	0.1 in	2.54 mm	Male Pin	Push-Pull	Header	0.72 in	18.29 mm
Amphenol ICC (FCI) 87900-438HLF	UL94 V-0	Unshrouded	Black	38	2	Through Hole	5 A	0.1 in	2.54 mm	Solder	23.88 mm	0.94 "	2.54 mm	0.1 in	All	Phosphor Bronze	Tin	Square	0.12 in	3.05 mm	110 VDC	2.54 çm	100 çin	0.1 in	2.54 mm	Male Pin	Push-Pull	Header	0.72 in	18.29 mm
