1934353 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

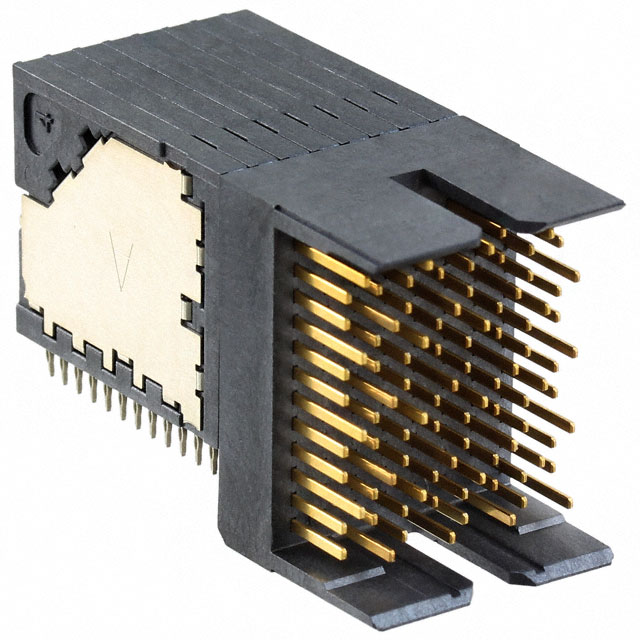

CONN HEADER HD 96POS PCB
| Part | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Connector Usage | Connector Usage | Number of Positions Loaded | Number of Positions | Connector Type | Number of Rows | Voltage Rating | Number of Columns | Mounting Type | Color | Connector Style | Pitch [x] | Pitch [x] | Material Flammability Rating | Termination | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.5 A | 0.76 Ám | 30 Áin | Coplanar | Daughtercard | All | 96 | Header Male Pins | 12 | 250 VDC | 8 | Through Hole Right Angle | Black | High Speed | 0.075 in | 1.9 mm | UL94 V-0 | Press-Fit | Gold | -65 ░C | 90 °C |
